what is slip ring?
slip ring is essential component that enable 360 degree continuous rotating transmission of electrical signals and power between stationary and rotating parts, it consists of a stationary and a rotating ring that contact each other with brushes or rollers connected to the stationary ring. The rotating ring conducts electrical signals and power from the stationary ring to the assembly mounted on it, thus ensuring uninterrupted connectivity between stationary and rotating parts.
The primary function of electric slip rings is to transfer electrical signals and power between two or more rotating parts without tangling or damaging wires that run from stationary to rotational parts. The method or mechanism of energy transfer depends on the application of slip rings. For instance, in complex equipment such as robotics, electrical slip rings need to be designed to work with specific voltage, current, frequency, and temperature requirements.

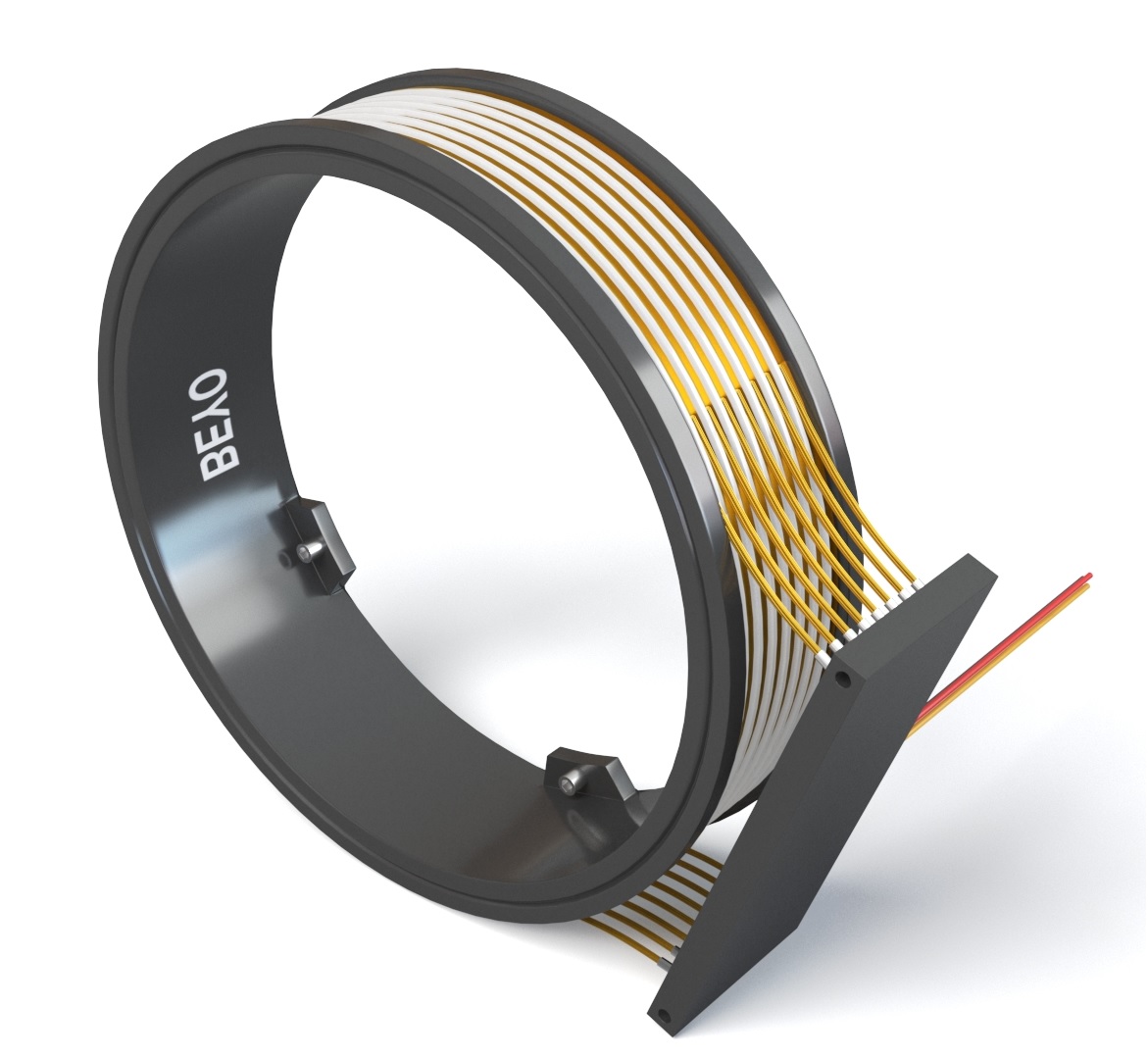

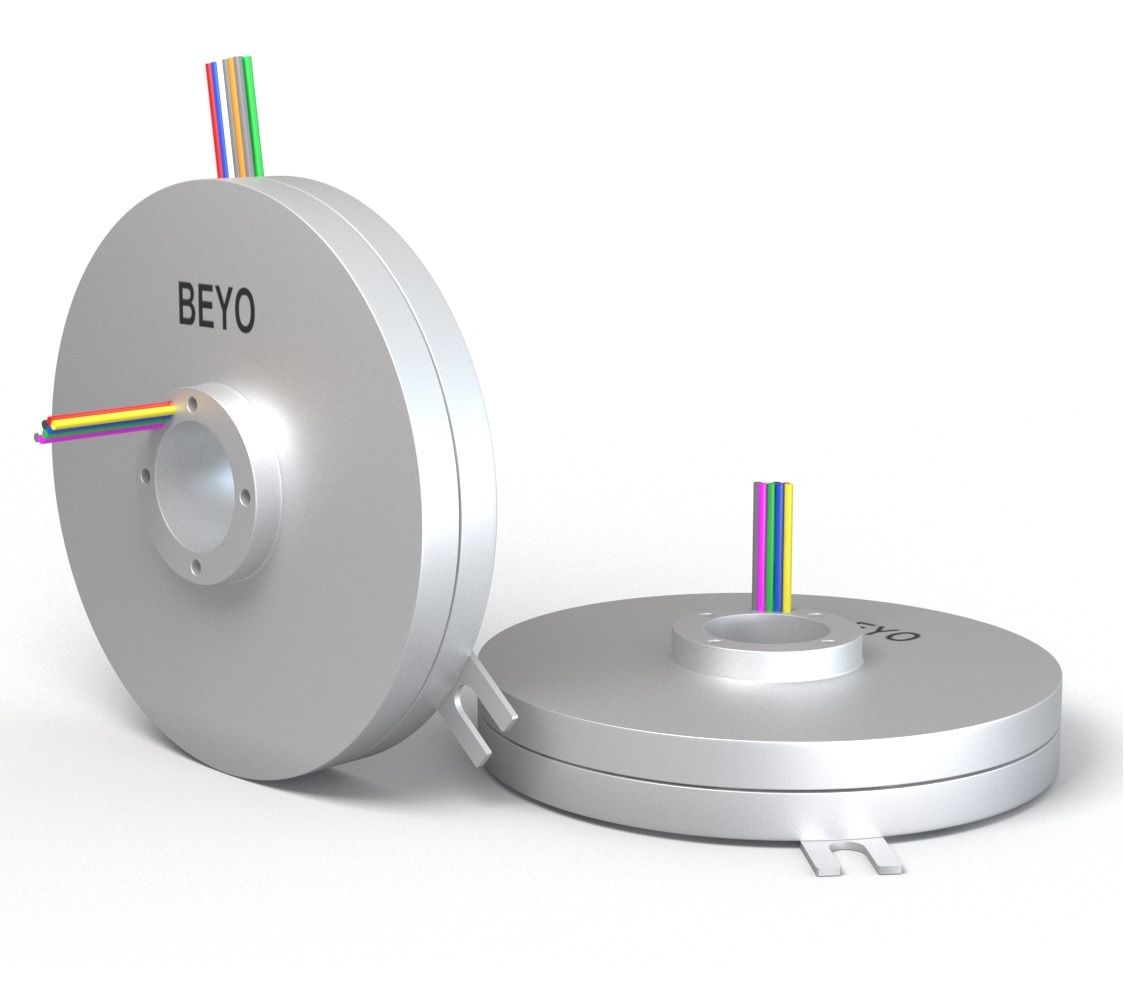

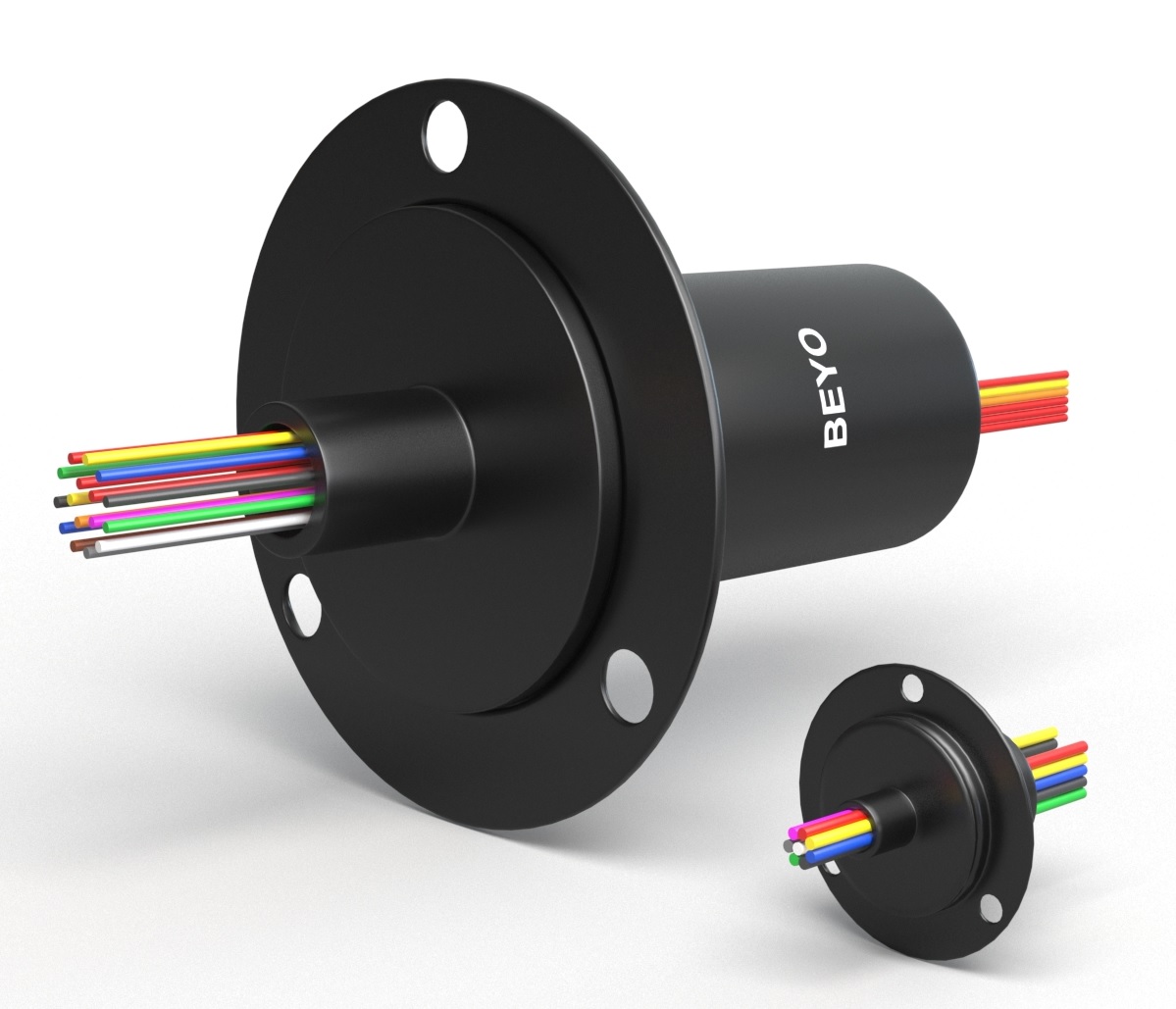

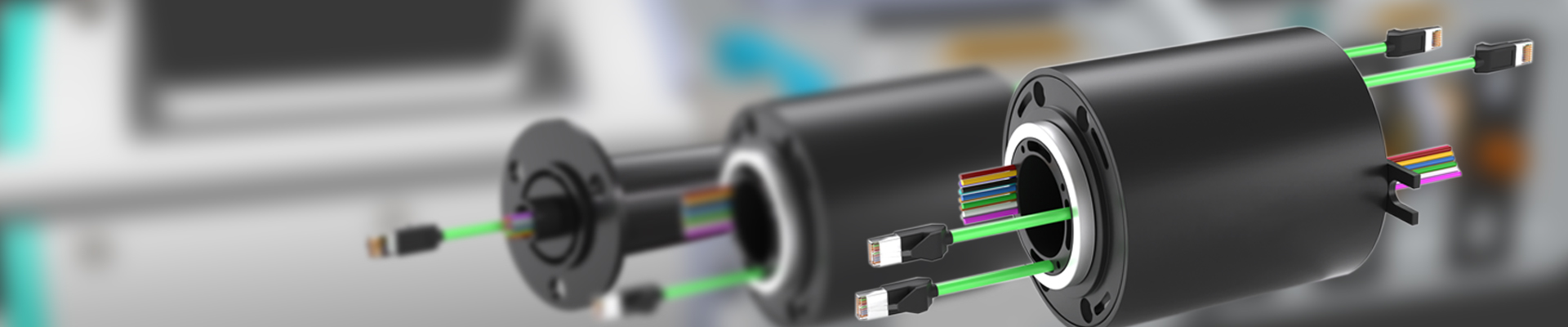

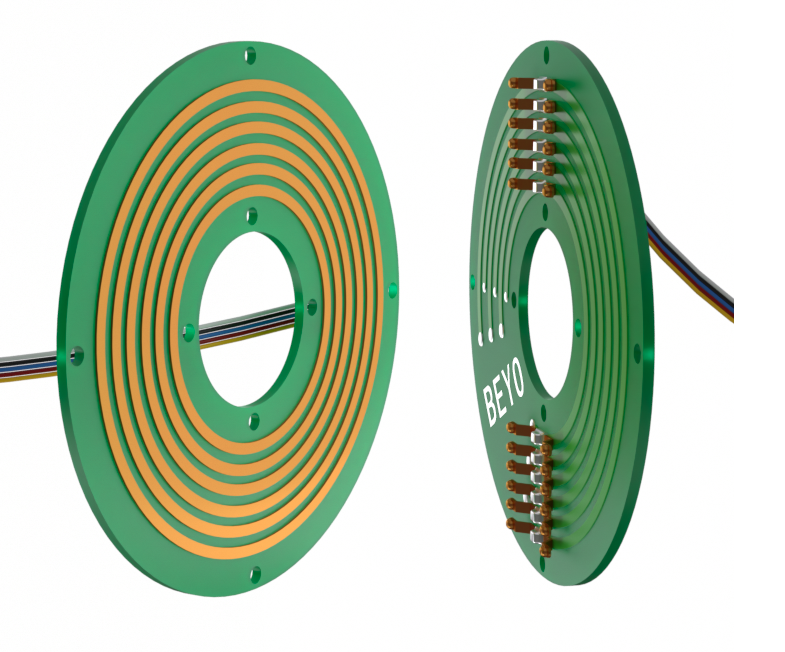

Slip rings are available in various configurations to meet varied application requirements. Some of the common configurations include capsule slip rings, through hole slip rings, pancake slip rings,separate slip rings, fiber optic slip rings, and RF rotary joints. capsule slip rings are ideal where limited space is available because they are tiny but efficient. Pancake or flat slip rings are used where low height is necessary, and also they are some of the most commonly used slip rings. Fiber optic slip rings are used where the transfer of non-electric signals is necessary, while RF rotary joints are used where high-frequency data transmission is a requirement.
The benefits of using slip ring are numerous. Besides delivering uninterrupted power and signal transmission, slip rings eliminate wire tangling, reduce friction, and wear between rotating contacts. Additionally, electric slip rings are easy to install, maintain, and replace when need be.
In conclusion, Electric slip rings play a critical role in various applications, By choosing a right slip ring configuration, BEYO sliprings can improve your system efficiency and prolong your equipment’s lifespan.
Slip ring is an electromechanical device used to transfer electrical signals,power,data and fluid from a stationary structure to a rotating structure.It allows continuous and interrupted rotation of the rotating part while maintaining a connection with the stationary part.
Slip rings are primarily used in a wide range of equipment and systems that involve continuous rotation.Some of the main equipment and industries where slip rings find applications include: Cable reels, Packaging,Rotary table, Wind turbine, Machine tools, Automatic machines, Exhibit / display equipment, Medical, Pharmaceutical equipment,Robotics,Radar systems and etc.,

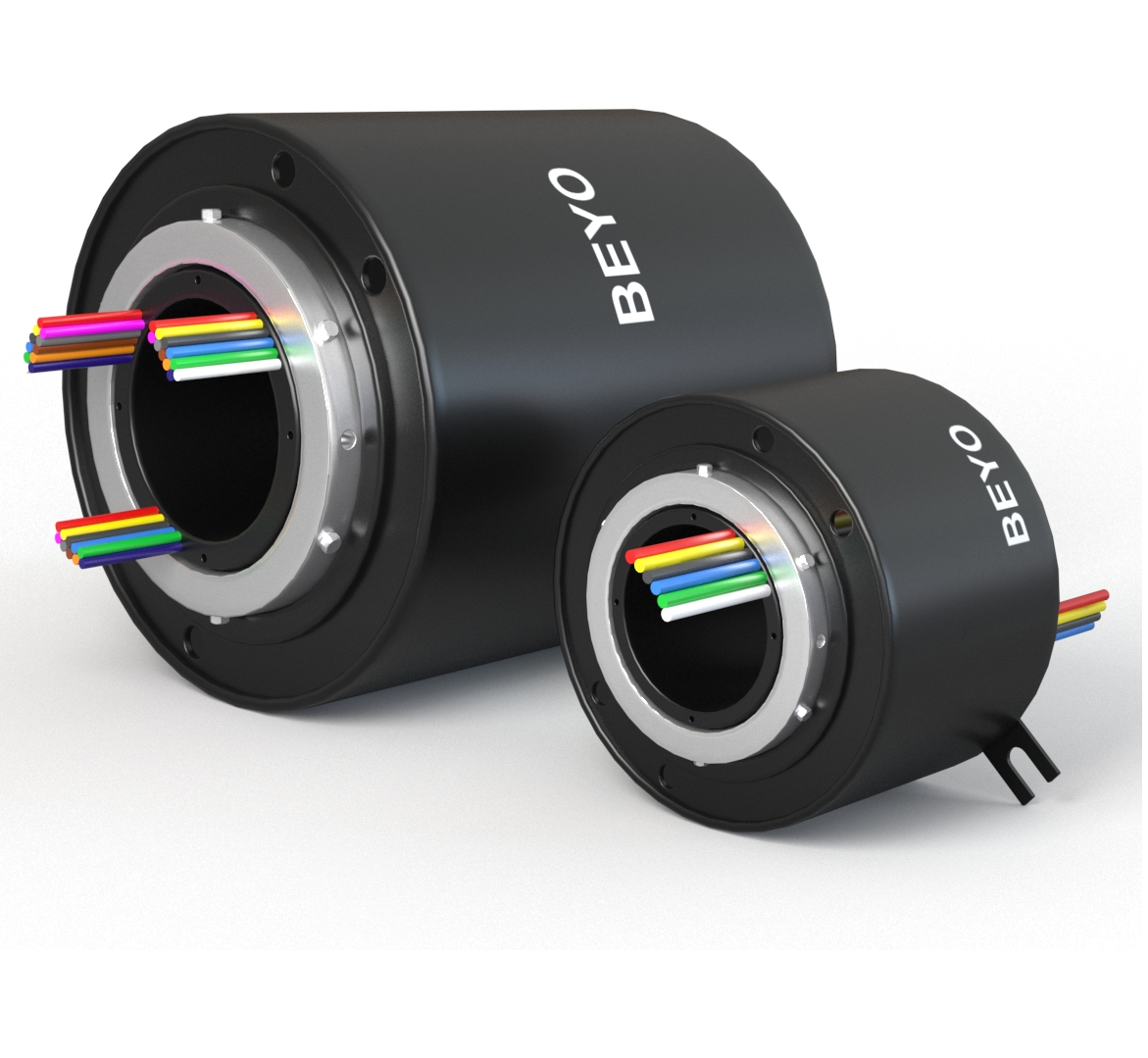

Yes, we’ve prepare all the spare parts for standard models(through bore slip slips,capsule slip rings, miniature slip rings,Ethernet slip ring) in stock, we will take about 3~5 days to assemble the slip ring.
It depends on the complexity of the design, normally the lead time for custom slip ring takes about 3~4 weeks.
What is your highest rotation speed?
Beyo Transfer’s standard models working speed is 200~300rpm, if you need high speed reach 5000rpm, please contact one of our Sales Support Representative to discuss your electrical requirements in detail.
Beyo Transfer’s BSW series is waterproof/dustproof slip ring, please contact one of our Sales Support Representative to get the brochure for waterproof/dustproof slip ring.
Flange connection
1. Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
Shaft connection
1. Position the slip ring in the desired location and equally tighten both set screws to the shaft on each end of the union.
Position a screw or dowel (not supplied) in the anti-rotation tab.
Yes, most of our standard models can combine multiple circuits to get higher current in the slip ring. Kindly reach out one of our Sales Support Representative for more in-depth understanding of your specific application requirements.

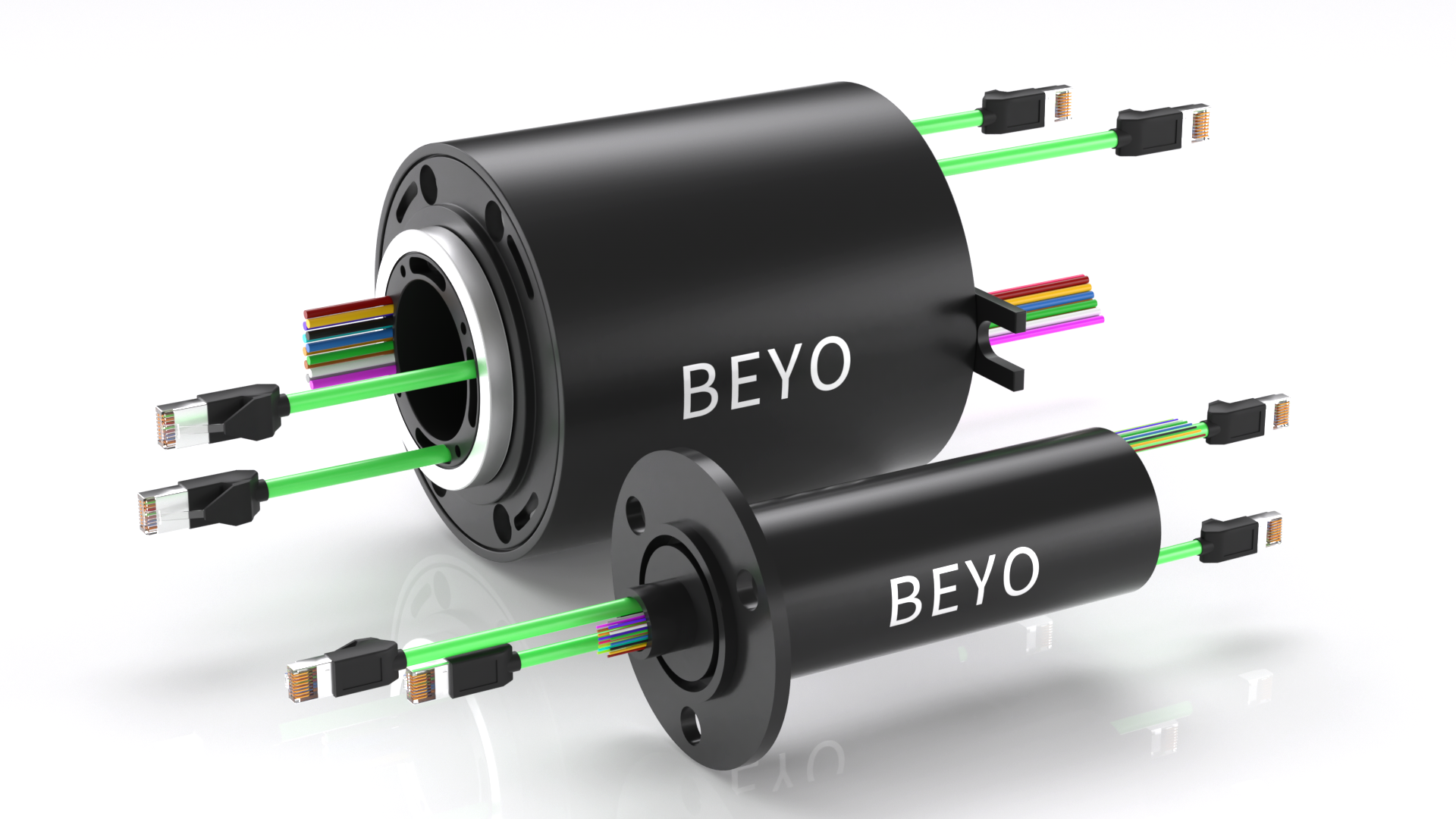

Yes, Our standard slip rings and customized slip rings can run Profibus/EtherCAT/USB/Cat5/Cat6. Kindly contact our Sales Support Representative to discuss your electrical requirements in detail.
All Ethernet cables are terminated with Registered Jack 45 (RJ45) connectors.
Yes, cable lead length can be tailored according to your specific requirement, Kindly contact our Sales Support Representative to discuss your electrical requirements in detail.
Wire gauge varies by product and current. Generally, 1 amp are 28 AWG, 2 amps are 26 AWG, 5 amps are 22 AWG, 10 amps are 16 AWG, 15 amps are 16 AWG,15 amps are 14 AWG,25 amps are 12 AWG,30 amps are 10 AWG,50 amps are 8 AWG,
Yes, our combine RF slip ring can transfer electrical power and RF signal. Kindly contact our Sales Support Representative to discuss your electrical requirements in detail.
The working temperature for our standard model slip rings are -20℃~+80℃, the customized solution can reach -40℃~+200℃. Kindly contact one of our Sales Support Representative to discuss your electrical requirements in detail.
To discuss quantity price breaks, Kindly contact one of our Sales Support Representative to discuss your electrical requirements in detail.
Innovative technology and sophisticated experience, provide a range of slip rings and rotary joints, we are dedicated to provides the best & competitive solutions to valued customers.
