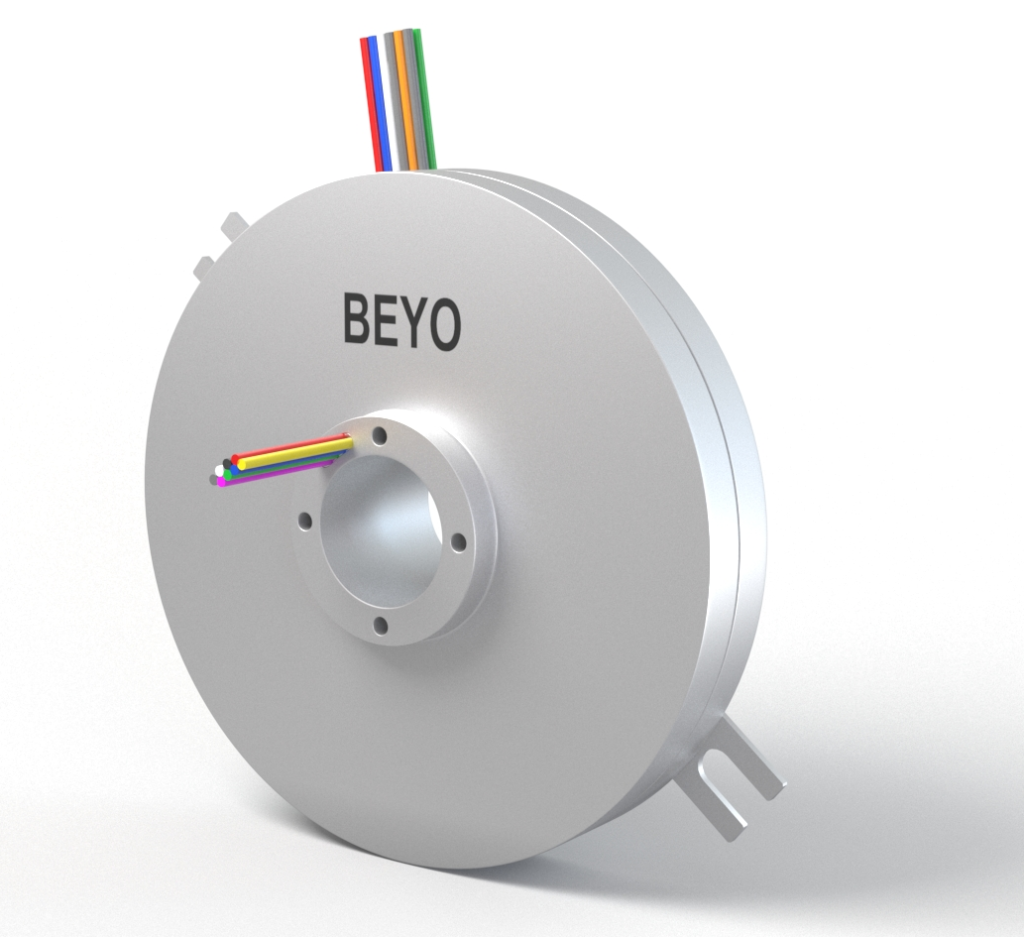

What is a pancake slip ring?

Pancake slip ring is a kind of electrical slip rings, sometimes we also called flat slip ring or disc slip ring. Pancake slip rings are specialized device used to transmit electrical signals and power between stationary and rotating parts of a system when there has a limited diameter for height installation.

There are two parts for electrical pancake slip rings, ring part and brush part. The ring part is a circuit board with ultra-thick copper layer, and then copper plating and hard gold plating to ensure high stability, low torque, free-maintenance and wear resistance features. Pancake slip rings normally applications in various industries, such as CT, crane, display table, LED rotating light ect., They enable the transmission of signals such as power, data, video, and control signals across the rotating interface.

BEYO TRANSFER’s PCB series are design for limited space installation, we have a wide range standard models from ID 12.7mm~50mm with height 20~25mm flat slip rings which can transmit 1~24 channels power ring and signal ring. BEYO TRANSFER is not only offer standard models PCB slip ring but can be customized according to your actual demand as well. Contact with us to create your most suitable solution for your device.
