BST Series

Through bore slip rings

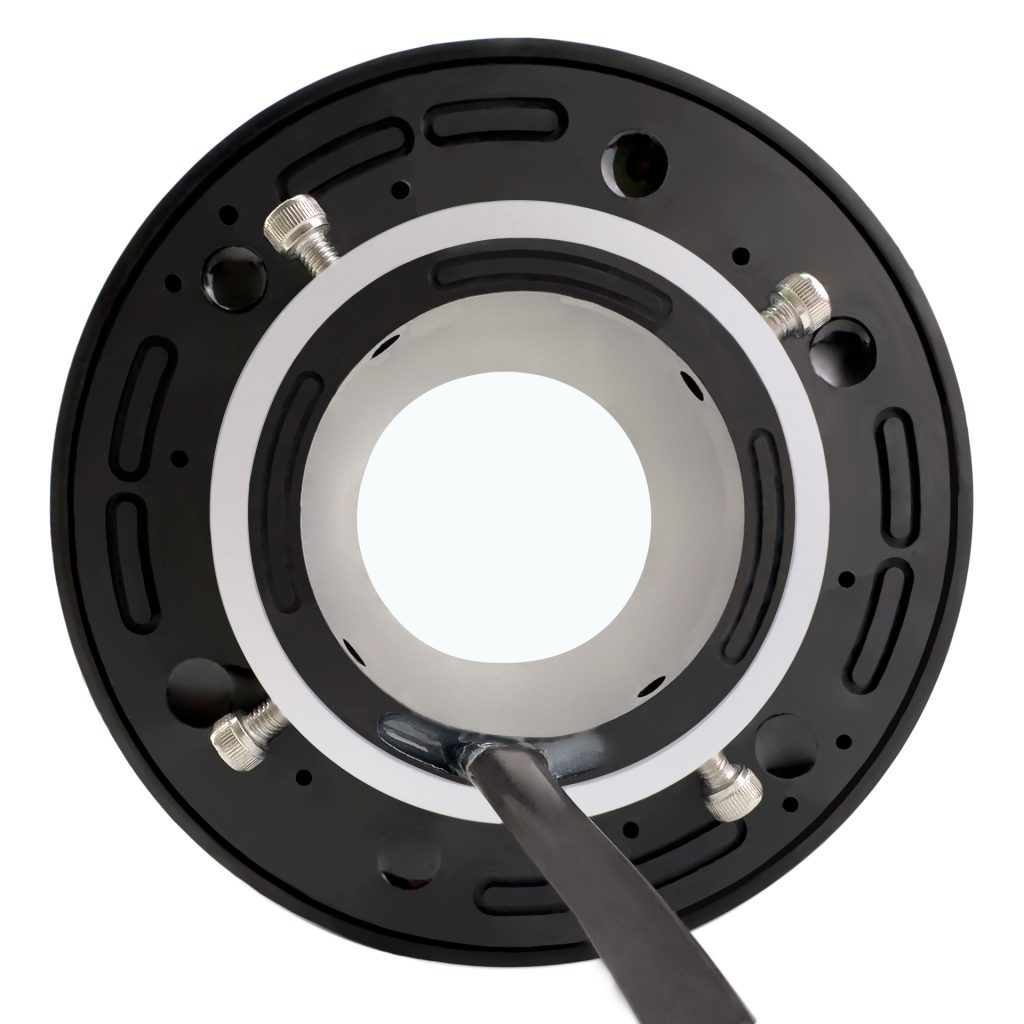

BST100203

Circuits: 1~96
ID: 100mm
OD: 203mm
Voltage: 0~690VAC/VDC
Speed: 0~600rpm

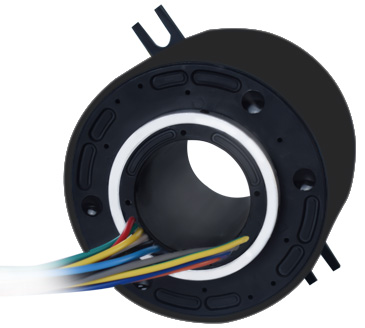

BST120250

Circuits: 1~96
ID: 120mm
OD: 250mm
Voltage: 0~690VAC/VDC
Speed: 0~600rpm

BST150300

Circuits: 1~96
ID: 150mm
OD: 300mm
Voltage: 0~690VAC/VDC
Speed: 0~600rpm

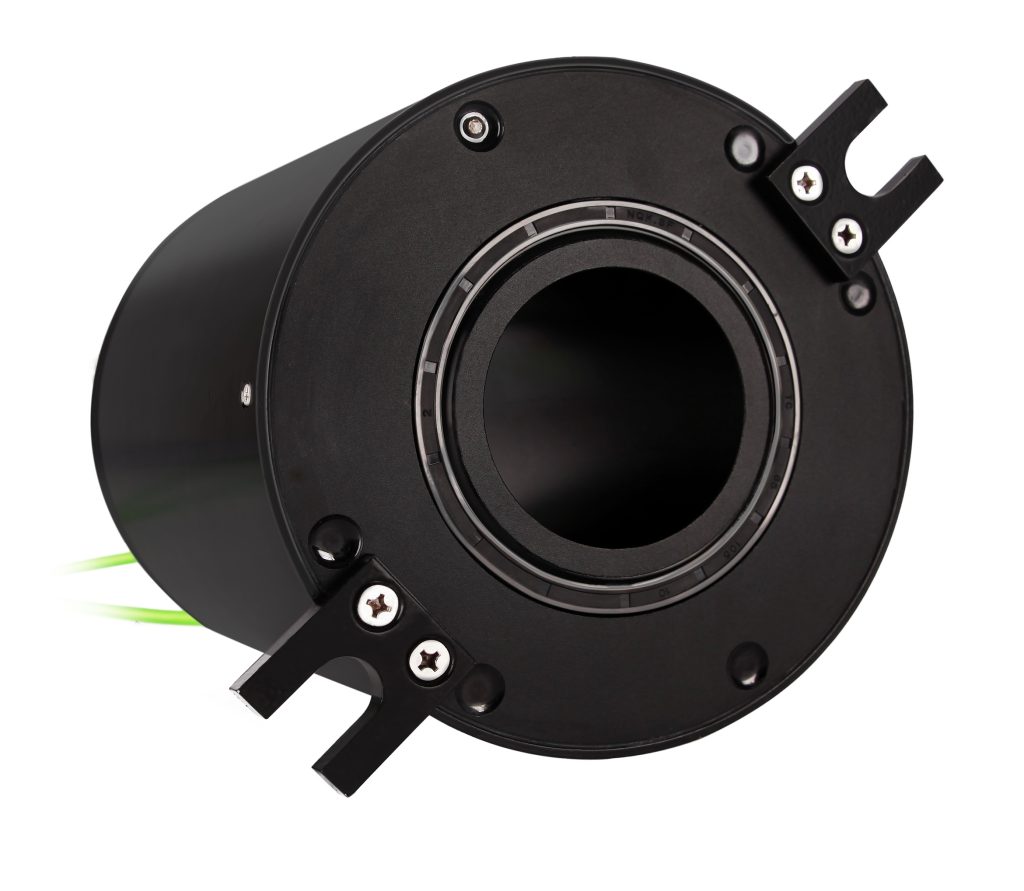

BST180332

Circuits: 1~96
ID: 180mm
OD: 332mm
Voltage: 0~690VAC/VDC
Speed: 0~600rpm

BST200350

Circuits: 1~96
ID: 200mm
OD: 350mm
Voltage: 0~690VAC/VDC
Speed: 0~600rpm

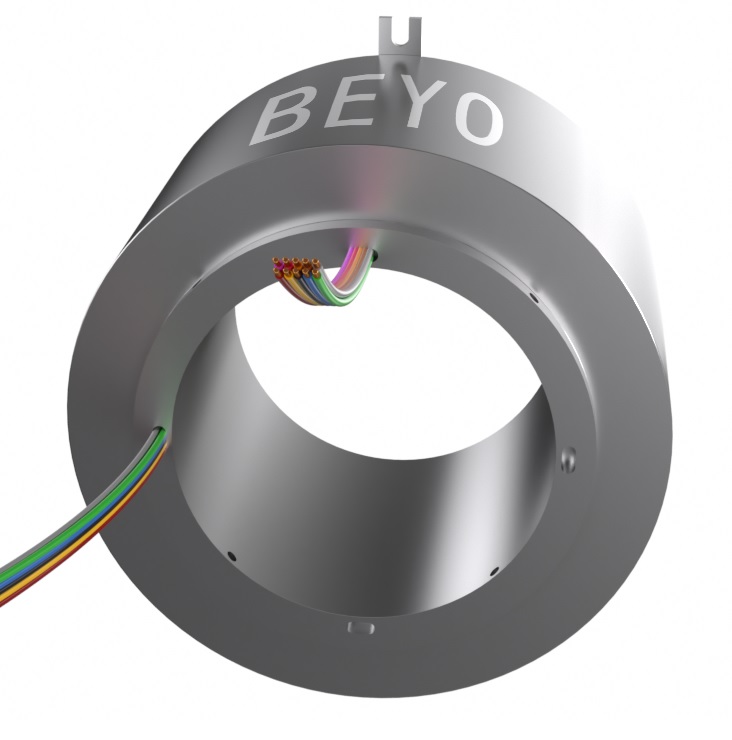

BST250407

Circuits: 1~96
ID: 250mm
OD: 407mm
Voltage: 0~690VAC/VDC
Speed: 0~600rpm

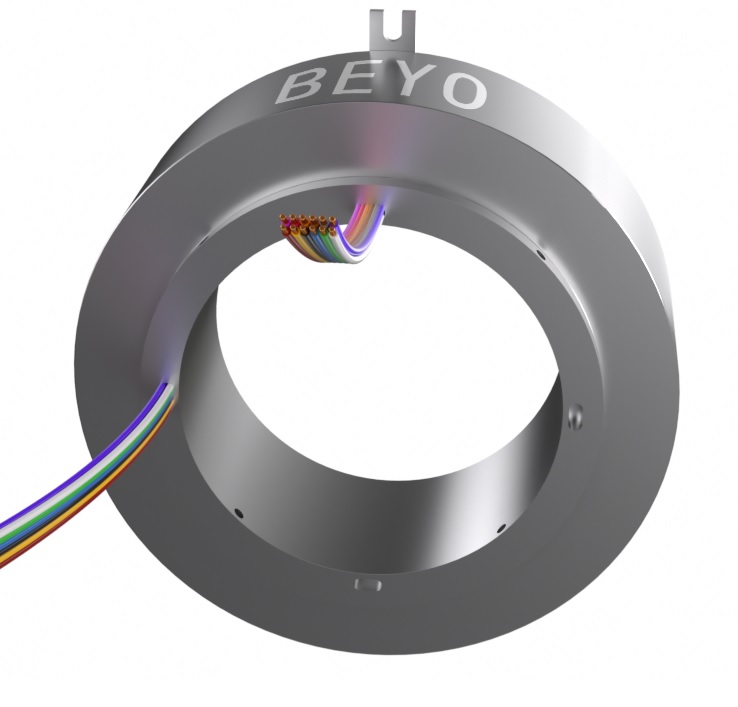

BST300490

Circuits: 1~96
ID: 300mm
OD: 490mm
Voltage: 0~690VAC/VDC
Speed: 0~600rpm

BST400632

Circuits: 1~96
ID: 400mm
OD: 632mm
Voltage: 0~690VAC/VDC
Speed: 0~600rpm

What is through bore slip ring?

A through bore slip ring is used for transmitting electrical signals and power between a stationary and a rotating component. The through-hole slip ring allows for 360 degree unrestrained rotations of the rotor without any interference or interruption in the electrical connections.

A through hole slip ring is a kind of slip ring with a hole in center, also known as through bore slip ring, this hollow bore allows other components, such as shafts, wires, or tubes, to pass through it, enabling them to rotate freely along with the rotating component. The construction of a through-hole slip ring involves several main components including brushes, rings, conductive paths, insulation materials, bearing and a housing to enclose and protect the internal components. As per different lifespan requirements, Beyotransfer provides precious contact material and gold to gold contact material to meet your application.

Through-hole slip rings can transmit power and wide range of signals, including data, video, and audio. Moreover, through-hole slip rings provide a compact and space-saving solution, enabling efficient design and installation in complex systems. The applications of through bore slip rings are commonly used in cable reel, wind turbines, robotics, packaging machinery, medical equipment, surveillance systems, radar systems etc.,

Customer requirements drive us improving to perfect for a win-win situation
