Parameters	Values
No. Of Channels	1 channel
Wavelength range	650-1650nm
Insertion loss	＜3dB(typical:1-2dB)
Insertion loss ripple	±0.5 to 1 dB
Return loss	＞45dB
Crosstalk	＞50dB(typical:63dB)
Maximum speed	10,000 rpm
Working temperature	-40 to 65℃
Storage temperature	-45 to 75℃
Housing material	Stainless steel
Fiber type	9/125μm , 50/125μm or 62.5/125μm
Connector	FC, ST, SC or LC
Estimated life cycle	500 million circles(depending on speed, environmental conditions)
IP rating	IP51 to IP 65

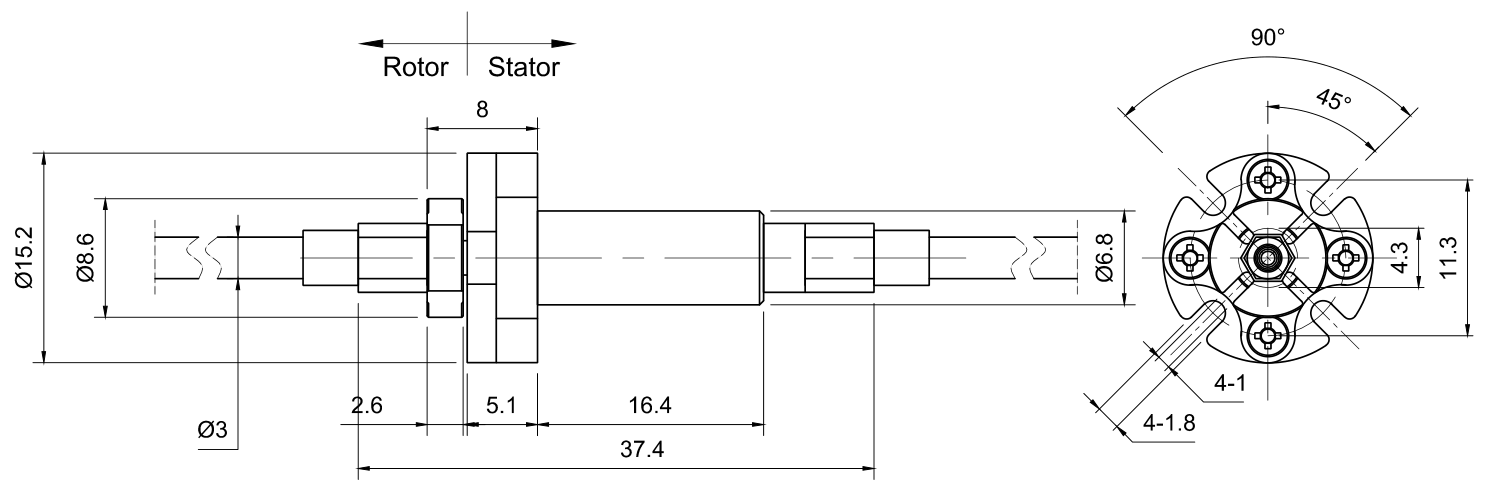

Model BFO01A is a single channel fiber optical rotary joint/fiber optic slip ring which provide reliable single mode or multi mode optical transmission across rotating interfaces.it offers low insertion loss, low crosstalk, high data rates up to 100Gbps. This model offers Long-distance transmission,low insertion loss,low crosstalk, high data rates,high bandwidth,with compact design for tight space,the operating speed up to 1,000rpm,lifetime up to 500 million revs. Parameters likes number of channel,single mode or multi mode,optic fiber wavelength,connector,IP grade may be specified base on customer requirement.

• Low Insertion Loss
• High Return Loss
• Wide Operating Wavelength Range
• High Data Rate Capability
• Low Crosstalk
• Compact and Lightweight Design
• Durable Construction
• Long Operational Life
• Low Maintenance
• Compatibility with Different Fiber Type
• Seamless Integration
• Customization Configurations

• Number of channel
• Single mode or multi mode
• IP grade
• Connector
• Optic fiber wavelength
• Support to integrate with electrical slip ring

• Wind turbine
• Radar Systems
• Medical Imaging
• Military Systems
• Telecommunications
• Underwater Vehicles
• Aerospace and Aviation
• Robotics and Automation
• Broadcasting and Surveillance
• Satellite Communication Systems
