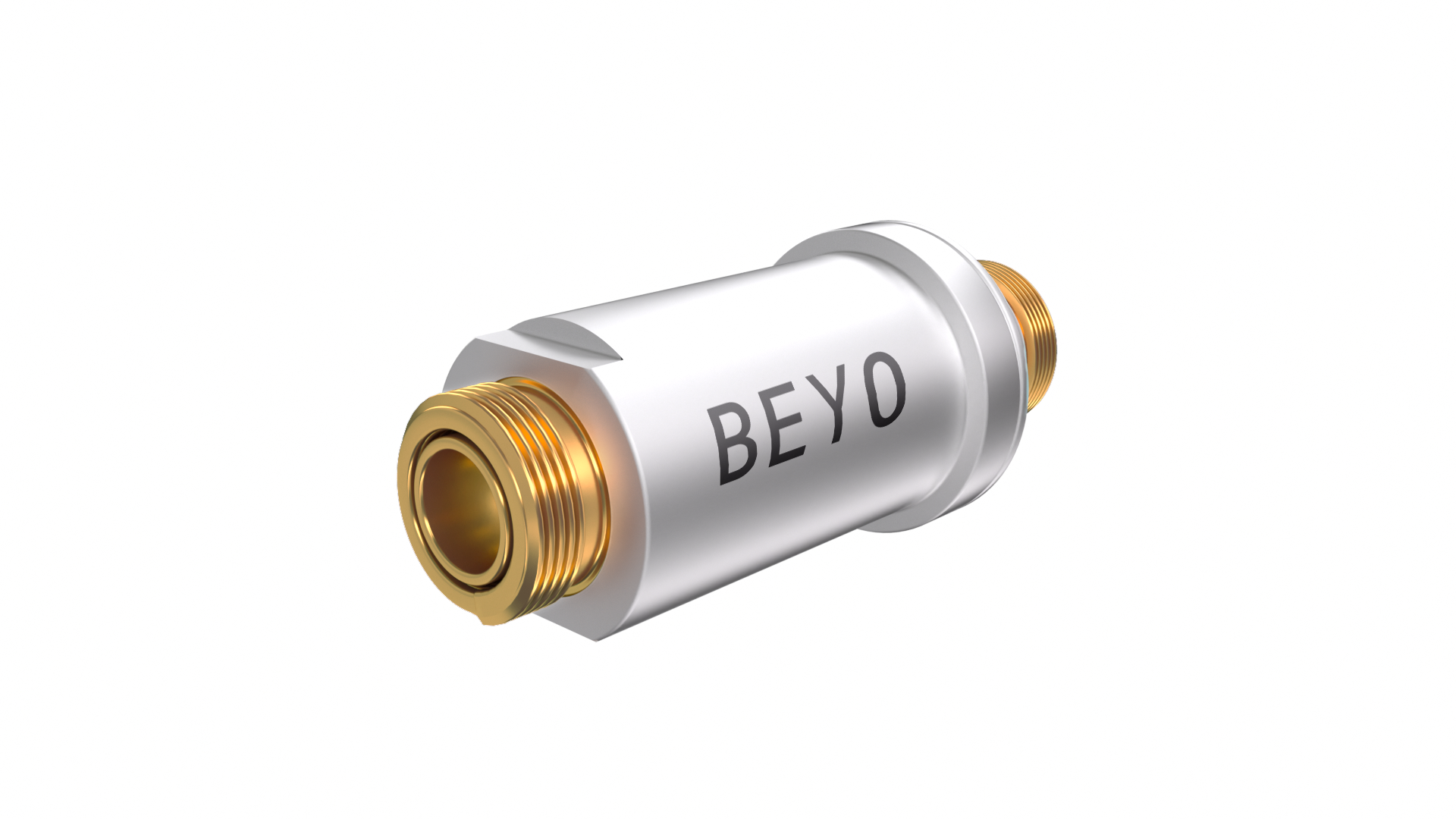

BRF113-3.4G

BRF113-3.4G

  Model BRF113-3.4G
  Type of connector 7/16-F(50Ω)
  Frequency range 2.8-3.4GHz
  Peak power,max 50KW
  Average power,max 850W
  VSWR,max 1.06
  VSWR, WOW 0.05
  Insertion loss,max 0.1dB
  Insertion loss WOW 0.01dB
  Phase variation over rotation,max 1deg
  Working speed 60rpm
  Lifetime 5 million revs
  Starting torque,max 0.65Nm@normal temperature
  Rotating torque,max 0.5Nm@normal temperature
  Material Copper alloy
  Surface treatment Ternary Alloy Three-partalloy plated
  Working temperature  -400C~+700C
  Working humidity 95%
  Storage temperature  -550C~+850C
  Storage humidity 95%
  IP level IP54
  Weight (approximately) 0.9kg

Our single-channel coaxial rotary joint is a cutting-edge solution in the realm of RF rotary joints, specifically designed to meet the demanding requirements of modern communication systems, radar applications, and rotary joint radar antennas. This product stands out for several key advantages and distinctive features.

Product Advantages:

High-Frequency Performance: Our single-channel coaxial rotary joint excels in high-frequency signal transmission, ensuring minimal signal loss and exceptional signal integrity. It is optimized to handle the most critical RF applications.

Precision Engineering: This RF slip ring incorporates precision engineering and advanced coaxial technology, resulting in a compact and efficient design that can be seamlessly integrated into various systems.

Reliability: With robust construction and reliable sealing mechanisms, our coaxial slip ring ensures long-term durability and consistent performance, even in challenging environmental conditions.

Key Features:

Single-Channel Design: Tailored for applications requiring a single-channel solution, our coaxial rotary joint provides reliable connectivity for critical data transmission.

Compatibility: It is compatible with a wide range of RF systems, making it a versatile choice for radar rotary joints, communication systems, and more.

Low Insertion Loss: The low insertion loss of our single-channel coaxial rotary joint minimizes signal attenuation, maintaining signal strength throughout the transmission.

Ease of Integration: Its compact size and standardized interfaces facilitate easy integration into existing systems, reducing installation time and complexity.

Beyo Transfer’s single-channel coaxial rotary joint is the ideal choice for applications demanding high-frequency performance, precision, reliability, and compatibility. Whether you’re in the field of radar technology or require seamless RF signal transmission, this product stands as a dependable solution for your needs.
