BRF203-4.5G

BRF203-4.5G

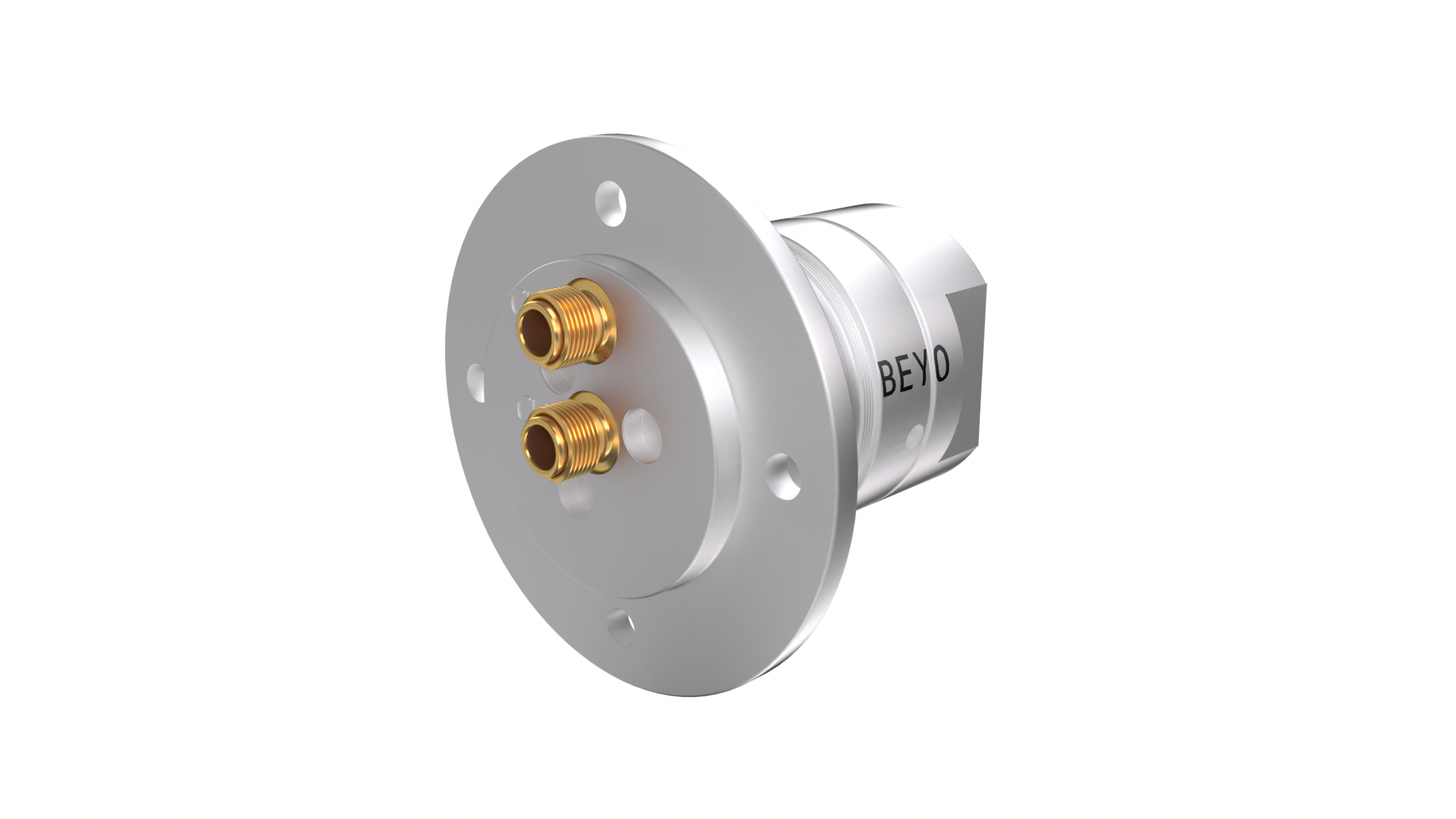

  Model BRF203-4.5G
  Number of channel 2 channels
Channel 1 Channel 2
  Type of connector SMA-F(50Ω) SMA-F(50Ω)
  Frequency range DC-4.5GHz DC-4.5GHz
  Peak power,max 1KW 1KW
  Average power,max 100W@DC-2GHz 10W
60W@2GHz-4.5GHz
  VSWR,max 1.2 1.5
  VSWR, WOW 0.05 0.2
  Insertion loss,max 0.25dB 0.50dB
  Insertion loss WOW 0.05dB 0.15dB
  Isolation,min 50dB 50dB
  Phase variation over rotation,max 1deg 4deg
  Working speed 30rpm
  Lifetime 5 million revs
  Starting torque,max 0.05Nm@normal temperature
  Rotating torque,max 0.05Nm@normal temperature
  Material Aluminum alloy
  Surface treatment Chromate conversion coat per ML-C-5541
  Working temperature  -400C~+700C
  Working humidity 95%
  Storage temperature  -550C~+850C
  Storage humidity 95%
  IP level IP60
  Weight (approximately) 130g

Our multi-channel coaxial rotary joint is at the forefront of RF rotary joint technology, purpose-built to meet the exacting demands of contemporary communication and radar systems, especially in radar rotary joint applications and rotary joint radar antennas. It boasts a range of distinct advantages and features.

Product Advantages:

Enhanced Channel Capacity: Offering multiple channels, our multi-channel coaxial slip ring provides seamless connectivity for numerous data streams, making it invaluable in complex RF systems.

Optimized Signal Integrity: With low insertion loss and exceptional return loss characteristics, this RF slip ring guarantees high-fidelity signal transmission, preserving the strength and integrity of RF signals.

Durable and Dependable: Crafted with precision engineering and robust materials, our coaxial rotary joint ensures longevity and reliability in diverse environmental conditions.

Key Features:

Multi-Channel Capability: Tailored for applications requiring simultaneous transmission across multiple channels, this coaxial rotary joint is indispensable in systems with complex data requirements.

Wide Application Compatibility: It seamlessly integrates with various RF systems, making it the go-to choice for radar rotary joints, communication arrays, and more.

Efficient Design: Compact and streamlined, our multi-channel coaxial rotary joint is engineered for straightforward integration, reducing installation complexities and ensuring swift deployment.

Beyo Transfer’s multi-channel coaxial rotary joint sets a new standard in high-capacity, high-fidelity RF signal transmission. Whether applied in radar technology or complex communication systems, its advanced features and capabilities make it an indispensable component for cutting-edge applications.
