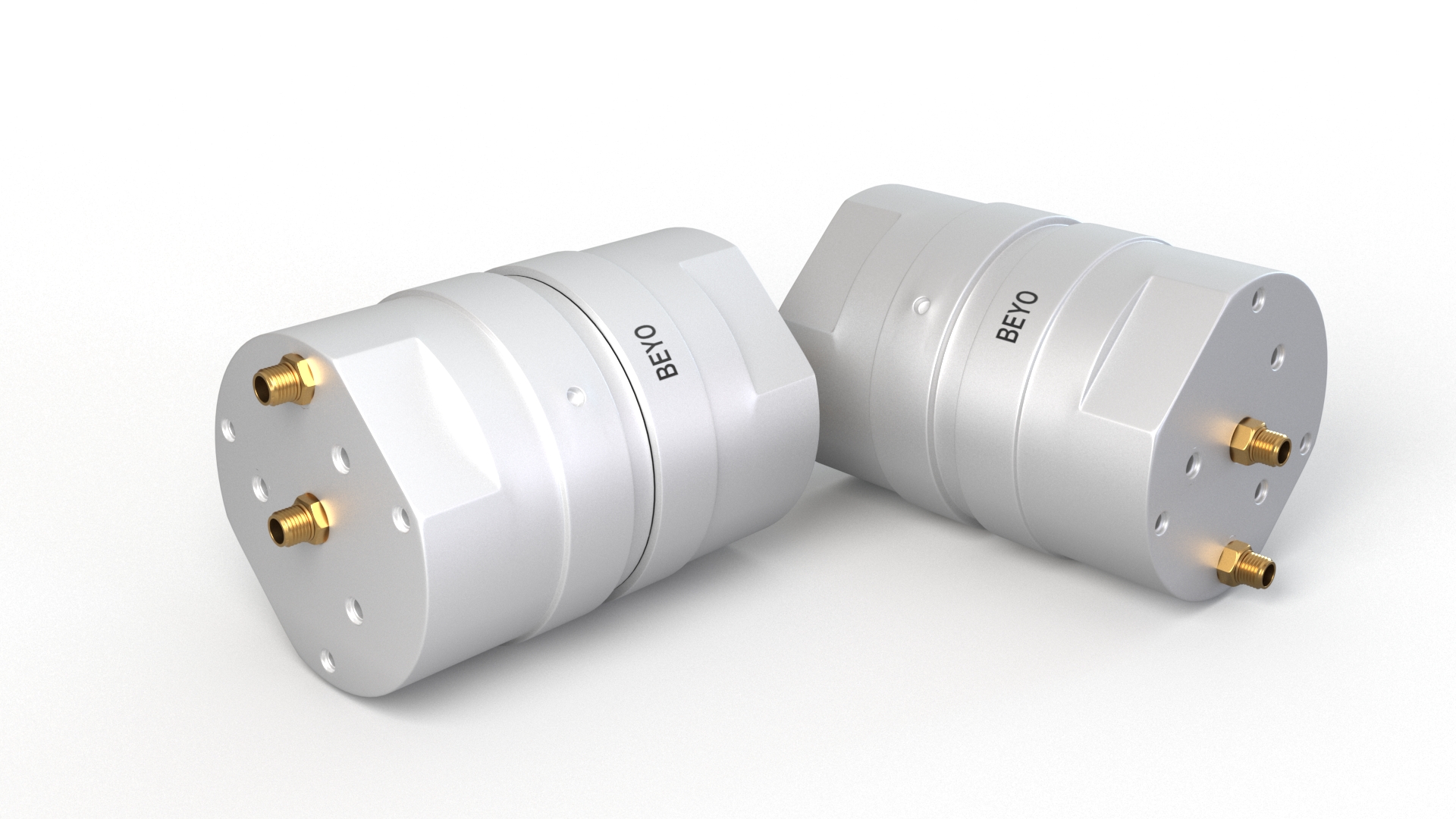

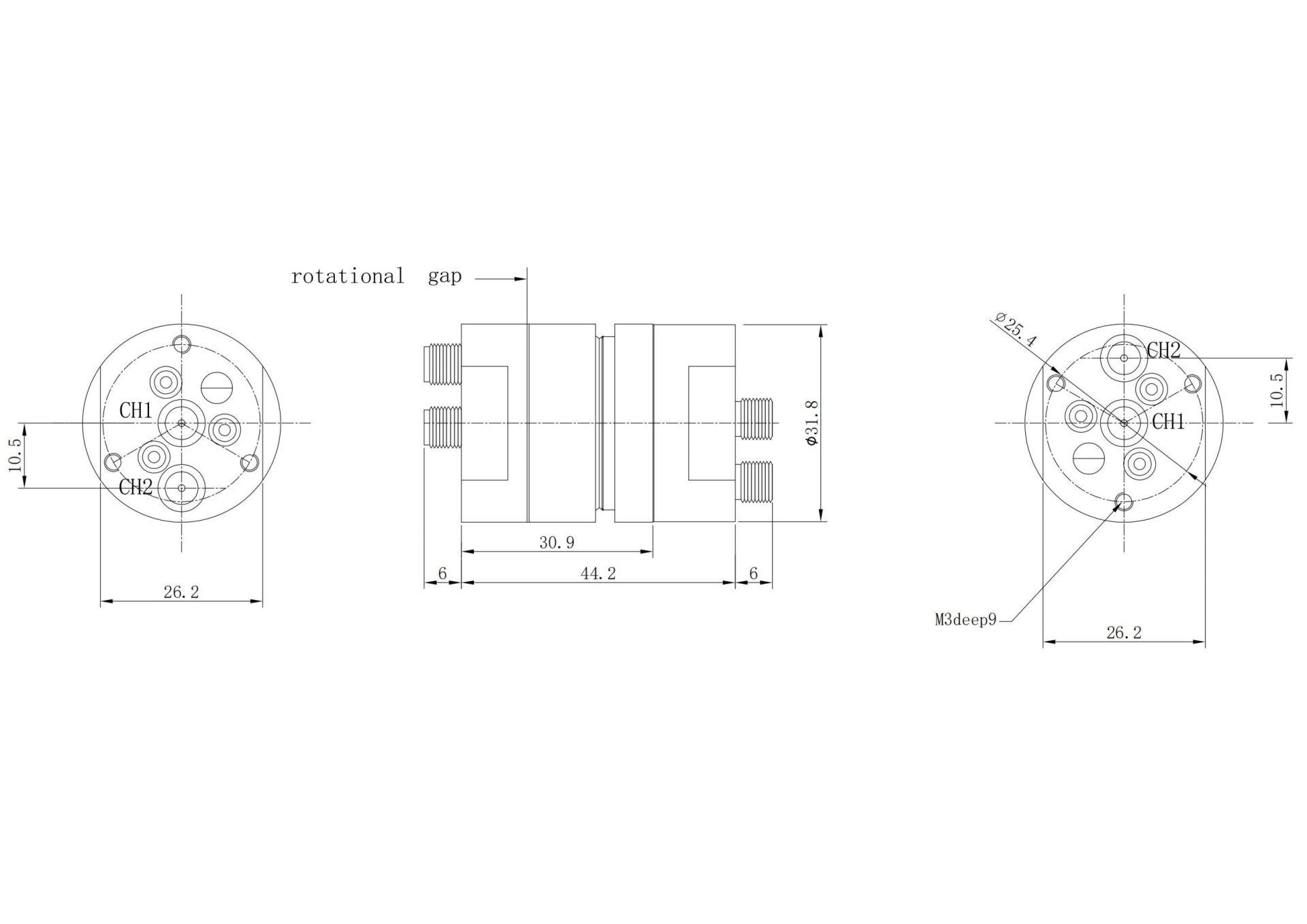

| Model | BRF209-4.5G | |
| Number of channel | 2 channels | |
| Channel 1 | Channel 2 | |
| Type of connector | SMA-F(50Ω) | SMA-F(50Ω) |
| Frequency range | DC-4.5GHz | DC-4.5GHz |
| Peak power,max | 1KW | 1KW |
| Average power,max | 100W@DC-2GHz | 10W |
| 60W@2GHz-4.5GHz | ||
| VSWR,max | 1.2 | 1.5 |
| VSWR, WOW | 0.05 | 0.2 |
| Insertion loss,max | 0.25dB | 0.4dB |
| Insertion loss WOW | 0.05dB | 0.15dB |
| Isolation,min | 50dB | 50dB |
| Phase variation over rotation,max | 1deg | 4deg |
| Working speed | 30rpm | |
| Lifetime | 5 million revs | |
| Starting torque,max | 0.05Nm@normal temperature | |
| Rotating torque,max | 0.05Nm@normal temperature | |
| Material | Aluminum alloy | |
| Surface treatment | Chromate conversion coat per ML-C-5541 | |
| Working temperature | -400C~+700C | |
| Working humidity | 95% | |
| Storage temperature | -550C~+850C | |
| Storage humidity | 95% | |
| IP level | IP60 | |
| Weight (approximately) | 130g |
