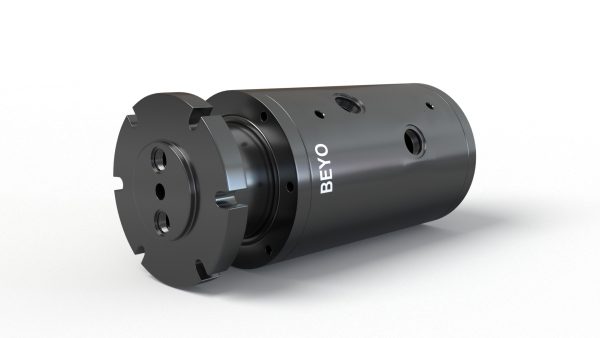

BRH2

BRH2

  • Support G3 / 8, G1 / 2, G3 / 4, G1 thread for pneumatic
  • Dynamic sealing technology
  • With NSK high precision bearing
  • Abrasion resistant, low torque, high speed
  • Can be transfer 1~16 passages
Mechanical Data
Max. Speed 2m/s
Max. Pressure 35Mpa
Working Temperature Max. 220℃
Media Water, vacuum, hydraulic oil
Housing Material Stainless steel
Weight 7.5kgs

Model A B D E F G H I L M N P R S T V Z X
BRP2-G3/8 97 G3/8 10 213 99 34 16 5 12 77 29 30 10 76 55 34 33 8.5
BRH series rotary joints are specifically engineered to withstand and effectively transmit fluids or gases under high pressure conditions with low working speed, available in 2,4,6 passages to transmit pressures up to 35Mpa. BRH series are designed with robust materials, precise sealing mechanisms and advanced engineering techniques to ensure reliable performance and prevent leaks or pressure loss.

  • Factory Automation
  • Heavy Equipment
  • Machine Tool
  • Food & Beverage
  • Plastic Molding
  • Oil & Gas
  • Marine
  • Defense
  • Medical
  • Aerospace
