Electrical Data			Mechanical Data
Rated Voltage	Power: 0~240 VAC/VDC	Signal: 0~440 VAC/VDC	Max. Speed	400RPM
Insulation Resistance	Power: ≥1000MΩ/500VDC	Signal: ≥1000MΩ/500VDC	Max. Pressure	10Bar
Insulation Strength	500VAC@50Hz, 60s		Working Temperature	-30℃~+80℃
Lead Wires	Standard (adjustable)		Working Humidity	0~85% RH
Lead Length	Standard 300mm (adjustable)		Housing Material	Aluminum Alloy
Electrical Noise	＜0.01Ω		Protection Grade	IP51

  Model List

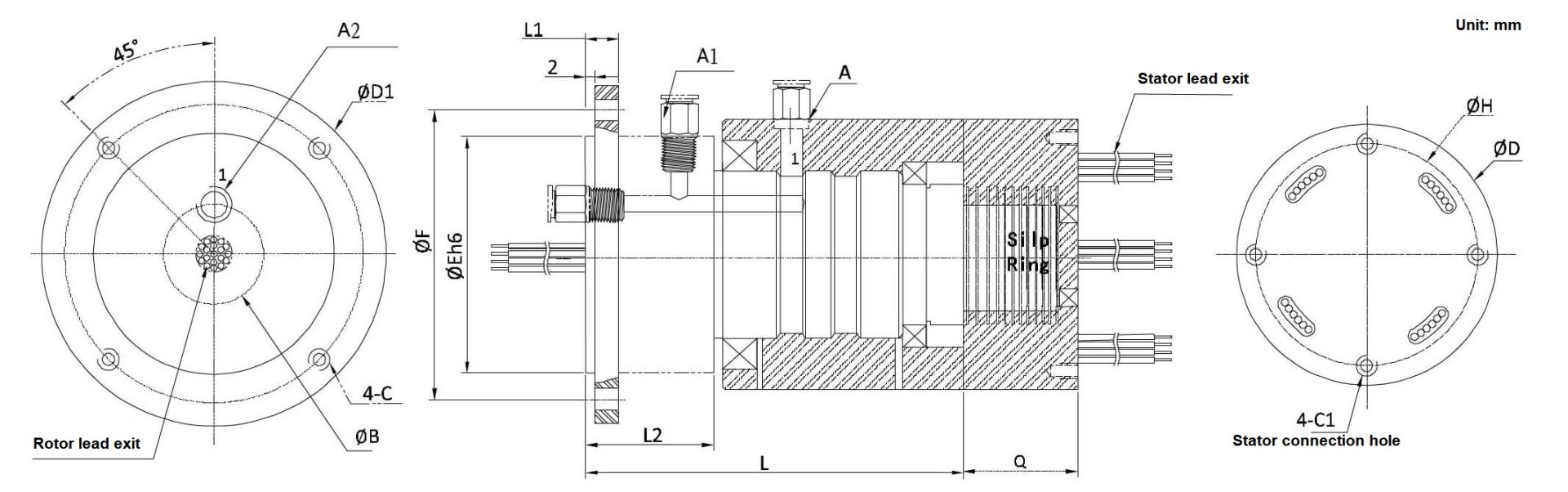

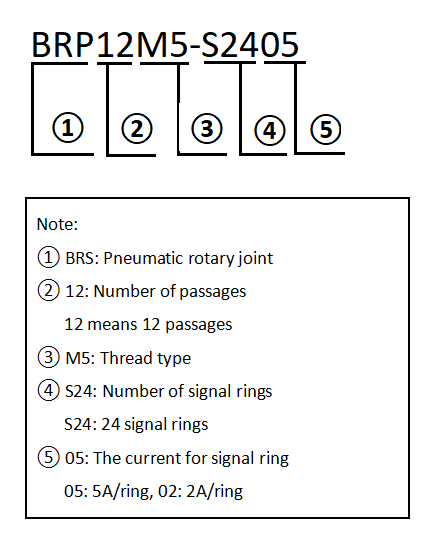

Model	A	A1	A2	B	C	C1	D	D1	E	F	H	L	L1	L2	Q	Circuits	Current
BRP1M5-S605	M5	M5	M5	13	M5	M5	49	49	30	40	40	55	7	18	36	6	5A
BRP1M5-S1205	M5	M5	M5	17	M5	M5	59	59	39	50	50	55	7	18	66	12	5A
BRP1M5-S1802	M5	M5	M5	17	M5	M5	59	59	39	50	50	55	7	18	66	18	2A
BRP1M5-S2402	M5	M5	M5	17	M5	M5	59	59	39	50	50	55	7	18	66	24	2A
BRP1M5-S3602	M5	M5	M5	22	M5	M5	59	59	39	50	50	55	7	18	71	36	2A
BRP1M5-S5605	M5	M5	M5	22	M5	M5	59	59	39	50	50	55	7	18	91	56	2A
BRP1M5-S1805	M5	M5	M5	22	M5	M5	59	59	39	50	50	55	7	18	93	18	5A
BRP1M5-S2405	M5	M5	M5	22	M5	M5	59	59	39	50	50	55	7	18	110	24	5A
BRP1M5-S3005	M5	M5	M5	22	M5	M5	59	59	39	50	50	55	7	18	127	30	5A
BRP1M5-S3605	M5	M5	M5	22	M5	M5	59	59	39	50	50	55	7	18	147	36	5A
BRP1M5-S4205	M5	M5	M5	22	M5	M5	59	59	39	50	50	55	7	18	167	42	5A
BRP1M5-S4805	M5	M5	M5	22	M5	M5	59	59	39	50	50	55	7	18	182	48	5A
BRP1M5-S6005	M5	M5	M5	22	M5	M5	59	59	39	50	50	55	7	18	227	48	5A
BRPG1/8-S605	G1/8	G1/8	G1/8	22	M5	M5	59	59	39	50	50	75	7	29	36	6	5A
BRPG1/8-S1205	G1/8	G1/8	G1/8	22	M5	M5	59	59	39	50	50	75	7	29	66	12	5A
BRPG1/8-S1802	G1/8	G1/8	G1/8	22	M5	M5	59	59	39	50	50	75	7	29	66	18	2A
BRPG1/8-S2402	G1/8	G1/8	G1/8	22	M5	M5	59	59	39	50	50	75	7	29	66	24	2A
BRPG1/8-S3602	G1/8	G1/8	G1/8	26	M5	M5	64	64	43	55	55	75	7	29	71	36	2A
BRPG1/8-S5602	G1/8	G1/8	G1/8	26	M5	M5	64	64	43	55	55	75	7	29	92	56	2A
BRPG1/8-S1805	G1/8	G1/8	G1/8	31	M5	M5	69	69	49	60	60	75	7	29	95	18	5A
BRPG1/8-S2405	G1/8	G1/8	G1/8	31	M5	M5	69	69	49	60	60	75	7	29	112	24	5A
BRPG1/8-S3005	G1/8	G1/8	G1/8	31	M5	M5	69	69	49	60	60	75	7	29	130	30	5A
BRPG1/8-S3605	G1/8	G1/8	G1/8	31	M5	M5	69	69	49	60	60	75	7	29	150	36	5A
BRPG1/8-S4205	G1/8	G1/8	G1/8	31	M5	M5	69	69	49	60	60	75	7	29	168	42	5A
BRPG1/8-S4805	G1/8	G1/8	G1/8	31	M5	M5	69	69	49	60	60	75	7	29	183	48	5A
BRPG1/8-S6005	G1/8	G1/8	G1/8	31	M5	M5	69	69	49	60	60	75	7	29	223	60	5A
BRPG1/4-S605	G1/4	G1/4	G1/4	23	M6	M6	69	69	49	59	59	81	9	34	36	6	5A
BRPG1/4-S1205	G1/4	G1/4	G1/4	28	M6	M6	74	74	53	64	64	81	9	34	66	12	5A
BRPG1/4-S1802	G1/4	G1/4	G1/4	28	M6	M6	74	74	53	64	64	81	9	34	66	18	2A
BRPG1/4-S2402	G1/4	G1/4	G1/4	28	M6	M6	74	74	53	64	64	81	9	34	66	24	2A
BRPG1/4-S3602	G1/4	G1/4	G1/4	32	M6	M6	74	74	53	64	64	81	9	34	66	36	2A
BRPG1/4-S5602	G1/4	G1/4	G1/4	32	M6	M6	74	74	53	64	64	81	9	34	97	56	2A
BRPG1/4-S1805	G1/4	G1/4	G1/4	32	M6	M6	74	74	53	64	64	81	9	34	99	18	5A
BRPG1/4-S2405	G1/4	G1/4	G1/4	32	M6	M6	74	74	53	64	64	81	9	34	117	24	5A
BRPG1/4-S3005	G1/4	G1/4	G1/4	32	M6	M6	74	74	53	64	64	81	9	34	135	30	5A
BRPG1/4-S3605	G1/4	G1/4	G1/4	32	M6	M6	74	74	53	64	64	81	9	34	155	36	5A
BRPG1/4-S4205	G1/4	G1/4	G1/4	32	M6	M6	74	74	53	64	64	81	9	34	175	42	5A
BRPG1/4-S4805	G1/4	G1/4	G1/4	32	M6	M6	74	74	53	64	64	81	9	34	190	48	5A
BRPG1/4-S6005	G1/4	G1/4	G1/4	32	M6	M6	74	74	53	64	64	81	9	34	230	60	5A
BRPG3/8-S605	G3/8	G3/8	G3/8	27	M6	M6	84	84	64	74	74	96	9	39	35	6	5A
BRPG3/8-S1205	G3/8	G3/8	G3/8	32	M6	M6	89	89	69	79	79	96	9	39	64	12	5A
BRPG3/8-S1802	G3/8	G3/8	G3/8	32	M6	M6	89	89	69	79	79	96	9	39	64	18	2A
BRPG3/8-S2402	G3/8	G3/8	G3/8	32	M6	M6	89	89	69	79	79	96	9	39	64	24	2A
BRPG3/8-S3602	G3/8	G3/8	G3/8	32	M6	M6	89	89	69	79	79	96	9	39	70	36	2A
BRPG3/8-S5602	G3/8	G3/8	G3/8	32	M6	M6	89	89	69	79	79	96	9	39	95	56	2A
BRPG3/8-S1805	G3/8	G3/8	G3/8	37	M6	M6	94	94	74	84	84	96	9	39	100	18	5A
BRPG3/8-S2405	G3/8	G3/8	G3/8	37	M6	M6	94	94	74	84	84	96	9	39	117	24	5A
BRPG3/8-S3005	G3/8	G3/8	G3/8	37	M6	M6	94	94	74	84	84	96	9	39	135	30	5A
BRPG3/8-S3605	G3/8	G3/8	G3/8	37	M6	M6	94	94	74	84	84	96	9	39	158	36	5A
BRPG3/8-S4205	G3/8	G3/8	G3/8	37	M6	M6	94	94	74	84	84	96	9	39	174	42	5A
BRPG3/8-S4805	G3/8	G3/8	G3/8	37	M6	M6	94	94	74	84	84	96	9	39	193	48	5A
BRPG3/8-S6005	G3/8	G3/8	G3/8	37	M6	M6	94	94	74	84	84	96	9	39	233	60	5A
BRPG1/2-S605	G1/2	G1/2	G1/2	31	M6	M6	89	89	68	79	79	96	9	39	37	6	5A
BRPG1/2-S1205	G1/2	G1/2	G1/2	37	M6	M6	94	94	73	84	84	96	9	39	66	12	5A
BRPG1/2-S1802	G1/2	G1/2	G1/2	37	M6	M6	94	94	73	84	94	96	9	39	66	18	2A
BRPG1/2-S2402	G1/2	G1/2	G1/2	37	M6	M6	94	94	73	84	84	96	9	39	66	24	2A
BRPG1/2-S3602	G1/2	G1/2	G1/2	37	M6	M6	94	94	73	84	94	96	9	39	66	36	2A
BRPG1/2-S5602	G1/2	G1/2	G1/2	37	M6	M6	94	94	73	84	84	96	9	39	66	56	2A
BRPG1/2-S1805	G1/2	G1/2	G1/2	42	M6	M6	99	99	78	89	89	96	9	39	99	18	5A
BRPG1/2-S2405	G1/2	G1/2	G1/2	42	M6	M6	99	99	78	89	89	96	9	39	119	24	5A
BRPG1/2-S3005	G1/2	G1/2	G1/2	42	M6	M6	99	99	78	89	89	96	9	39	135	30	5A
BRPG1/2-S3605	G1/2	G1/2	G1/2	42	M6	M6	99	99	78	89	89	96	9	39	155	36	5A
BRPG1/2-S4205	G1/2	G1/2	G1/2	42	M6	M6	99	99	78	89	89	96	9	39	170	42	5A
BRPG1/2-S3605	G1/2	G1/2	G1/2	42	M6	M6	99	99	78	89	89	96	9	39	188	48	5A
BRPG1/2-S6005	G1/2	G1/2	G1/2	42	M6	M6	99	99	78	89	89	96	9	39	209	60	5A

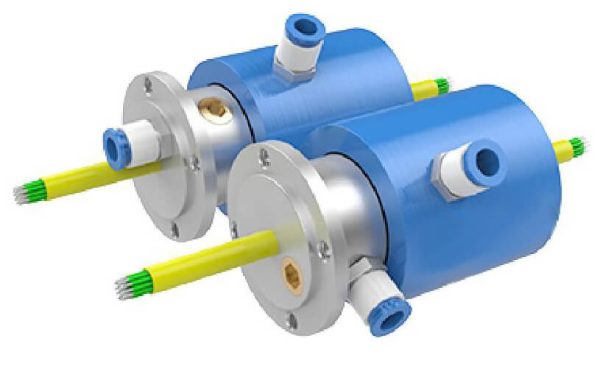

BRP1 series is single passage pneumatic combine with electrical signal transmission, our signal passage air rotary joints are designed with advanced sealing technologies to ensure reliable and leak-free operation. These rotary union incorporate high quality sealing materials and precision engineering to minimize air leakage, thereby optimizing system performance and reducing energy waste. The reliable sealing also helps maintain consistent pneumatic pressure, ensuring precise control and accurate operation of pneumatic devices. this series supports 1-60 signal rings with current capability 2A/ring or 5A/ring.

• Factory Automation
• Heavy Equipment
• Machine Tool
• Food & Beverage
• Plastic Molding
• Oil & Gas
• Marine
• Defense
• Medical
• Aerospace

Ring#	1	2	3	4	5	6	7	8	9	10	11	12
Color	RED	YEL	BLK	BLU	GRN	WHT	PUP	GRY	BRN	ORN	DBLU	YEL-GRN

12 color wires as one group, if more than 12 wires, repeat as sequence. Or can be customized
