Electrical Data			Mechanical Data
Rated Voltage	Power: 0~240 VAC/VDC	Signal: 0~440 VAC/VDC	Max. Speed	400RPM
Insulation Resistance	Power: ≥1000MΩ/500VDC	Signal: ≥1000MΩ/500VDC	Max. Pressure	10Bar
Insulation Strength	500VAC@50Hz, 60s		Working Temperature	-30℃~+80℃
Lead Wires	Standard (adjustable)		Working Humidity	0~85% RH
Lead Length	Standard 300mm (adjustable)		Housing Material	Aluminum Alloy
Electrical Noise	＜0.01Ω		Protection Grade	IP51

  Model list

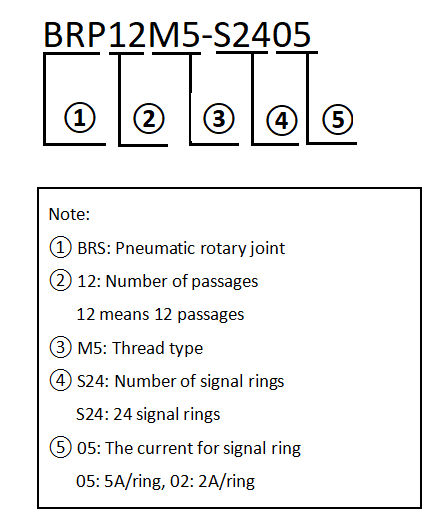

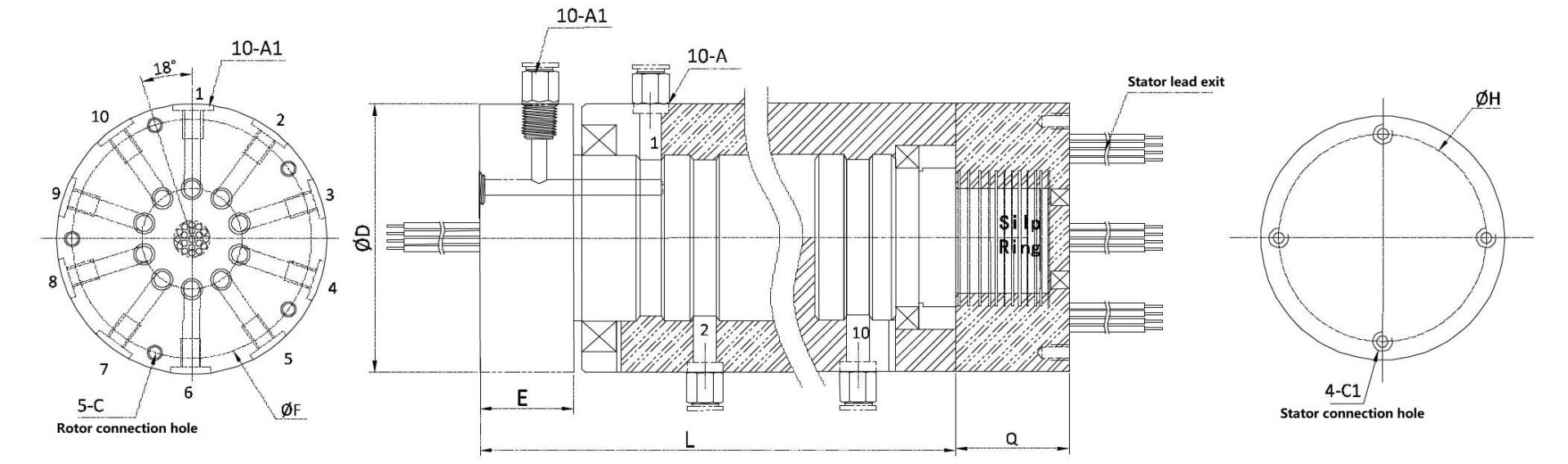

Model	A	A1	C	C1	D	E	F	H	L	Q	Circuits	Current
BRP10M5-S605	M5	M5	M6	M6	64	15	54	54	146	36	6	5A
BRP10M5-S1205	M5	M5	M6	M6	64	15	54	54	146	66	12	5A
BRP10M5-S1802	M5	M5	M6	M6	64	15	54	54	146	66	18	2A
BRP10M5-S2402	M5	M5	M6	M6	64	15	54	54	146	66	24	2A
BRP10M5-S3602	M5	M5	M6	M6	64	15	54	54	146	71	36	2A
BRP10M5-S5602	M5	M5	M6	M6	64	15	54	54	146	91	56	2A
BRP10M5-S1805	M5	M5	M6	M6	64	15	54	54	146	93	18	5A
BRP10M5-S2405	M5	M5	M6	M6	64	15	54	54	146	110	24	5A
BRP10M5-S3005	M5	M5	M6	M6	64	15	54	54	146	127	30	5A
BRP10M5-S3605	M5	M5	M6	M6	64	15	54	54	146	147	36	5A
BRP10M5-S4205	M5	M5	M6	M6	64	15	54	54	146	167	42	5A
BRP10M5-S4805	M5	M5	M6	M6	64	15	54	54	146	182	48	5A
BRP10M5-S6005	M5	M5	M6	M6	64	15	54	54	146	227	60	5A
BRP10G1/8-S605	G1/8	G1/8	M6	M6	69	20	59	59	176	36	6	5A
BRP10G1/8-S1205	G1/8	G1/8	M6	M6	69	20	59	59	176	66	12	5A
BRP10G1/8-S1802	G1/8	G1/8	M6	M6	69	20	59	59	176	66	18	2A
BRP10G1/8-S2402	G1/8	G1/8	M6	M6	69	20	59	59	176	66	24	2A
BRP10G1/8-S3602	G1/8	G1/8	M6	M6	69	20	59	59	176	71	36	2A
BRP10G1/8-S5602	G1/8	G1/8	M6	M6	69	20	59	59	176	91	56	2A
BRP10G1/8-S1805	G1/8	G1/8	M6	M6	69	20	59	59	176	93	18	5A
BRP10G1/8-S2405	G1/8	G1/8	M6	M6	69	20	59	59	176	110	24	5A
BRP10G1/8-S3005	G1/8	G1/8	M6	M6	69	20	59	59	176	127	30	5A
BRP10G1/8-S3605	G1/8	G1/8	M6	M6	69	20	59	59	176	147	36	5A
BRP10G1/8-S4205	G1/8	G1/8	M6	M6	69	20	59	59	176	167	42	5A
BRP10G1/8-S4805	G1/8	G1/8	M6	M6	69	20	59	59	176	182	48	5A
BRP10G1/8-S6005	G1/8	G1/8	M6	M6	69	20	59	59	176	227	60	5A
BRP10G1/4-S605	G1/4	G1/4	M6	M6	89	27	79	79	214	36	6	5A
BRP10G1/4-S1205	G1/4	G1/4	M6	M6	89	27	79	79	214	66	12	5A
BRP10G1/4-S1802	G1/4	G1/4	M6	M6	89	27	79	79	214	66	18	2A
BRP10G1/4-S2402	G1/4	G1/4	M6	M6	89	27	79	79	214	66	24	2A
BRP10G1/4-S3602	G1/4	G1/4	M6	M6	89	27	79	79	214	71	36	2A
BRP10G1/4-S5602	G1/4	G1/4	M6	M6	89	27	79	79	214	91	56	2A
BRP10G1/4-S1805	G1/4	G1/4	M6	M6	89	27	79	79	214	93	18	5A
BRP10G1/4-S2405	G1/4	G1/4	M6	M6	89	27	79	79	214	110	24	5A
BRP10G1/4-S3005	G1/4	G1/4	M6	M6	89	27	79	79	214	135	30	5A
BRP10G1/4-S3605	G1/4	G1/4	M6	M6	89	27	79	79	214	155	36	5A
BRP10G1/4-S4205	G1/4	G1/4	M6	M6	89	27	79	79	214	174	42	5A
BRP10G1/4-S4805	G1/4	G1/4	M6	M6	89	27	79	79	214	193	48	5A
BRP10G1/4-S6005	G1/4	G1/4	M6	M6	89	27	79	79	214	233	60	5A
BRP10G3/8-S605	G3/8	G3/8	M6	M6	99	30	89	89	239	36	6	5A
BRP10G3/8-S1205	G3/8	G3/8	M6	M6	99	30	89	89	239	66	12	5A
BRP10G3/8-S1802	G3/8	G3/8	M6	M6	99	30	89	89	239	66	18	5A
BRP10G3/8-S2402	G3/8	G3/8	M6	M6	99	30	89	89	239	66	24	2A
BRP10G3/8-S3602	G3/8	G3/8	M6	M6	99	30	89	89	239	66	36	2A
BRP10G3/8-S5602	G3/8	G3/8	M6	M6	99	30	89	89	239	91	56	2A
BRP10G3/8-S1805	G3/8	G3/8	M6	M6	99	30	89	89	239	99	18	5A
BRP10G3/8-S2405	G3/8	G3/8	M6	M6	99	30	89	89	239	119	24	5A
BRP10G3/8-S3005	G3/8	G3/8	M6	M6	99	30	89	89	239	135	30	5A
BRP10G3/8-S3605	G3/8	G3/8	M6	M6	99	30	89	89	239	155	36	5A
BRP10G3/8-S4205	G3/8	G3/8	M6	M6	99	30	89	89	239	170	42	5A
BRP10G3/8-S4805	G3/8	G3/8	M6	M6	99	30	89	89	239	188	48	5A
BRP10G3/8-S6005	G3/8	G3/8	M6	M6	99	30	89	89	239	209	60	5A

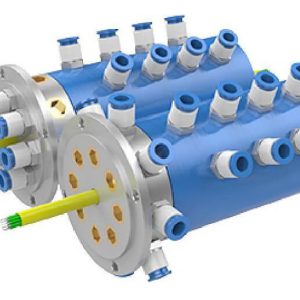

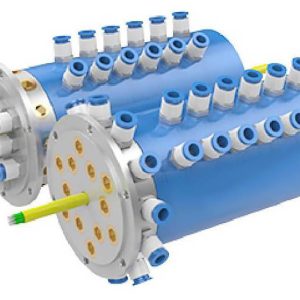

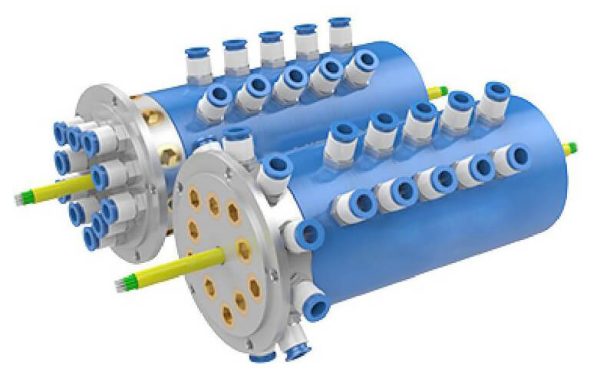

BRP10 series is 10 passages pneumatic combine with electrical signal transmission, our 10 passages air rotary joints are designed with advanced sealing technologies to ensure reliable and leak-free operation. These rotary union incorporate high quality sealing materials and precision engineering to minimize air leakage, thereby optimizing system performance and reducing energy waste. The reliable sealing also helps maintain consistent pneumatic pressure, ensuring precise control and accurate operation of pneumatic devices. this series supports 1~60 signal rings with current capability 2A/ring or 5A/ring.

• Factory Automation
• Heavy Equipment
• Machine Tool
• Food & Beverage
• Plastic Molding
• Oil & Gas
• Marine
• Defense
• Medical
• Aerospace

Ring#	1	2	3	4	5	6	7	8	9	10	11	12
Color	RED	YEL	BLK	BLU	GRN	WHT	PUP	GRY	BRN	ORN	DBLU	YEL-GRN

12 color wires as one group, if more than 12 wires, repeat as sequence. Or can be customized
