BRP12

BRP12

  • Support M5, G1 / 8, G1 / 4, G3 / 8 thread for pneumatic
  • Dynamic sealing technology
  • With NSK high precision bearing
  • Abrasion resistant, low torque, high speed
  • Can be combined to transfer 2~60circuits power and signal
Electrical Data Mechanical Data
Rated Voltage Power: 0~240 VAC/VDC Signal: 0~440 VAC/VDC Max. Speed 400RPM
Insulation Resistance Power: ≥1000MΩ/500VDC Signal: ≥1000MΩ/500VDC Max. Pressure 10Bar
Insulation Strength 500VAC@50Hz, 60s Working Temperature -30℃~+80℃
Lead Wires Standard (adjustable) Working Humidity 0~85% RH
Lead Length Standard 300mm (adjustable) Housing Material Aluminum Alloy
Electrical Noise <0.01Ω Protection Grade IP51

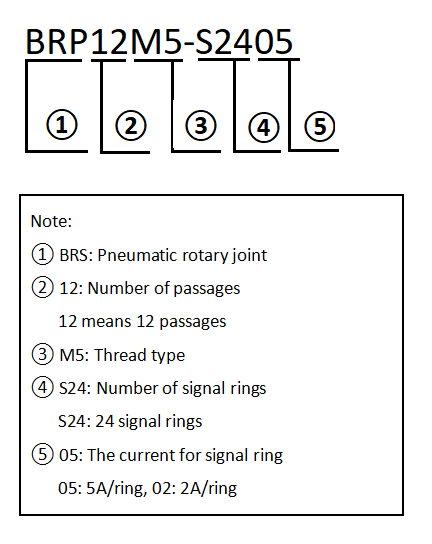

  Model list

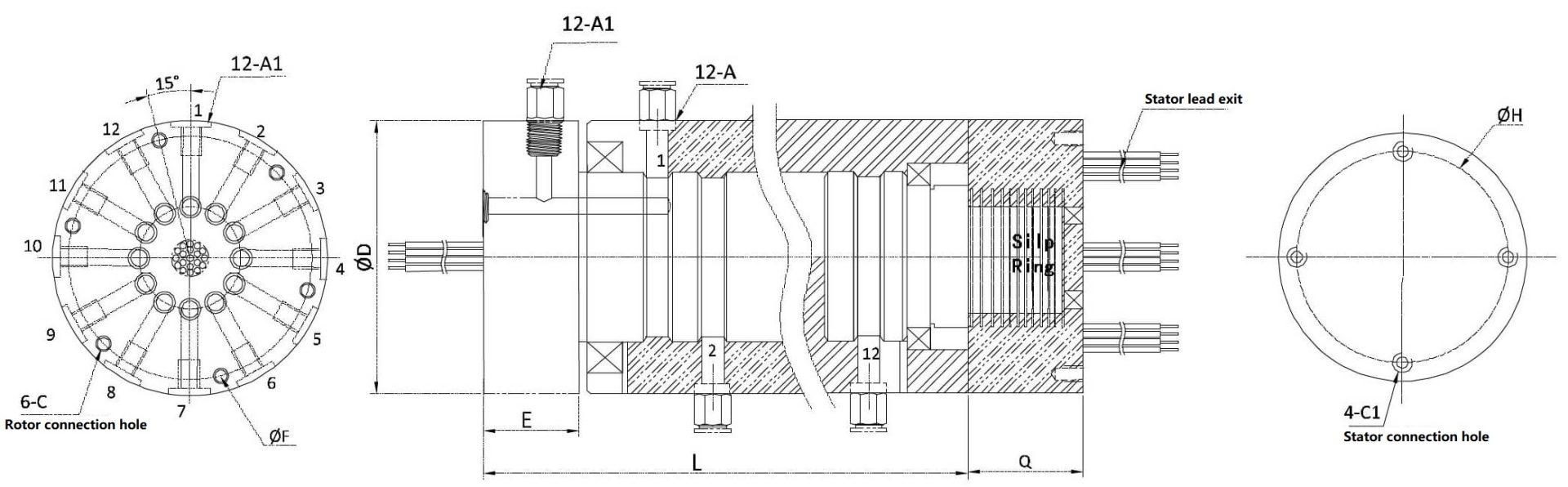

Model A A1 C C1 D E F H L Q Circuits Current
BRP12M5-S605 M5 M5 M6 M6 64 15 54 54 166 36 6 5A
BRP12M5-S1205 M5 M5 M6 M6 64 15 54 54 166 66 12 5A
BRP12M5-S1802 M5 M5 M6 M6 64 15 54 54 166 66 18 2A
BRP12M5-S2402 M5 M5 M6 M6 64 15 54 54 166 66 24 2A
BRP12M5-S3602 M5 M5 M6 M6 64 15 54 54 166 71 36 2A
BRP12M5-S5602 M5 M5 M6 M6 64 15 54 54 166 91 56 2A
BRP12M5-S1805 M5 M5 M6 M6 64 15 54 54 166 93 18 5A
BRP12M5-S2405 M5 M5 M6 M6 64 15 54 54 166 110 24 5A
BRP12M5-S3005 M5 M5 M6 M6 64 15 54 54 166 127 30 5A
BRP12M5-S3605 M5 M5 M6 M6 64 15 54 54 166 147 36 5A
BRP12M5-S4205 M5 M5 M6 M6 64 15 54 54 166 167 42 5A
BRP12M5-S4805 M5 M5 M6 M6 64 15 54 54 166 182 48 5A
BRP12M5-S6005 M5 M5 M6 M6 64 15 54 54 166 227 60 5A
BRP12M5-S605 G1/8 G1/8 M6 M6 74 20 64 64 214 36 6 5A
BRP12M5-S1205 G1/8 G1/8 M6 M6 74 20 64 64 214 66 12 5A
BRP12M5-S1802 G1/8 G1/8 M6 M6 74 20 64 64 214 66 18 2A
BRP12G1/8-S402 G1/8 G1/8 M6 M6 74 20 64 64 214 66 24 2A
BRP12G1/8-S3602 G1/8 G1/8 M6 M6 74 20 64 64 214 71 36 2A
BRP12G1/8-S5602 G1/8 G1/8 M6 M6 74 20 64 64 214 91 56 2A
BRP12G1/8-S1805 G1/8 G1/8 M6 M6 74 20 64 64 214 93 18 5A
BRP12G1/8-S2405 G1/8 G1/8 M6 M6 74 20 64 64 214 110 24 5A
BRP12G1/8-S3005 G1/8 G1/8 M6 M6 74 20 64 64 214 127 30 5A
BRP12G1/8-S3605 G1/8 G1/8 M6 M6 74 20 64 64 214 147 36 5A
BRP12G1/8-S4205 G1/8 G1/8 M6 M6 74 20 64 64 214 167 42 5A
BRP12G1/8-S4805 G1/8 G1/8 M6 M6 74 20 64 64 214 182 48 5A
BRP12G1/8-S6005 G1/8 G1/8 M6 M6 74 20 64 64 214 227 60 5A
BRP12G1/4-S605 G1/4 G1/4 M6 M6 94 27 84 84 214 36 6 5A
BRP12G1/4-S1205 G1/4 G1/4 M6 M6 94 27 84 84 244 66 12 5A
BRP12G1/4-S1802 G1/4 G1/4 M6 M6 94 27 84 84 244 66 18 2A
BRP12G1/4-S2402 G1/4 G1/4 M6 M6 94 27 84 84 244 66 24 2A
BRP12G1/4-S3602 G1/4 G1/4 M6 M6 94 27 84 84 244 71 36 2A
BRP12G1/4-S5602 G1/4 G1/4 M6 M6 94 27 84 84 244 91 56 2A
BRP12G1/4-S1805 G1/4 G1/4 M6 M6 94 27 84 84 244 93 18 5A
BRP12G1/4-S2405 G1/4 G1/4 M6 M6 94 27 84 84 244 110 24 5A
BRP12G1/4-S3005 G1/4 G1/4 M6 M6 94 27 84 84 244 135 30 5A
BRP12G1/4-S3605 G1/4 G1/4 M6 M6 94 27 84 84 244 155 36 5A
BRP12G1/4-S4205 G1/4 G1/4 M6 M6 94 27 84 84 244 174 42 5A
BRP12G1/4-S4805 G1/4 G1/4 M6 M6 94 27 84 84 244 193 48 5A
BRP12G1/4-S6005 G1/4 G1/4 M6 M6 94 27 84 84 244 233 60 5A
BRP12G3/8-S605 G3/8 G3/8 M6 M6 108 30 98 84 275 36 6 5A
BRP12G3/8-S1205 G3/8 G3/8 M6 M6 108 30 98 84 275 66 12 5A
BRP12G3/8-S1802 G3/8 G3/8 M6 M6 108 30 98 84 275 66 18 5A
BRP12G3/8-S2402 G3/8 G3/8 M6 M6 108 30 98 84 275 66 24 2A
BRP12G3/8-S3602 G3/8 G3/8 M6 M6 108 30 98 98 275 66 36 2A
BRP12G3/8-S5602 G3/8 G3/8 M6 M6 108 30 98 98 275 91 56 2A
BRP12G3/8-S1805 G3/8 G3/8 M6 M6 108 30 98 98 275 99 18 5A
BRP12G3/8-S2405 G3/8 G3/8 M6 M6 108 30 98 98 275 119 24 5A
BRP12G3/8-S3005 G3/8 G3/8 M6 M6 108 30 98 98 275 135 30 5A
BRP12G3/8-S3605 G3/8 G3/8 M6 M6 108 30 98 98 275 155 36 5A
BRP12G3/8-S4205 G3/8 G3/8 M6 M6 108 30 98 98 275 170 42 5A
BRP12G3/8-S4805 G3/8 G3/8 M6 M6 108 30 98 98 275 188 48 5A
BRP12G3/8-S6005 G3/8 G3/8 M6 M6 108 30 98 98 275 209 60 5A
BRP12 series is 12 passages pneumatic combine with electrical signal transmission, our 12 passages air rotary joints are designed with advanced sealing technologies to ensure reliable and leak-free operation. These rotary union incorporate high quality sealing materials and precision engineering to minimize air leakage, thereby optimizing system performance and reducing energy waste. The reliable sealing also helps maintain consistent pneumatic pressure, ensuring precise control and accurate operation of pneumatic devices. this series supports 1~60 signal rings with current capability 2A/ring or 5A/ring.

  • Factory Automation
  • Heavy Equipment
  • Machine Tool
  • Food & Beverage
  • Plastic Molding
  • Oil & Gas
  • Marine
  • Defense
  • Medical
  • Aerospace
Ring# 1 2 3 4 5 6 7 8 9 10 11 12
Color RED YEL BLK BLU GRN WHT PUP GRY BRN ORN DBLU YEL-GRN

12 color wires as one group, if more than 12 wires, repeat as sequence. Or can be customized
