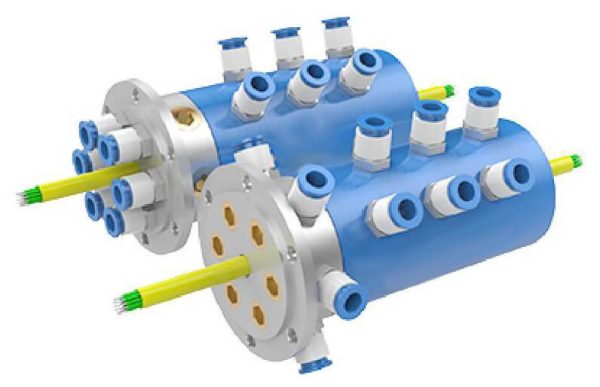

BRP6

BRP6

  • Support M5, G1 / 8, G1 / 4, G3 / 8 thread for pneumatic
  • Dynamic sealing technology
  • With NSK high precision bearing
  • Abrasion resistant, low torque, high speed
  • Can be combined to transfer 2~60circuits power and signal
Electrical Data Mechanical Data
Rated Voltage Power: 0~240 VAC/VDC Signal: 0~440 VAC/VDC Max. Speed 400RPM
Insulation Resistance Power: ≥1000MΩ/500VDC Signal: ≥1000MΩ/500VDC Max. Pressure 10Bar
Insulation Strength 500VAC@50Hz, 60s Working Temperature -30℃~+80℃
Lead Wires Standard (adjustable) Working Humidity 0~85% RH
Lead Length Standard 300mm (adjustable) Housing Material Aluminum Alloy
Electrical Noise <0.01Ω Protection Grade IP51

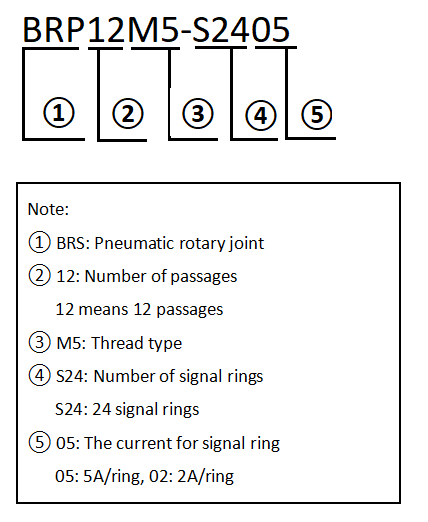

  Model List

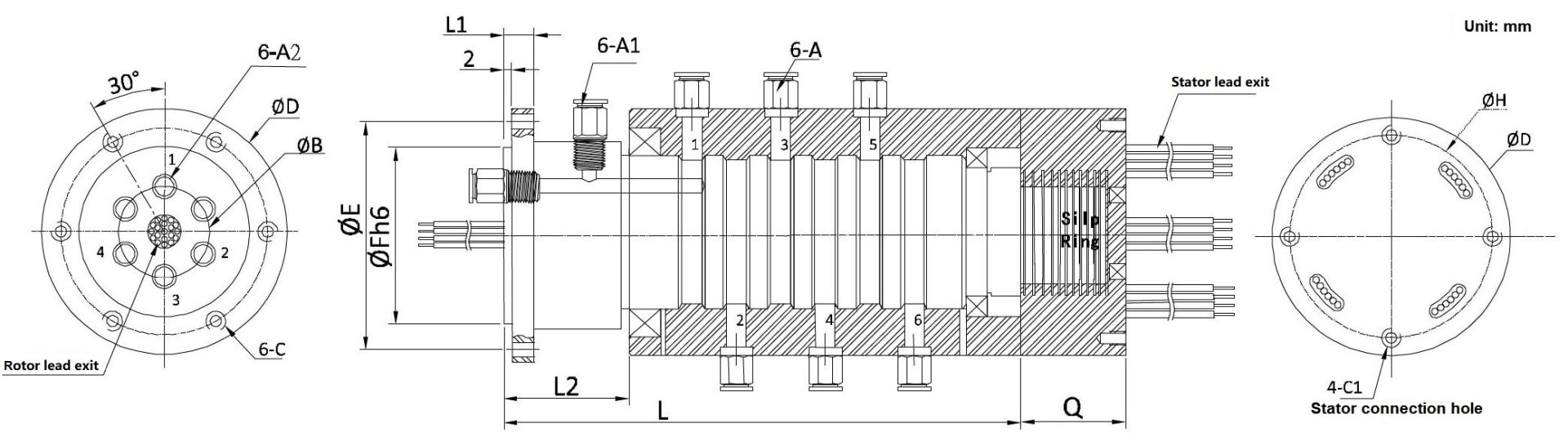

Model A A1 A2 B C C1 D D1 E F H L L1 L2 Q Circuits Current
BRP6M5-S605 M5 M5 M5 22 M6 M6 59 59 39 49 49 10 7 18 36 6 5A
BRP6M5-S1205 M5 M5 M5 22 M6 M6 59 59 39 49 49 107 7 18 66 12 5A
BRP6M5-S1802 M5 M5 M5 22 M6 M6 59 59 39 50 49 107 7 18 66 18 2A
BRP6M5-S2402 M5 M5 M5 22 M6 M6 59 59 39 50 49 107 7 18 66 24 2A
BRP6M5-S3602 M5 M5 M5 22 M6 M6 59 59 39 50 49 107 7 18 71 36 2A
BRP6M5-S5602 M5 M5 M5 22 M6 M6 59 59 39 50 49 107 7 18 91 56 2A
BRP6M5-S1805 M5 M5 M5 23 M6 M6 59 59 39 50 49 107 7 18 93 18 5A
BRP6M5-S2405 M5 M5 M5 23 M6 M6 59 59 39 50 49 107 7 18 110 24 5A
BRP6M5-S3005 M5 M5 M5 23 M6 M6 59 59 39 50 49 107 7 18 127 30 5A
BRP6M5-S3605 M5 M5 M5 23 M6 M6 59 59 39 50 49 107 7 18 147 36 5A
BRP6M5-S4205 M5 M5 M5 23 M6 M6 59 59 39 50 49 107 7 18 167 42 5A
BRP6M5-S4805 M5 M5 M5 23 M6 M6 59 59 39 50 49 107 7 18 182 48 5A
BRP6M5-S6005 M5 M5 M5 23 M6 M6 59 59 39 50 49 107 7 18 227 60 5A
BRP6G1/8-S605 G1/8 G1/8 G1/8 31 M6 M6 69 69 49 59 59 132 7 29 36 6 5A
BRP6G1/8-S1205 G1/8 G1/8 G1/8 31 M6 M6 69 69 49 59 59 132 7 29 66 12 5A
BRP6G1/8-S1802 G1/8 G1/8 G1/8 31 M6 M6 69 69 49 59 59 132 7 29 66 18 2A
BRP6G1/8-S2402 G1/8 G1/8 G1/8 31 M6 M6 69 69 49 59 59 132 7 29 66 24 2A
BRP6G1/8-S3602 G1/8 G1/8 G1/8 31 M6 M6 69 69 49 59 59 132 7 29 71 36 2A
BRP6G1/8-S5602 G1/8 G1/8 G1/8 31 M6 M6 69 69 49 59 59 132 7 29 92 56 2A
BRP6G1/8-S1805 G1/8 G1/8 G1/8 31 M6 M6 69 69 49 59 59 132 7 29 95 18 5A
BRP6G1/8-S2405 G1/8 G1/8 G1/8 31 M6 M6 69 69 49 59 59 132 7 29 112 24 5A
BRP6G1/8-S3005 G1/8 G1/8 G1/8 31 M6 M6 69 69 49 59 59 132 7 29 130 30 5A
BRP6G1/8-S3605 G1/8 G1/8 G1/8 31 M6 M6 69 69 49 59 59 132 7 29 150 36 5A
BRP6G1/8-S4205 G1/8 G1/8 G1/8 31 M6 M6 69 69 49 59 59 132 7 29 168 42 5A
BRP6G1/8-S4805 G1/8 G1/8 G1/8 31 M6 M6 69 69 49 59 59 132 7 29 183 48 5A
BRP6G1/8-S6005 G1/8 G1/8 G1/8 31 M6 M6 69 69 49 59 59 132 7 29 223 60 5A
BRP6G1/4-S605 G1/4 G1/4 G1/4 35 M6 M6 79 64 59 69 54 142 9 34 36 6 5A
BRP6G1/4-S1205 G1/4 G1/4 G1/4 40 M6 M6 84 69 64 74 59 142 9 34 66 12 5A
BRP6G1/4-S1802 G1/4 G1/4 G1/4 40 M6 M6 84 69 64 74 59 142 9 34 66 18 2A
BRP6G1/4-S2402 G1/4 G1/4 G1/4 40 M6 M6 84 69 64 74 59 142 9 34 66 24 2A
BRP6G1/4-S3602 G1/4 G1/4 G1/4 40 M6 M6 84 69 64 74 59 142 9 34 66 36 2A
BRP6G1/4-S5602 G1/4 G1/4 G1/4 45 M6 M6 89 74 69 79 64 142 9 34 97 56 2A
BRP6G1/4-S1805 G1/4 G1/4 G1/4 45 M6 M6 89 74 69 79 64 142 9 34 99 18 5A
BRP6G1/4-S2405 G1/4 G1/4 G1/4 45 M6 M6 89 74 69 79 64 142 9 34 117 24 5A
BRP6G1/4-S3005 G1/4 G1/4 G1/4 45 M6 M6 89 74 69 79 64 142 9 34 135 30 5A
BRP6G1/4-S3605 G1/4 G1/4 G1/4 45 M6 M6 89 74 69 79 64 142 9 34 155 36 5A
BRP6G1/4-S4205 G1/4 G1/4 G1/4 45 M6 M6 89 74 69 79 64 142 9 34 175 42 5A
BRP6G1/4-S4805 G1/4 G1/4 G1/4 45 M6 M6 89 74 69 79 64 142 9 34 190 48 5A
BRP6G1/4-S6005 G1/4 G1/4 G1/4 45 M6 M6 89 74 69 79 64 142 9 34 230 60 5A
BRP6G3/8-S605 G3/8 G3/8 G3/8 51 M6 M6 109 89 88 99 79 176 9 39 35 6 5A
BRP6G3/8-S1205 G3/8 G3/8 G3/8 51 M6 M6 109 89 88 99 79 176 9 39 64 12 5A
BRP6G3/8-S1802 G3/8 G3/8 G3/8 51 M6 M6 109 89 88 99 79 176 9 39 64 18 2A
BRP6G3/8-S2402 G3/8 G3/8 G3/8 51 M6 M6 109 89 88 99 79 176 9 39 64 24 2A
BRP6G3/8-S3602 G3/8 G3/8 G3/8 51 M6 M6 109 89 88 99 79 176 9 39 70 36 2A
BRP6G3/8-S5602 G3/8 G3/8 G3/8 51 M6 M6 109 89 88 99 79 176 9 39 95 56 2A
BRP6G3/8-S1805 G3/8 G3/8 G3/8 56 M6 M6 114 94 93 104 84 176 9 39 100 18 5A
BRP6G3/8-S2405 G3/8 G3/8 G3/8 56 M6 M6 114 94 93 104 84 176 9 39 117 24 5A
BRP6G3/8-S3005 G3/8 G3/8 G3/8 56 M6 M6 114 94 93 104 84 176 9 39 135 30 5A
BRP6G3/8-S3605 G3/8 G3/8 G3/8 56 M6 M6 114 94 93 104 84 176 9 39 158 36 5A
BRP6G3/8-S4205 G3/8 G3/8 G3/8 56 M6 M6 114 94 93 104 84 176 9 39 174 42 5A
BRP6G3/8-S4805 G3/8 G3/8 G3/8 56 M6 M6 114 94 93 104 84 176 9 39 193 48 5A
BRP6G3/8-S6005 G3/8 G3/8 G3/8 56 M6 M6 114 94 93 104 84 176 9 39 233 60 5A
  BRP6 series is 6 passages pneumatic combine with electrical signal transmission, our 6 passages air rotary joints are designed with advanced sealing technologies to ensure reliable and leak-free operation. These rotary union incorporate high quality sealing materials and precision engineering to minimize air leakage, thereby optimizing system performance and reducing energy waste. The reliable sealing also helps maintain consistent pneumatic pressure, ensuring precise control and accurate operation of pneumatic devices. this series supports 1~60 signal rings with current capability 2A/ring or 5A/ring.

  • Factory Automation
  • Heavy Equipment
  • Machine Tool
  • Food & Beverage
  • Plastic Molding
  • Oil & Gas
  • Marine
  • Defense
  • Medical
  • Aerospace
Ring# 1 2 3 4 5 6 7 8 9 10 11 12
Color RED YEL BLK BLU GRN WHT PUP GRY BRN ORN DBLU YEL-GRN

12 color wires as one group, if more than 12 wires, repeat as sequence. Or can be customized

Customer requirements drive us improving to perfect for a win-win situation
