Electrical Data |
Mechanical Data |
Rated Voltage |
Power: 0~240 VAC/VDC |
Signal: 0~440 VAC/VDC |
Max. Speed |
400RPM |
Insulation Resistance |
Power: ≥1000MΩ/500VDC |
Signal: ≥1000MΩ/500VDC |
Max. Pressure |
10Bar |
Insulation Strength |
500VAC@50Hz, 60s |
Working Temperature |
-30℃~+80℃ |
Lead Wires |
Standard (adjustable) |
Working Humidity |
0~85% RH |
Lead Length |
Standard 300mm (adjustable) |
Housing Material |
Aluminum Alloy |
Electrical Noise |
<0.01Ω |
Protection Grade |
IP51 |
Model List
Model |
A |
A1 |
C |
C1 |
D |
E |
F |
H |
L |
Q |
Circuits |
Current |
BRP8M5-S605 |
M5 |
M5 |
M6 |
M6 |
54 |
15 |
44 |
44 |
126 |
36 |
6 |
5A |
BRP8M5-S1205 |
M5 |
M5 |
M6 |
M6 |
59 |
15 |
49 |
49 |
126 |
66 |
12 |
5A |
BRP8M5-S1802 |
M5 |
M5 |
M6 |
M6 |
59 |
15 |
49 |
49 |
126 |
66 |
18 |
2A |
BRP8M5-S2402 |
M5 |
M5 |
M6 |
M6 |
59 |
15 |
49 |
49 |
126 |
66 |
24 |
2A |
BRP8M5-S3602 |
M5 |
M5 |
M6 |
M6 |
59 |
15 |
49 |
49 |
126 |
71 |
36 |
2A |
BRP8M5-S5602 |
M5 |
M5 |
M6 |
M6 |
59 |
15 |
49 |
49 |
126 |
91 |
56 |
2A |
BRP8M5-S1805 |
M5 |
M5 |
M6 |
M6 |
64 |
15 |
54 |
54 |
126 |
93 |
18 |
5A |
BRP8M5-S2405 |
M5 |
M5 |
M6 |
M6 |
64 |
15 |
49 |
54 |
126 |
110 |
24 |
5A |
BRP8M5-S3005 |
M5 |
M5 |
M6 |
M6 |
64 |
15 |
49 |
54 |
126 |
127 |
30 |
5A |
BRP8M5-S3605 |
M5 |
M5 |
M6 |
M6 |
64 |
15 |
49 |
54 |
126 |
147 |
36 |
5A |
BRP8M5-S4205 |
M5 |
M5 |
M6 |
M6 |
64 |
15 |
49 |
54 |
126 |
167 |
42 |
5A |
BRP8M5-S4805 |
M5 |
M5 |
M6 |
M6 |
64 |
15 |
49 |
54 |
126 |
182 |
48 |
5A |
BRP8M5-S6005 |
M5 |
M5 |
M6 |
M6 |
64 |
15 |
49 |
54 |
126 |
227 |
60 |
5A |
BRP8G1/8-S605 |
G1/8 |
G1/8 |
M6 |
M6 |
64 |
20 |
49 |
54 |
146 |
36 |
6 |
5A |
BRP8G1/8-S1205 |
G1/8 |
G1/8 |
M6 |
M6 |
64 |
20 |
49 |
54 |
146 |
66 |
12 |
5A |
BRP8G1/8-S1802 |
G1/8 |
G1/8 |
M6 |
M6 |
64 |
20 |
49 |
54 |
146 |
66 |
18 |
2A |
BRP8G1/8-S2402 |
G1/8 |
G1/8 |
M6 |
M6 |
64 |
20 |
49 |
54 |
146 |
66 |
24 |
2A |
BRP8G1/8-S3602 |
G1/8 |
G1/8 |
M6 |
M6 |
64 |
20 |
54 |
54 |
146 |
71 |
36 |
2A |
BRP8G1/8-S5602 |
G1/8 |
G1/8 |
M6 |
M6 |
64 |
20 |
54 |
54 |
146 |
91 |
56 |
2A |
BRP8G1/8-S1805 |
G1/8 |
G1/8 |
M6 |
M6 |
64 |
20 |
54 |
54 |
146 |
93 |
18 |
5A |
BRP8G1/8-S2405 |
G1/8 |
G1/8 |
M6 |
M6 |
64 |
20 |
54 |
54 |
146 |
110 |
24 |
5A |
BRP8G1/8-S3005 |
G1/8 |
G1/8 |
M6 |
M6 |
64 |
20 |
54 |
54 |
146 |
127 |
30 |
5A |
BRP8G1/8-S3605 |
G1/8 |
G1/8 |
M6 |
M6 |
64 |
20 |
54 |
54 |
146 |
147 |
36 |
5A |
BRP8G1/8-S4205 |
G1/8 |
G1/8 |
M6 |
M6 |
64 |
20 |
54 |
54 |
146 |
167 |
42 |
5A |
BRP8G1/8-S4805 |
G1/8 |
G1/8 |
M6 |
M6 |
64 |
20 |
54 |
54 |
146 |
182 |
48 |
5A |
BRP8G1/8-S6005 |
G1/8 |
G1/8 |
M6 |
M6 |
64 |
20 |
54 |
54 |
146 |
227 |
60 |
5A |
BRP8G1/4-S605 |
G1/4 |
G1/4 |
M6 |
M6 |
74 |
27 |
64 |
64 |
170 |
36 |
6 |
5A |
BRP8G1/4-S1205 |
G1/4 |
G1/4 |
M6 |
M6 |
74 |
27 |
64 |
64 |
170 |
66 |
12 |
5A |
BRP8G1/4-S1802 |
G1/4 |
G1/4 |
M6 |
M6 |
74 |
27 |
64 |
64 |
170 |
66 |
18 |
2A |
BRP8G1/4-S2402 |
G1/4 |
G1/4 |
M6 |
M6 |
74 |
27 |
64 |
64 |
170 |
66 |
24 |
2A |
BRP8G1/4-S3602 |
G1/4 |
G1/4 |
M6 |
M6 |
74 |
27 |
64 |
64 |
170 |
71 |
36 |
2A |
BRP8G1/4-S5602 |
G1/4 |
G1/4 |
M6 |
M6 |
74 |
27 |
64 |
64 |
170 |
91 |
56 |
2A |
BRP8G1/4-S1805 |
G1/4 |
G1/4 |
M6 |
M6 |
74 |
27 |
64 |
64 |
170 |
93 |
18 |
5A |
BRP8G1/4-S2405 |
G1/4 |
G1/4 |
M6 |
M6 |
74 |
27 |
64 |
64 |
170 |
110 |
24 |
5A |
BRP8G1/4-S3005 |
G1/4 |
G1/4 |
M6 |
M6 |
74 |
27 |
64 |
64 |
170 |
135 |
30 |
5A |
BRP8G1/4-S3605 |
G1/4 |
G1/4 |
M6 |
M6 |
74 |
27 |
64 |
64 |
170 |
155 |
36 |
5A |
BRP8G1/4-S4205 |
G1/4 |
G1/4 |
M6 |
M6 |
74 |
27 |
64 |
64 |
170 |
174 |
42 |
5A |
BRP8G1/4-S4805 |
G1/4 |
G1/4 |
M6 |
M6 |
74 |
27 |
64 |
64 |
170 |
193 |
48 |
5A |
BRP8G1/4-S6005 |
G1/4 |
G1/4 |
M6 |
M6 |
74 |
27 |
64 |
64 |
170 |
233 |
60 |
5A |
BRP8G3/8-S605 |
G3/8 |
G3/8 |
M6 |
M6 |
94 |
30 |
84 |
84 |
203 |
36 |
6 |
5A |
BRP8G3/8-S1205 |
G3/8 |
G3/8 |
M6 |
M6 |
94 |
30 |
84 |
84 |
203 |
66 |
12 |
5A |
BRP8G3/8-S1802 |
G3/8 |
G3/8 |
M6 |
M6 |
94 |
30 |
84 |
84 |
203 |
66 |
18 |
5A |
BRP8G3/8-S2402 |
G3/8 |
G3/8 |
M6 |
M6 |
94 |
30 |
84 |
84 |
203 |
66 |
24 |
2A |
BRP8G3/8-S3602 |
G3/8 |
G3/8 |
M6 |
M6 |
94 |
30 |
84 |
84 |
203 |
66 |
36 |
2A |
BRP8G3/8-S5602 |
G3/8 |
G3/8 |
M6 |
M6 |
94 |
30 |
84 |
84 |
203 |
91 |
56 |
2A |
BRP8G3/8-S1805 |
G3/8 |
G3/8 |
M6 |
M6 |
94 |
30 |
84 |
84 |
203 |
99 |
18 |
5A |
BRP8G3/8-S2405 |
G3/8 |
G3/8 |
M6 |
M6 |
94 |
30 |
84 |
84 |
203 |
119 |
24 |
5A |
BRP8G3/8-S3005 |
G3/8 |
G3/8 |
M6 |
M6 |
94 |
30 |
84 |
84 |
203 |
135 |
30 |
5A |
BRP8G3/8-S3605 |
G3/8 |
G3/8 |
M6 |
M6 |
94 |
30 |
84 |
84 |
203 |
155 |
36 |
5A |
BRP8G3/8-S4205 |
G3/8 |
G3/8 |
M6 |
M6 |
94 |
30 |
84 |
84 |
203 |
170 |
42 |
5A |
BRP8G3/8-S4805 |
G3/8 |
G3/8 |
M6 |
M6 |
94 |
30 |
84 |
84 |
203 |
188 |
48 |
5A |
BRP8G3/8-S6005 |
G3/8 |
G3/8 |
M6 |
M6 |
94 |
30 |
84 |
84 |
203 |
209 |
60 |
5A |

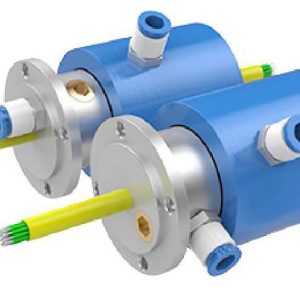

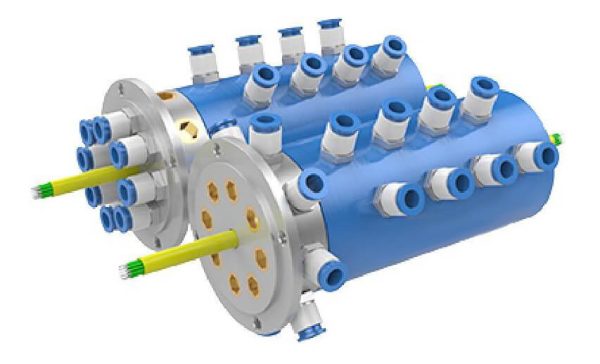

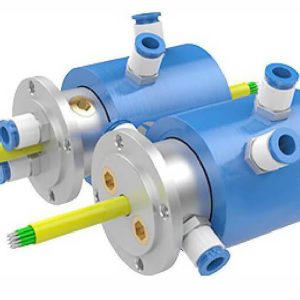

BRP8 series is 8 passages pneumatic combine with electrical signal transmission, our 8 passages air rotary joints are designed with advanced sealing technologies to ensure reliable and leak-free operation. These rotary union incorporate high quality sealing materials and precision engineering to minimize air leakage, thereby optimizing system performance and reducing energy waste. The reliable sealing also helps maintain consistent pneumatic pressure, ensuring precise control and accurate operation of pneumatic devices. this series supports 1~60 signal rings with current capability 2A/ring or 5A/ring.
Ring# |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
Color |
RED |
YEL |
BLK |
BLU |
GRN |
WHT |
PUP |
GRY |
BRN |
ORN |
DBLU |
YEL-GRN |
12 color wires as one group, if more than 12 wires, repeat as sequence. Or can be customized
