BSC110

BSC110

  • Cost-effective
  • Free maintenance
  • Stable transmit 1~8 channels signal
  • IP 51 (IP54-IP65 can be customized)
  • Integrated structure design for easy installation
  • Standard model and customization are available
  • Support Combination with RF/fiber optic rotary joint
  • Gold to gold contact material ensure long life and low friction
Electrical Data Mechanical Data
No. Of Circuits 1~8 channels Outer Diameter 11mm
Rated Voltage 0~240 VAC/VDC Working Speed 0-250rpm
Rated Current 1A/ring Working Temperature -20℃~+80℃
Lead Size Sliver plated Teflon colour coded AWG28(1A) Working Humidity 60% RH or higher
Lead Length Standard 250mm (adjustable) Housing Material Engineering plastic
Dielectric Strength 500VAC@50HZ,60S Contact material Gold to gold
Insulation Resistance 500MΩ/500VDC IP rating IP51
Electrical Noise <0.01Ω
  Model list
Model Number of Rings Rated Current Rated Voltage Length (mm)
BSC110-2 2 1A 0~240V 11.8
BSC110-4 4 1A 0~240V 11.8
BSC110-6 6 1A 0~240V 11.8
BSC110-8 8 1A 0~240V 11.8

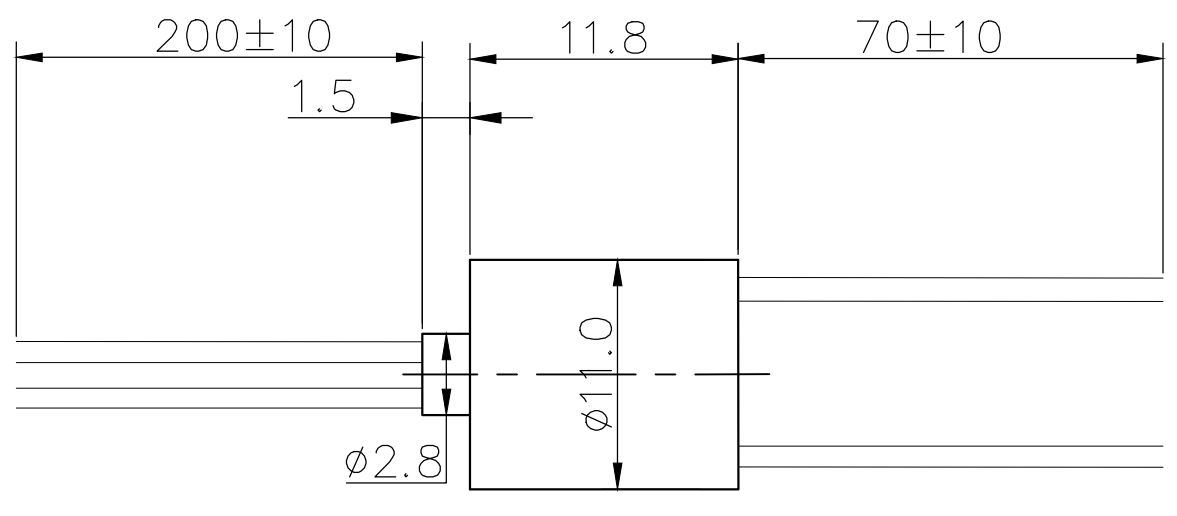

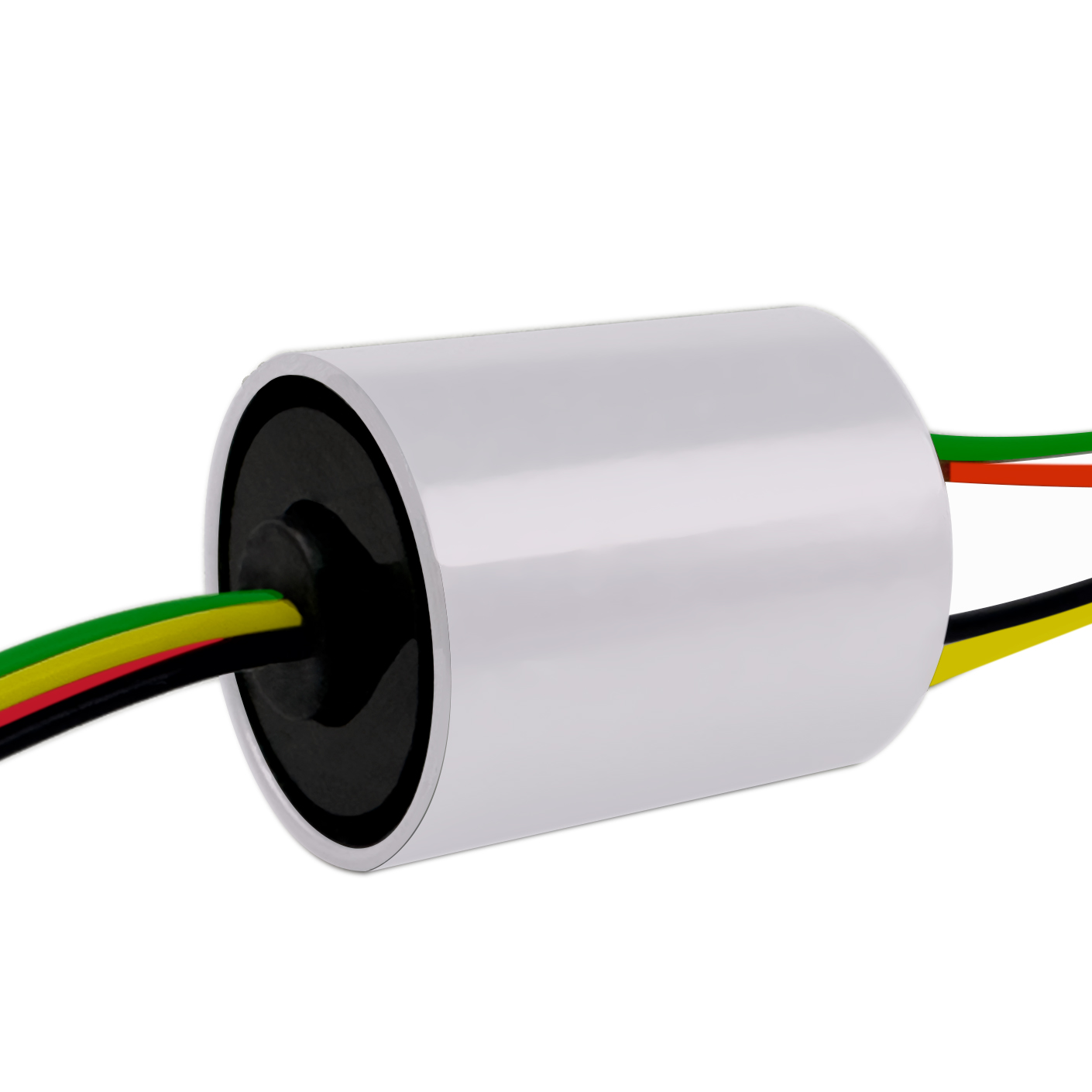

BSC110 is miniature slip ring with OD11.0mm, this mini slip ring allows to transmit 1~8 circuits low controlling signal. It’s compact designed fit for miniature rotating device and easily mounted on hole mechanics, the slip rings adopt gold to gold contact material to ensure high-quality transmission of electrical signals, low friction and wear and low contact resistance, color coded wires on both stator and rotor side.

  • Number of rings, support up to 300 rings
  • Optional for flange mounting
  • Position of wire outlet, wire length
  • ID, OD, Height can be customized if structure limitation
  • Aviation plug, terminal and heat-shrink tube are optional.
  • High temperature can up to 500 degrees.
  • High pressure can up to 110KV
  • Rotating speed can up to 15,000RPM
  • High current up to 5000 amperes.
  • Protection level (dust and water)
  • Optional for housing or structure material
  • Support mixed high speed data transmission(including Ethernet, USB, Profibus, Ethercat, CANOPEN, CANBUS, RS232, RS485, etc.)
  • RF/FORJ/Hybrid Pneumatic rotary union/hydraulic rotary union and electric slip ring can be mixed.
  • Fishing gear
  • Cable reels
  • Packaging
  • Rotary table
  • Wind turbine
  • Machine tools
  • Capping machines
  • Labeling machines
  • Automatic machines
  • Converting machines
  • Exhibit / display equipment
  • Medical,Pharmaceutical equipment
  • Robotics, rotary sensors, urgent illumination equipment
Rings# 1 2 3 4 5 6 7 8 9 10 11 12
Color RED YEL BLK BLU GRN WHT PUP GRY BRN ORN DBLU KHK

Note: 12 wires for 1 group color, from 13-24, repeat the same color as 1 to 12, or indicated by number code pipe.

Customer requirements drive us improving to perfect for a win-win situation
