BSC124

BSC124

  • Free maintenance
  • Stable transmit 1~18 channels signal
  • IP51 (IP54-IP65 can be customized)
  • Integrated structure design for easy installation
  • Standard model and customization are available
  • Support Combination with RF/fiber optic rotary joint
  • Gold to gold contact material ensure long life and low friction
Electrical Data Mechanical Data

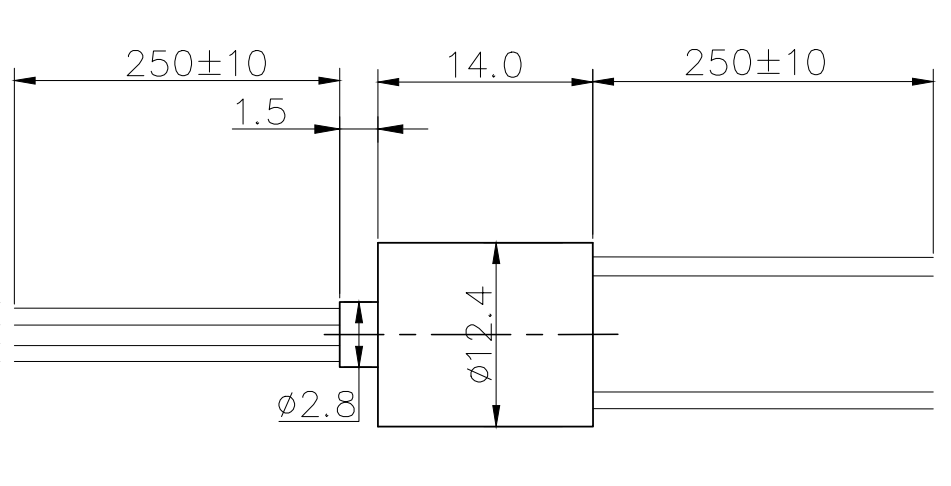

No. Of Circuits 1~18 channels Outer Diameter 12.4mm
Rated Voltage 0~240 VAC/VDC Working Speed 0-250rpm
Rated Current 2A/ring Working Temperature -20℃~+80℃
Lead Size Sliver plated Teflon colour coded AWG26(2A) Working Humidity 60% RH or higher
Lead Length Standard 250mm (adjustable) Housing Material Engineering plastic
Dielectric Strength 500VAC@50HZ,60S Contact material Gold to gold
Insulation Resistance 500MΩ/500VDC IP rating IP51
Electrical Noise <0.01Ω
  Model list
Model Number of Rings Rated Current Rated Voltage Length (mm)
BSC124-6 6 2A 0~240V 14.0
BSC124-8 8 2A 0~240V 14.0
BSC124-12 12 2A 0~240V 18.6
BSC124-18 18 2A 0~240V 23.0

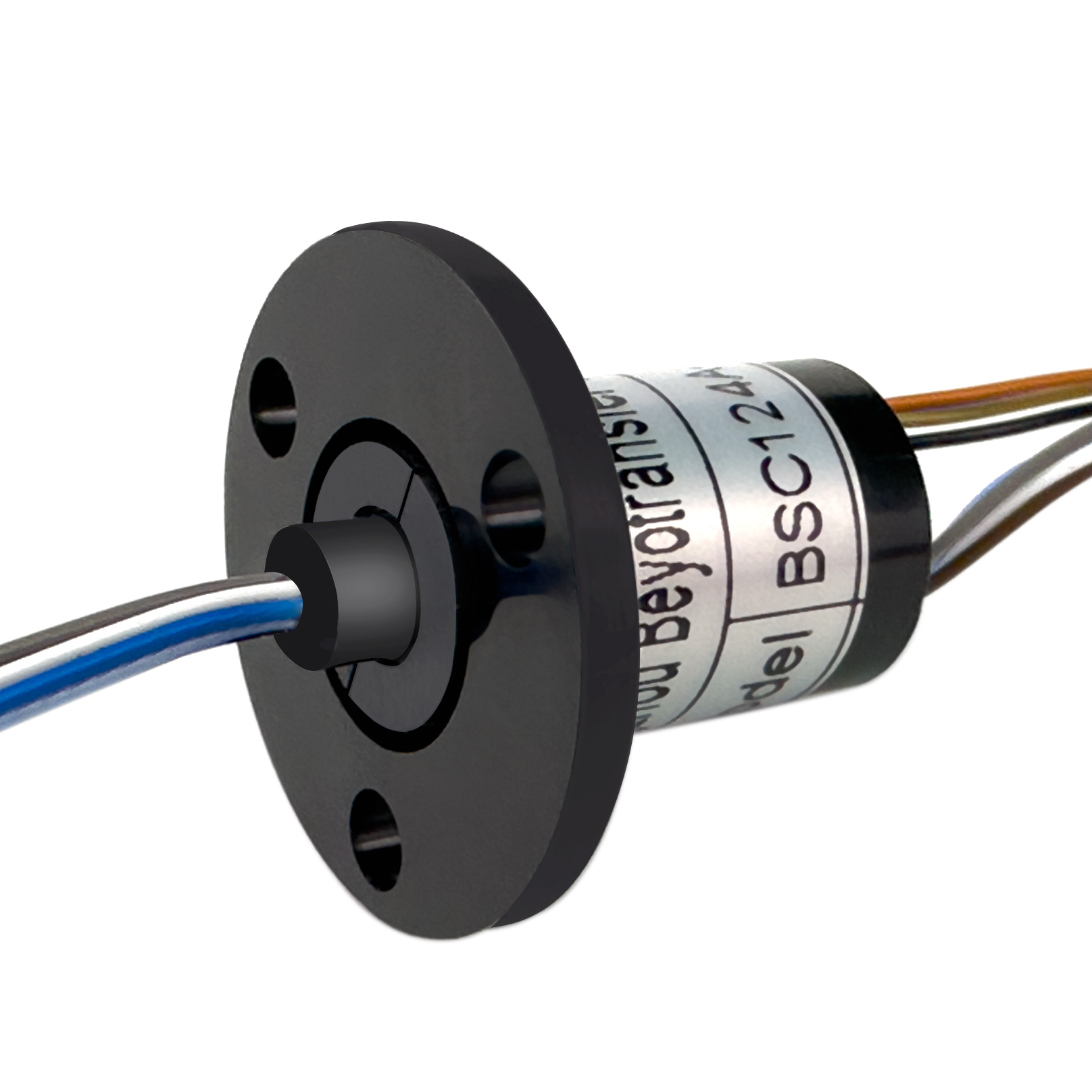

BSC124 is miniature slip ring with OD12.4mm, this mini slip ring allows to transmit 1~18 circuits low controlling signal. It’s compact designed fit for miniature rotating device and easily mounted on hole mechanics, the slip rings adopt gold to gold contact material to ensure high-quality transmission of electrical signals, low friction and wear and low contact resistance, color coded wires on both stator and rotor side.

Quanlity level Product level code Lifespan
Common Quality CQ 2 million revolutions
High Quality HQ 5 million revolutions
Super Quality SQ 8 million revolutions
  • Number of rings, support up to 300 rings
  • Optional for flange mounting
  • Position of wire outlet, wire length
  • ID, OD, Height can be customized if structure limitation
  • Aviation plug, terminal and heat-shrink tube are optional.
  • High temperature can up to 500 degrees.
  • High pressure can up to 110KV
  • Rotating speed can up to 15,000RPM
  • High current up to 5000 amperes.
  • Protection level (dust and water)
  • Optional for housing or structure material
  • Support mixed high speed data transmission(including Ethernet, USB, Profibus, Ethercat, CANOPEN, CANBUS, RS232, RS485, etc.)
  • RF/FORJ/Hybrid Pneumatic rotary union/hydraulic rotary union and electric slip ring can be mixed.
  • Fishing gear
  • Cable reels
  • Packaging
  • Rotary table
  • Wind turbine
  • Machine tools
  • Capping machines
  • Labeling machines
  • Automatic machines
  • Converting machines
  • Exhibit / display equipment
  • Medical,Pharmaceutical equipment
  • Robotics, rotary sensors, urgent illumination equipment
Rings# 1 2 3 4 5 6 7 8 9 10 11 12
Color RED YEL BLK BLU GRN WHT PUP GRY BRN ORN DBLU KHK
Ring# 13 14 15 16 17 18 19 20 21 22 23 24
Color WHT-RED WHT-BLK WHT-BLU WHT-PUP WHT-BRN WHT-GRN WHT-ORN WHT-YEL WHT-GRY WHT-RED WHT-BLU WHT-GRN

Note: 24 wires for 1 group color, from 25-48, repeat the same color as 1 to 24, or indicated by number code pipe.

Customer requirements drive us improving to perfect for a win-win situation
