Electrical Data			Mechanical Data
No. Of Ethernet	1~2 channels	Connector		RJ45
Rated Voltage	0~240 VAC/VDC	Outer Diameter		25mm
Rated Current	2A/ring, 10A/ring, 20A/ring	Working Speed		0-300rpm
Lead Size	Sliver plated Teflon colour coded AWG26(2A), AWG22(5A), AWG14(20A)	Working Temperature		-20℃~+80℃
Lead Length	Standard 250mm (adjustable)	Working Humidity		60% RH or higher
Dielectric Strength	500VAC@50HZ,60S	Housing Material		Engineering plastic
Insulation Resistance	500MΩ/500VDC	Contact material		Gold to gold
Electrical Noise	＜0.01Ω	IP rating		IP51~IP68

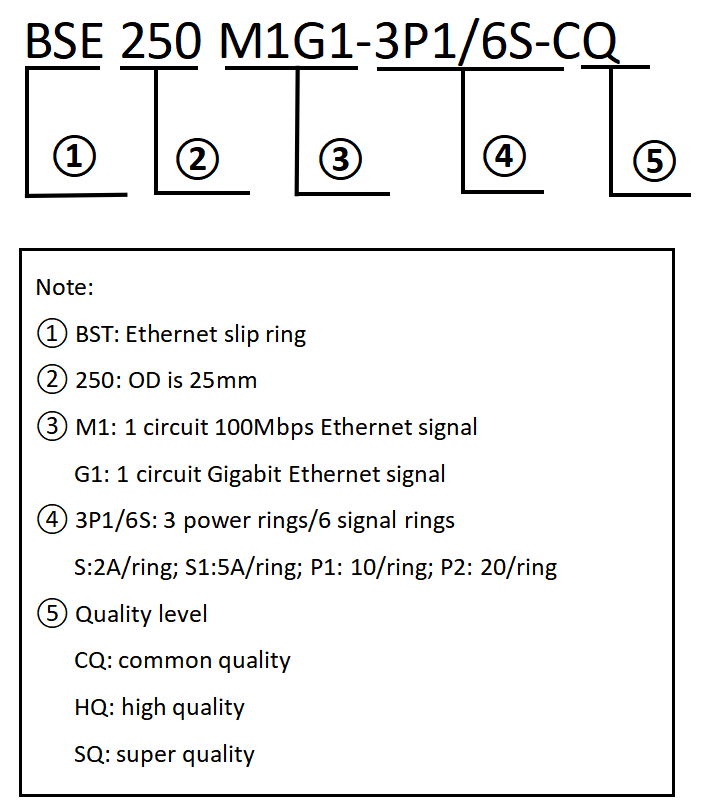

Model list

Model	No. Of power/signal			No. Of Ethernet		Length (mm)
	Signal (2A)	Power （5A）	Power （20A）	100M Ethernet	Gigabit Ethernet
BSE250-M1-24S	24	0	0	1	0	51
BSE250-M1-2S1/20S	20	2	0	1	0	51
BSE250-M1-10S1	0	10	0	1	0	51
BSE250-M1-5S1/12S	12	5	0	1	0	51
BSE250-M1-2P2/8S	8		2	1	0	51
BSE250-G1-20S	20	0	0	0	1	51
BSE250-M1G1-15S	15	0	0	1	1	51
BSE250-G2-12S	12	0	0	0	2	51
BSE250-M1-30S	30	0	0	1	0	60.5
BSE250-G1-2S1/20S	20	2	0	0	1	60.5
BSE250-M1G1-6S1/10S	10	6	0	1	1	60.5
BSE250-G2-4S1/10S	10	4	0	0	2	60.5
BSE250-M1-40S	40	0	0	1	0	73.5
BSE250-G1-38S	38	0	0	0	1	73.5
BSE250-G2-2S1/20S	20	2	0	0	2	73.5
BSE250-M1-2S1/48S	48	2	0	1	0	89.5
BSE250-G1-4S1/40S	40	4	0	0	1	89.5
BSE250-G2-40S	40	0	0	0	2	89.5

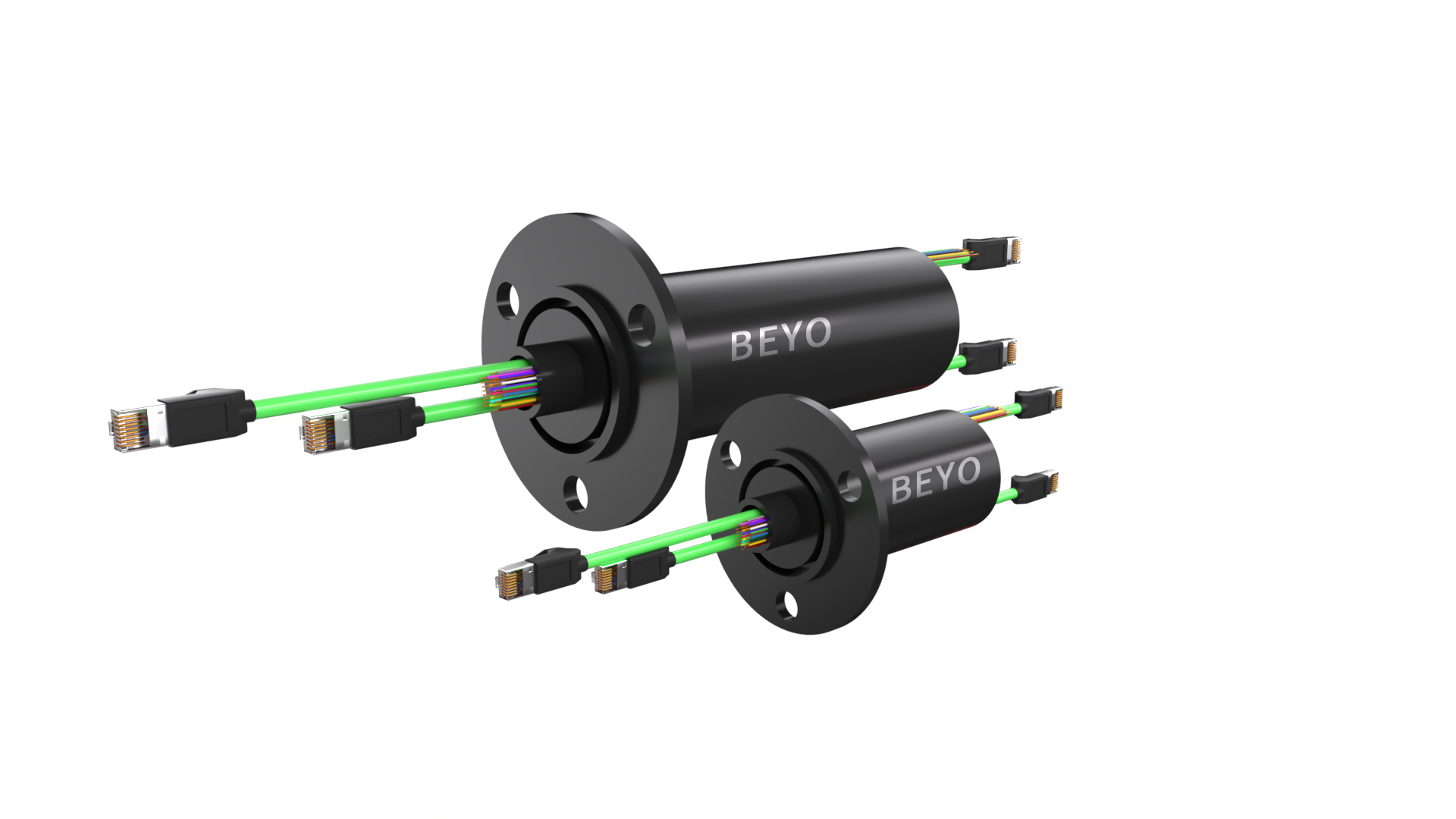

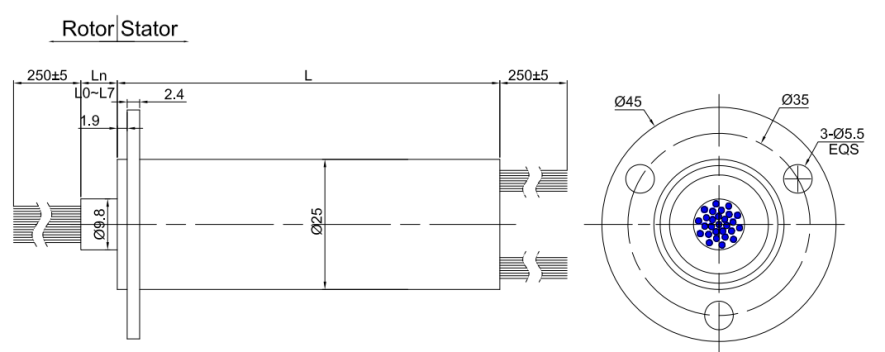

  Model BSE250 is a capsule slip ring which provides 1~2 circuits of 100M Mbps or Gigabit Ethernet signal transmission, BSE250 Ethernet slip ring with OD 25mm, suitable for rotating device which requires a OD ≤25mm, color coded wires on both stator and rotor side, this model supports 1-40 signal rings with current capability 0~20A/ring. BSE250 series adopt fiber brushes gold to gold contact material with the advantages of reliable transmitting, no packet loss, low return loss and insertion loss.

Quanlity level	Product level code	Lifespan
Common Quality	CQ	5 million revolutions
High Quality	HQ	8 million revolutions

• Number of rings, support up to 300 rings
• Optional for flange mounting
• Position of wire outlet, wire length
• ID, OD, Height can be customized if structure limitation
• Aviation plug, terminal and heat-shrink tube are optional.
• High temperature can up to 500 degrees.
• High pressure can up to 110KV
• Rotating speed can up to 15,000RPM
• High current up to 5000 amperes.
• Protection level (dust and water)
• Optional for housing or structure material
• Support mixed high speed data transmission(including Ethernet, USB, Profibus, Ethercat, CANOPEN,CANBUS, RS232, RS485, etc.)
• RF/FORJ/Hybrid Pneumatic rotary union/hydraulic rotary union and electric slip ring can be mixed.

• Cable reels
• Packaging
• Rotary table
• Wind turbine
• Machine tools
• Capping machines
• Labeling machines
• Automatic machines
• Converting machines
• Exhibit / display equipment
• Medical,Pharmaceutical equipment
• Robotics, rotary sensors, urgent illumination equipment

Rings#	1	2	3	4	5	6	7	8	9	10	11	12
Color	RED	YEL	BLK	BLU	GRN	WHT	PUP	GRY	BRN	ORN	DBLU	KHK

Note: 12 wires for 1 group color, from 13-24, repeat the same color as 1 to 12, or indicated by number code pipe.
