BSH2578

BSH2578

  • Multi-point fiber brush contact material ensure long life and low friction
  • Integrated structure design for easy installation
  • Standard model supports 1-48 rings(0~5A/ring)
  • Cost-effective
  • Working temperature up to 2800C
  • Both the data bus agreement compatible
  • Combine with RF, FORJ and fluid rotary joints
Electrical Data
  Power Signal
Rated Current 10A/ring 5A/ring
Rated Voltage 0~380VAC/VDC 0~240VAC/VDC
Insulation Resistance ≥1000MΩ/500VDC ≥500MΩ/500VDC
Dielectric Strength 1000VAC@50Hz,60s 500VAC@50Hz,60s
Wire Size Sliver plated Teflon AWG16 (10A) Sliver plated Teflon AWG22(5A)
Mechanical Data
Wire Length Standard 500mm (adjustable)
Dynamic Resistance <0.01Ω
Max. Speed 0-250 rpm
Working Temperature -20℃~+80℃
Working Humidity 0-85% RH
Structure Material Metal
Contact material Precious metal/silver plated/gold plated
Protection level IP51
      Model list
Model Power(10A) Signal(5A) Length(mm)
BSH2578-6P 6 70
BSH2578-12S 12 70
BSH2578-12P 12 94
BSH2578-6P/12S 6 12 94
BSH2578-24S 24 94
BSH2578-18P 18 118
BSH2578-12P/12S 12 12 118
BSH2578-6P/24S 6 24 118
BSH2578-36S 36 115
BSH2578-24P 24 142
BSH2578-18P/12S 18 12 142
BSH2578-12P/24S 12 24 142
BSH2578-6P/36S 6 36 142
BSH2578-48S 48 142

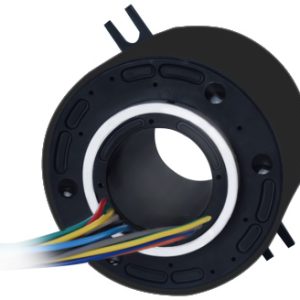

BSH Series is designed for specialized high temperature slip rings. Model BSH2578 is a hollow slip ring provides 25.4mm through hole with OD 78 mm, suitable for rotating application which requires a through hole ≤25.4mm, it’s required to be easily mounted on the shaft, this model supports 1-48 rings, it can transmit power ring 10A/ring and signal 5A/ring, working temperature can reach 2800C.   We understand that every high temperature application is unique, if standard models can not meet your demand, a tailored solutions will be offered according to your specific needs to ensure that our slip rings perfectly fit your system, please send your requirements on line or contact us at info@beyotrans.com for assistance.

  • Number of rings, support up to 300 rings
  • Optional for flange mounting
  • Position of wire outlet, wire length
  • ID, OD, Height can be customized if structure limitation
  • Aviation plug, terminal and heat-shrink tube are optional.
  • High temperature can up to 500 degrees.
  • High voltage can up to 110KV
  • Rotating speed can up to 15,000RPM
  • High current up to 5000 amperes.
  • Protection level (dust and water)
  • Optional for housing or structure material
  • Support mixed high speed data transmission(including Ethernet, USB, Profibus, Ethercat, CANOPEN, CANBUS, RS232, RS485, etc.)
  • RF/FORJ/Hybrid Pneumatic rotary union/hydraulic rotary union and electric slip ring can be mixed.
  • Cable reels
  • Packaging
  • Rotary table
  • Wind turbine
  • Machine tools
  • Capping machines
  • Labeling machines
  • Automatic machines
  • Converting machines
  • Exhibit / display equipment
  • Medical,Pharmaceutical equipment
  • Robotics, rotary sensors, urgent illumination equipment
Rings# 1 2 3 4 5 6 7 8 9 10 11 12
Color RED YEL BLK BLU GRN WHT PUP GRY BRN ORN DBLU KHK

Note: 12 wires for 1 group color, from 13-24, repeat the same color as 1 to 12, or indicated by number code pipe.

Customer requirements drive us improving to perfect for a win-win situation
