BSH80180

BSH80180

  • Multi-point fiber brush contact material ensure long life and low friction
  • Integrated structure design for easy installation
  • Standard model supports 1-96 rings (0~20A/ring)
  • Cost-effective
  • Working temperature can reach 2800C
  • Both the data bus agreement compatible
  • Combine with RF, FORJ and fluid rotary joints
Electrical Data
  Power Signal
Rated Current 10A/15A/20A/ring 5A/ring
Rated Voltage 0~380VAC/VDC 0~240VAC/VDC
Insulation Resistance ≥1000MΩ/500VDC ≥500MΩ/500VDC
Dielectric Strength 1000VAC@50Hz,60s 500VAC@50Hz,60s
Wire Size Sliver plated Teflon AWG16 (10A) Sliver plated Teflon AWG14(15A/20A) Sliver plated Teflon AWG22(5A)
Mechanical Data
Wire Length Standard 500mm (adjustable)
Dynamic Resistance <0.01Ω
Max. Speed 0-250 rpm
Working Temperature -20℃~+80℃
Working Humidity 0-85% RH
Structure Material Metal
Contact material Precious metal/silver plated/gold plated
Protection level IP51

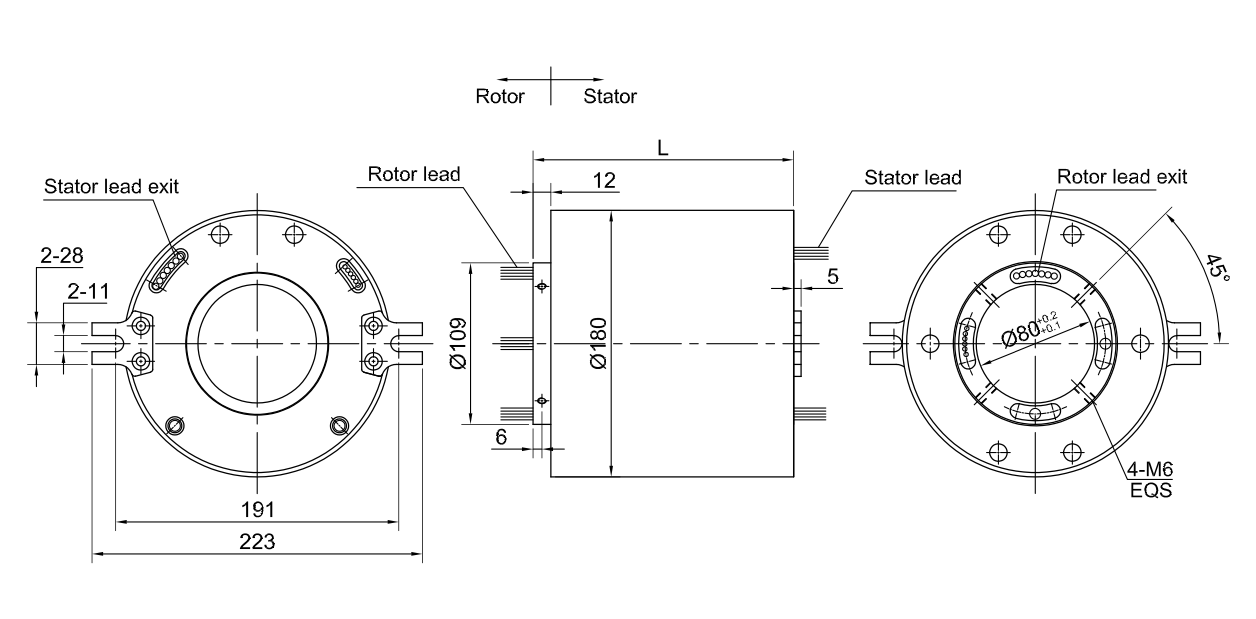

  Model list
Model Power 10A~20A Signal5A L(mm) Model Power 10A~20A Signal 5A L(mm)
BSH80180-6P 6 105 BSH80180-24P/24S 24 24 255
BSH80180-12S 12 105 BSH80180-18P/36S 18 36 255
BSH80180-12P 12 135 BSH80180-12P/48S 12 48 255
BSH80180-6P/12S 6 12 135 BSH80180-6P/60S 6 60 255
BSH80180-24S 24 135 BSH80180-72S 72 255
BSH80180-18P 18 165 BSH80180-42P 42 285
BSH80180-12P/12S 12 12 165 BSH80180-36P/12S 36 12 285
BSH80180-6P/24S 6 24 165 BSH80180-30P/24S 30 24 285
BSH80180-36S 36 165 BSH80180-24P/36S 24 36 285
BSH80180-24P 24 195 BSH80180-18P/48S 18 48 285
BSH80180-18P/12S 18 12 195 BSH80180-12P/60S 12 60 285
BSH80180-12P/24S 12 24 195 BSH80180-6P/72S 6 72 285
BSH80180-6P/36S 6 36 195 BSH80180-84S 84 285
BSH80180-48S 48 195 BSH80180-48P 48 315
BSH80180-30P 30 225 BSH80180-42P/12S 42 12 315
BSH80180-24P/12S 24 12 225 BSH80180-36P/24S 36 24 315
BSH80180-18P/24S 18 24 225 BSH80180-30P/36S 30 36 315
BSH80180-12P/36S 12 36 225 BSH80180-24P/48S 24 48 315
BSH80180-6P/48S 6 48 225 BSH80180-18P/60S 18 60 315
BSH80180-60S 60 225 BSH80180-12P/72S 12 72 315
BSH80180-36P 36 255 BSH80180-6P/84S 6 84 315
BSH80180-30P/12S 30 12 255 BSH80180-96S 96 315

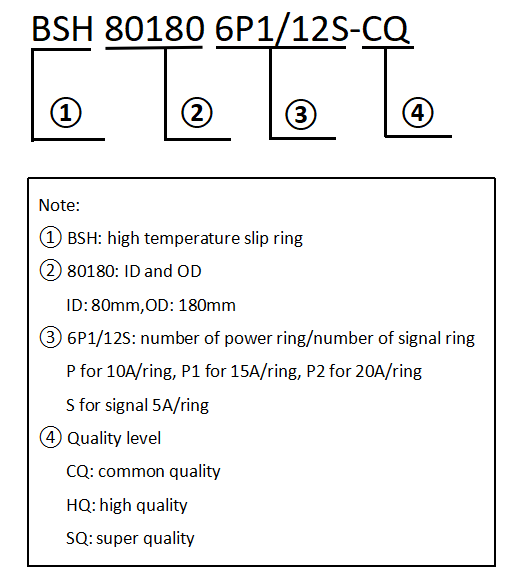

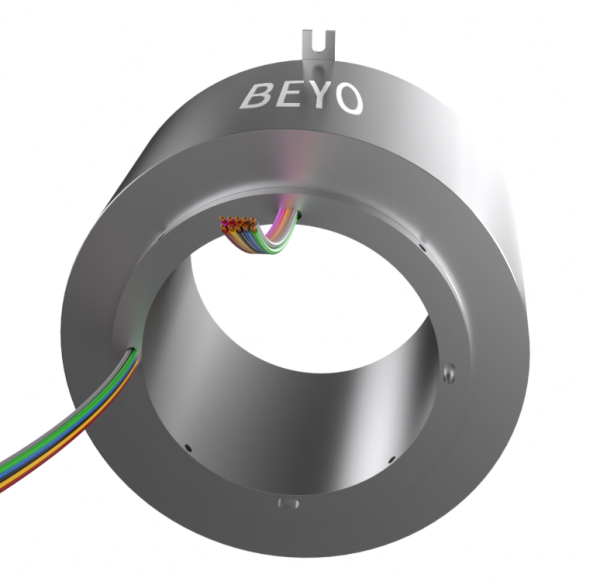

BSH Series is designed for specialized high temperature slip rings. Model BSW80180 is a hollow slip ring provides 80mm through hole with OD 180 mm, suitable for rotating application which requires a through hole ≤80mm, it’s required to be easily mounted on the shaft, this model supports 1-96 rings, it can transmit power ring 10A ~20A/ring and signal 5A/ring, working temperature can reach 2800C.   We understand that every high temperature application is unique, if standard models can not meet your demand, a tailored solutions will be offered according to your specific needs to ensure that our slip rings perfectly fit your system, please send your requirements on line or contact us at info@beyotrans.com for assistance.

Quanlity level Product level code Lifespan
Common Quality CQ 20 million revolutions
High Quality HQ 50 million revolutions
Super Quality SQ 80 million revolutions
  • Number of rings, support up to 300 rings
  • Optional for flange mounting
  • Position of wire outlet, wire length
  • ID, OD, Height can be customized if structure limitation
  • Aviation plug, terminal and heat-shrink tube are optional.
  • High temperature can up to 500 degrees.
  • High voltage can up to 110KV
  • Rotating speed can up to 15,000RPM
  • High current up to 5000 amperes.
  • Protection level (dust and water)
  • Optional for housing or structure material
  • Support mixed high speed data transmission(including Ethernet, USB, Profibus, Ethercat, CANOPEN, CANBUS, RS232, RS485, etc.)
  • RF/FORJ/Hybrid Pneumatic rotary union/hydraulic rotary union and electric slip ring can be mixed.
  • Cable reels
  • Packaging
  • Rotary table
  • Wind turbine
  • Machine tools
  • Capping machines
  • Labeling machines
  • Automatic machines
  • Converting machines
  • Exhibit / display equipment
  • Medical,Pharmaceutical equipment
  • Robotics, rotary sensors, urgent illumination equipment
Rigns# 1 2 3 4 5 6 7 8 9 10 11 12
Color RED YEL BLK BLU GRN WHT PUP GRY BRN ORN DBLU KHK

Note: 12 wires for 1 group color, from 13-24, repeat the same color as 1 to 12, or indicated by number code
