Electrical Data			Mechanical Data
	Power	Signal	Inner Diameter	38.1mm
Rated Current	10A	5A	Max. Speed	0-100 rpm
Rated Voltage	0~380VAC/VDC	0~380VAC/VDC	Working Temperature	-30℃~+80℃
Insulation Resistance	≥1000MΩ/500VDC	≥1000MΩ/500VDC	Working Humidity	0-85% RH
Dielectric Strength	500VAC@50Hz,60s	500VAC@50Hz,60s	Structure Material	Aluminum alloy
Wire Length	Standard 250mm(adjustable)		Contact material	Precious metal
Dynamic Resistance	＜0.01Ω		Protection level	IP51

  Model list

Model	Signal 5A/ring	Power 10A/ring	ID(mm)	OD(mm)	Height(mm)
BSP038-2S	2	0	25.4	76	25
BSP038-4S	4	0	25.4	92	25
BSP038-6S	6	0	25.4	108	25
BSP038-3P/3S	3	3	25.4	108	25
BSP038-6P	0	6	25.4	108	25
BSP038-12S	12	0	25.4	156	25
BSP038-6P/6S	6	6	25.4	156	25
BSP038-12P	0	12	25.4	156	25
BSP038-18S	18	0	25.4	204	25
BSP038-24S	24	0	25.4	252	25

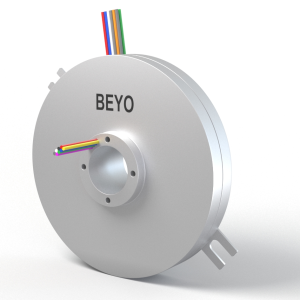

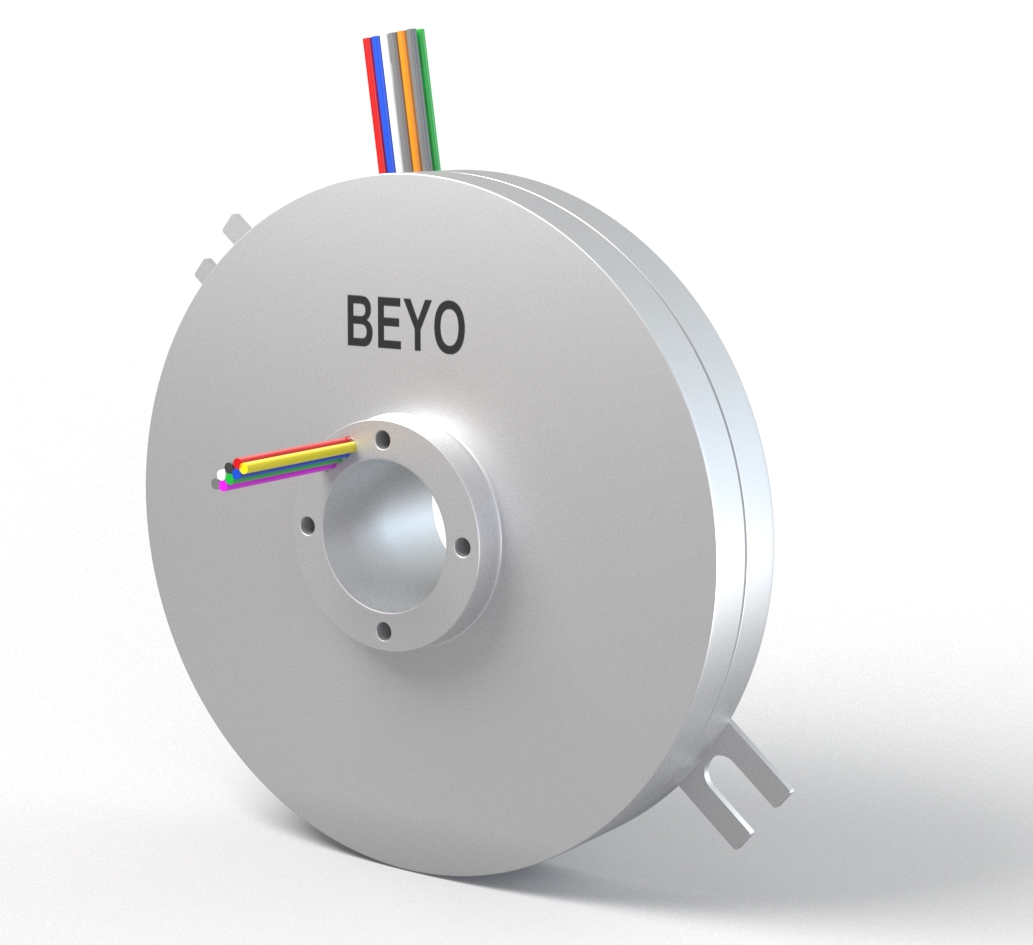

The model of PCB038 is a pancake slip ring with through hole 38.1mm and 25mm thickness, suitable for rotating application which requires power ans signal transmission through a hole ≤38.1mm. BEYO TRANSFER applies noble precious metal reduced noises and interference between rings, low friction torque assures long life-span, our standard model supports 1-24rings signal(0~10A/ring),color coded wires on both stator and rotor side.

Quanlity level	Product level code	Lifespan
Common Quality	CQ	10 million revolutions
High Quality	HQ	20 million revolutions
Super Quality	SQ	30 million revolutions

• Number of rings, support up to 300 rings
• Optional for flange mounting
• Position of wire outlet, wire length
• ID, OD, Height can be customized if structure limitation
• Aviation plug, terminal and heat-shrink tube are optional.
• High temperature can up to 500 degrees.
• High pressure can up to 110KV
• Rotating speed can up to 15,000RPM
• High current up to 5000 amperes.
• Protection level (dust and water)
• Optional for housing or structure material
• Support mixed high speed data transmission(including Ethernet, USB, Profibus, Ethercat, CANOPEN, CANBUS, RS232, RS485, etc.)
• RF/FORJ/Hybrid Pneumatic rotary union/hydraulic rotary union and electric slip ring can be mixed.

• CT
• Crane
• Cable reels
• Packaging
• Rotary table
• Wind turbine
• Machine tools
• Filling machine
• LED rotating light
• Automatic machines
• Converting machines
• Exhibit / display equipment
• Medical,Pharmaceutical equipment
• Robotics, rotary sensors, urgent illumination equipment

Rings#	1	2	3	4	5	6	7	8	9	10	11	12
Color	RED	YEL	BLK	BLU	GRN	WHT	PUP	GRY	BRN	ORN	DBLU	KHK

Note: 12 wires for 1 group color, from 13-24, repeat the same color as 1 to 12, or indicated by number code pipe.
