BST400632

BST400632

  • Multi-point fiber brush contact material ensure long life and low friction
  • Integrated structure design for easy installation
  • Standard model supports 1-96 rings (0~20A/ring)
  • Cost-effective
  • IP 51 (IP54-IP68 can be customized)
  • Both the data bus agreement compatible
  • Combine with RF, FORJ and fluid rotary joints
Electrical Data
Power Signal
Rated Current 10A/15A/20A/ring 5A/ring
Rated Voltage 0~380VAC/VDC 0~240VAC/VDC
Insulation Resistance ≥1000MΩ/500VDC ≥500MΩ/500VDC
Dielectric Strength 1000VAC@50Hz,60s 500VAC@50Hz,60s
Wire Size Sliver plated Teflon AWG16 (10A) Sliver plated Teflon AWG14(15A/20A) Sliver plated Teflon AWG22(5A)
Mechanical Data
Wire Length Standard 500mm (adjustable)
Dynamic Resistance <0.01Ω
Max. Speed 0-250 rpm
Working Temperature -20℃~+80℃
Working Humidity 0-85% RH
Structure Material Engineering plastic
Contact material Precious metal/silver plated/gold plated
Operating Torque 0.1N·m for 6 rings, 0.03 N·m increased for every 6 rings added
Protection level IP51
  Model list
Model Power 10A~20A Signal5A L(mm) Model Power 10A~20A Signal 5A L(mm)
BST400632-6P 6 200 BST400632-24P/24S 24 24 467
BST400632-12S 12 200 BST400632-18P/36S 18 36 467
BST400632-12P 12 254 BST400632-12P/48S 12 48 467
BST400632-6P/12S 6 12 254 BST400632-6P/60S 6 60 467
BST400632-24S 24 254 BST400632-72S 72 467
BST400632-18P 18 308 BST400632-42P 42 521
BST400632-12P/12S 12 12 308 BST400632-36P/12S 36 12 521
BST400632-6P/24S 6 24 308 BST400632-30P/24S 30 24 521
BST400632-36S 36 308 BST400632-24P/36S 24 36 521
BST400632-24P 24 359 BST400632-18P/48S 18 48 521
BST400632-18P/12S 18 12 359 BST400632-12P/60S 12 60 521
BST400632-12P/24S 12 24 359 BST400632-6P/72S 6 72 521
BST400632-6P/36S 6 36 359 BST400632-84S 84 521
BST400632-48S 48 359 BST400632-48P 48 575
BST400632-30P 30 413 BST400632-42P/12S 42 12 575
BST400632-24P/12S 24 12 413 BST400632-36P/24S 36 24 575
BST400632-18P/24S 18 24 413 BST400632-30P/36S 30 36 575
BST400632-12P/36S 12 36 413 BST400632-24P/48S 24 48 575
BST400632-6P/48S 6 48 413 BST400632-18P/60S 18 60 575
BST400632-60S 60 413 BST400632-12P/72S 12 72 575
BST400632-36P 36 467 BST400632-6P/84S 6 84 575
BST400632-30P/12S 30 12 467 BST400632-96S 96 575

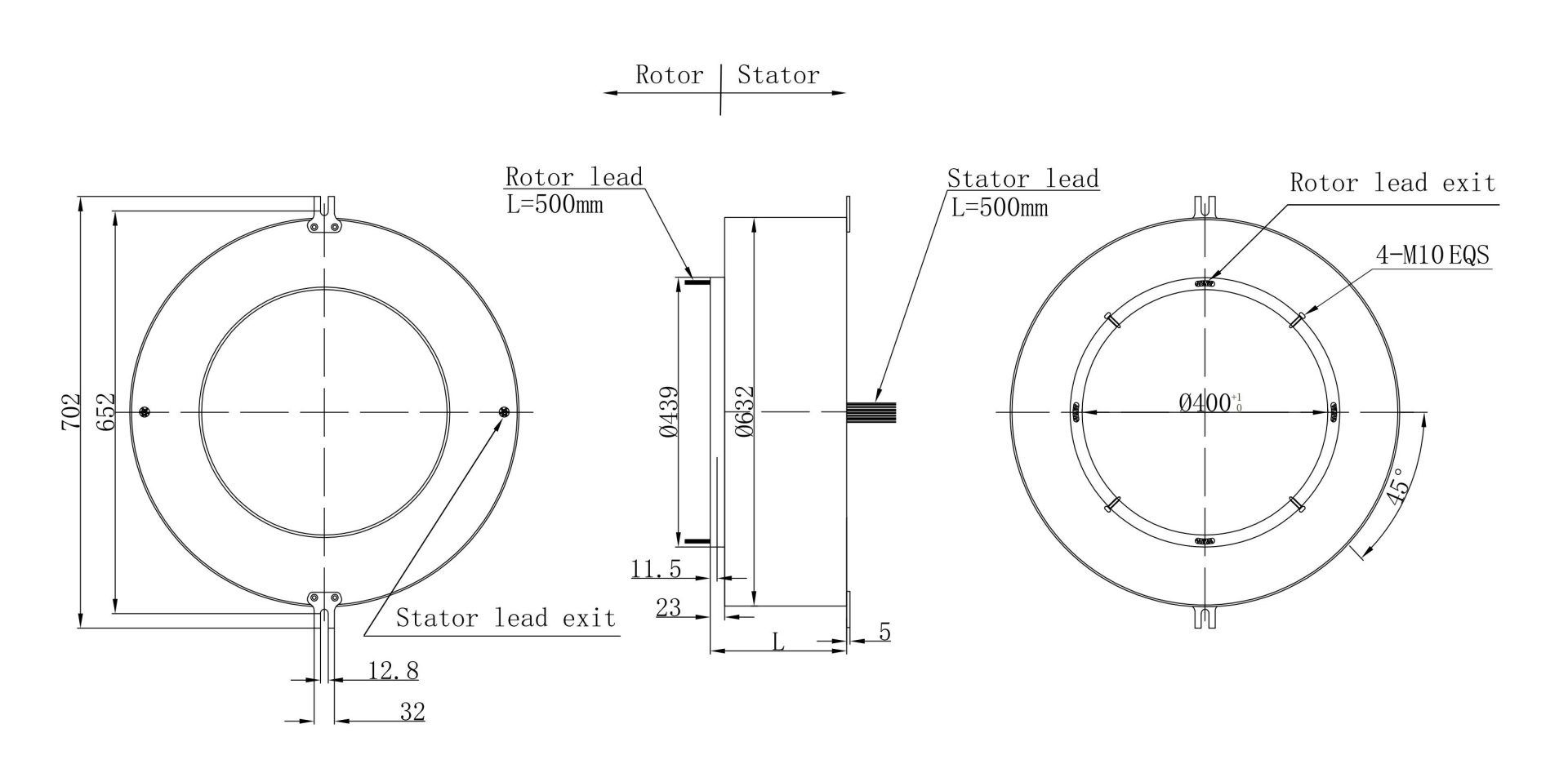

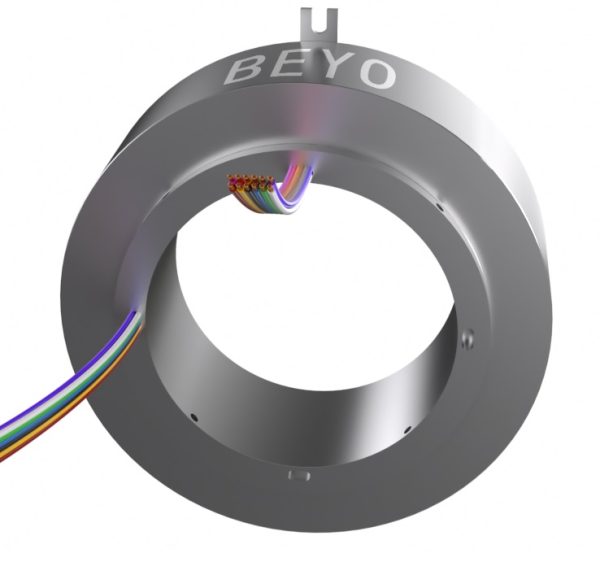

  BST400632 The through bore slip ring provides an economic readily available solution when a compact through hole configuration is required to be easily mounted on the shaft mechanics. Model BST400632 provides 400mm through hole with OD 632 mm, suitable for rotating application which requires a through hole ≤400mm, color coded wires on both stator and rotor side, this model supports 1-96 rings,it can transmit power ring 10A~20A/ring and signal 5A/ring.

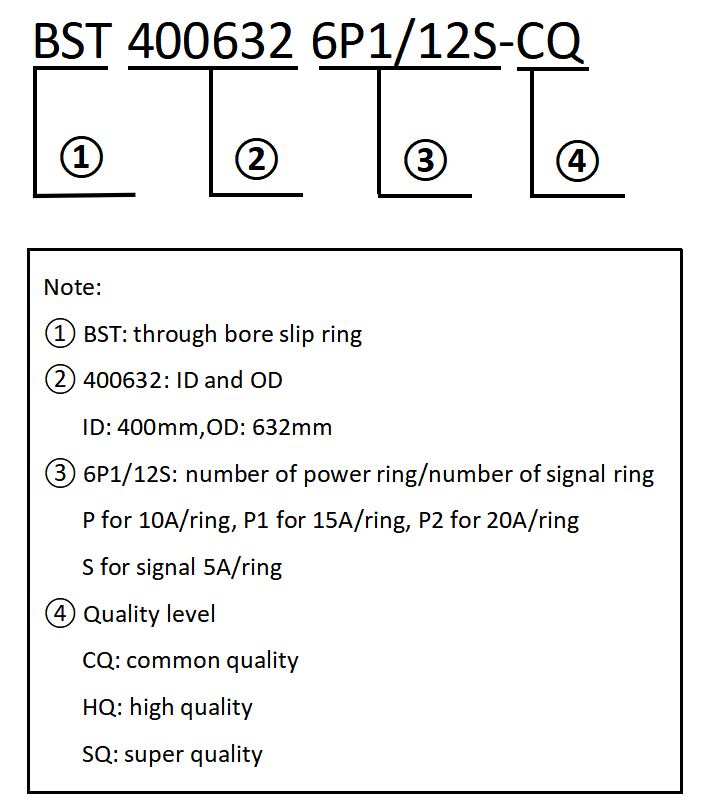

Quanlity level Product level code Lifespan
Common Quality CQ 20 million revolutions
High Quality HQ 50 million revolutions
Super Quality SQ 80 million revolutions
  • Number of rings, support up to 300 rings
  • Optional for flange mounting
  • Position of wire outlet, wire length
  • ID, OD, Height can be customized if structure limitation
  • Aviation plug, terminal and heat-shrink tube are optional.
  • High temperature can up to 500 degrees.
  • High pressure can up to 110KV
  • Rotating speed can up to 15,000RPM
  • High current up to 5000 amperes.
  • Protection level (dust and water)
  • Optional for housing or structure material
  • Support mixed high speed data transmission(including Ethernet, USB, Profibus, Ethercat, CANOPEN,CANBUS, RS232, RS485, etc.)
  • RF/FORJ/Hybrid Pneumatic rotary union/hydraulic rotary union and electric slip ring can be mixed.
  • Cable reels
  • Packaging
  • Rotary table
  • Wind turbine
  • Machine tools
  • Capping machines
  • Labeling machines
  • Automatic machines
  • Converting machines
  • Exhibit / display equipment
  • Medical,Pharmaceutical equipment
  • Robotics, rotary sensors, urgent illumination equipment
Rigns# 1 2 3 4 5 6 7 8 9 10 11 12
Color RED YEL BLK BLU GRN WHT PUP GRY BRN ORN DBLU KHK

Note: 12 wires for 1 group color, from 13-24, repeat the same color as 1 to 12, or indicated by number code
