BST50120

Slip Rings

BST50120

Multi-point fiber brush contact material ensure long life and low friction
Integrated structure design for easy installation
Standard model supports 1-72 rings (0~20A/ring)
Cost-effective
IP 51 (IP54-IP68 can be customized)
Both the data bus agreement compatible
Combine with RF, FORJ and fluid rotary joints

Electrical Data
	Power	Signal
Rated Current	10A/15A/20A/ring	5A/ring
Rated Voltage	0~380VAC/VDC	0~240VAC/VDC
Insulation Resistance	≥1000MΩ/500VDC	≥500MΩ/500VDC
Dielectric Strength	1000VAC@50Hz,60s	500VAC@50Hz,60s
Wire Size	Sliver plated Teflon AWG16 (10A) Sliver plated Teflon AWG14(15A/20A)	Sliver plated Teflon AWG22(5A)
Mechanical Data
Wire Length	Standard 500mm (adjustable)
Dynamic Resistance	＜0.01Ω
Max. Speed	0-250 rpm
Working Temperature	-20℃~+80℃
Working Humidity	0-85% RH
Structure Material	Engineering plastic
Contact material	Precious metal/silver plated/gold plated
Operating Torque	0.1N·m for 6 rings, 0.03 N·m increased for every 6 rings added
Protection level	IP51

Model list

Model	Power(10A/15A/20A)	Signal(5A)	Length(mm)
BST50120-6P	6	–	69.5
BST50120-12S	–	12	69.5
BST50120-12P	12	–	99.5
BST50120-6P/12S	6	12	99.5
BST50120-24S	–	24	99.5
BST50120-18P	18	–	129.5
BST50120-12P/12S	12	12	129.5
BST50120-6P/24S	6	24	129.5
BST50120-36S	–	36	129.5
BST50120-24P	24	–	159.5
BST50120-18P/12S	18	12	159.5
BST50120-12P/24S	12	24	159.5
BST50120-6P/36S	6	36	159.5
BST50120-48S	–	48	159.5
BST50120-30P	30	–	189.5
BST50120-24P/12S	24	12	189.5
BST50120-18P/24S	18	24	189.5
BST50120-12P/36S	12	36	189.5
BST50120-6P/48S	6	48	189.5
BST50120-60S	–	60	189.5
BST50120-36P	36	–	219.5
BST50120-30P/12S	30	12	219.5
BST50120-24P/24S	24	24	219.5
BST50120-18P/36S	18	36	219.5
BST50120-12P/48S	12	48	219.5
BST50120-6P/60S	6	60	219.5
BST50120-72S	–	72	219.5

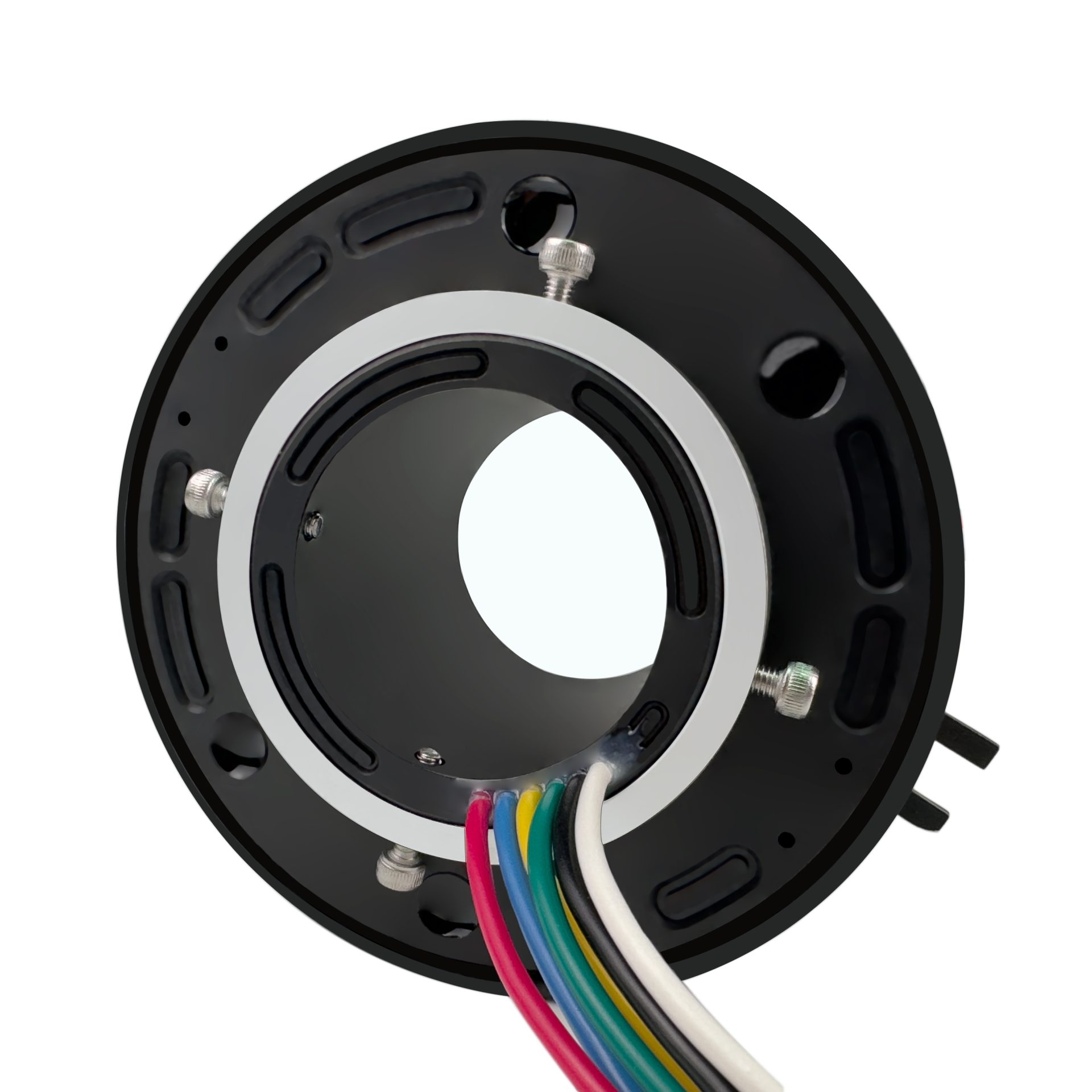

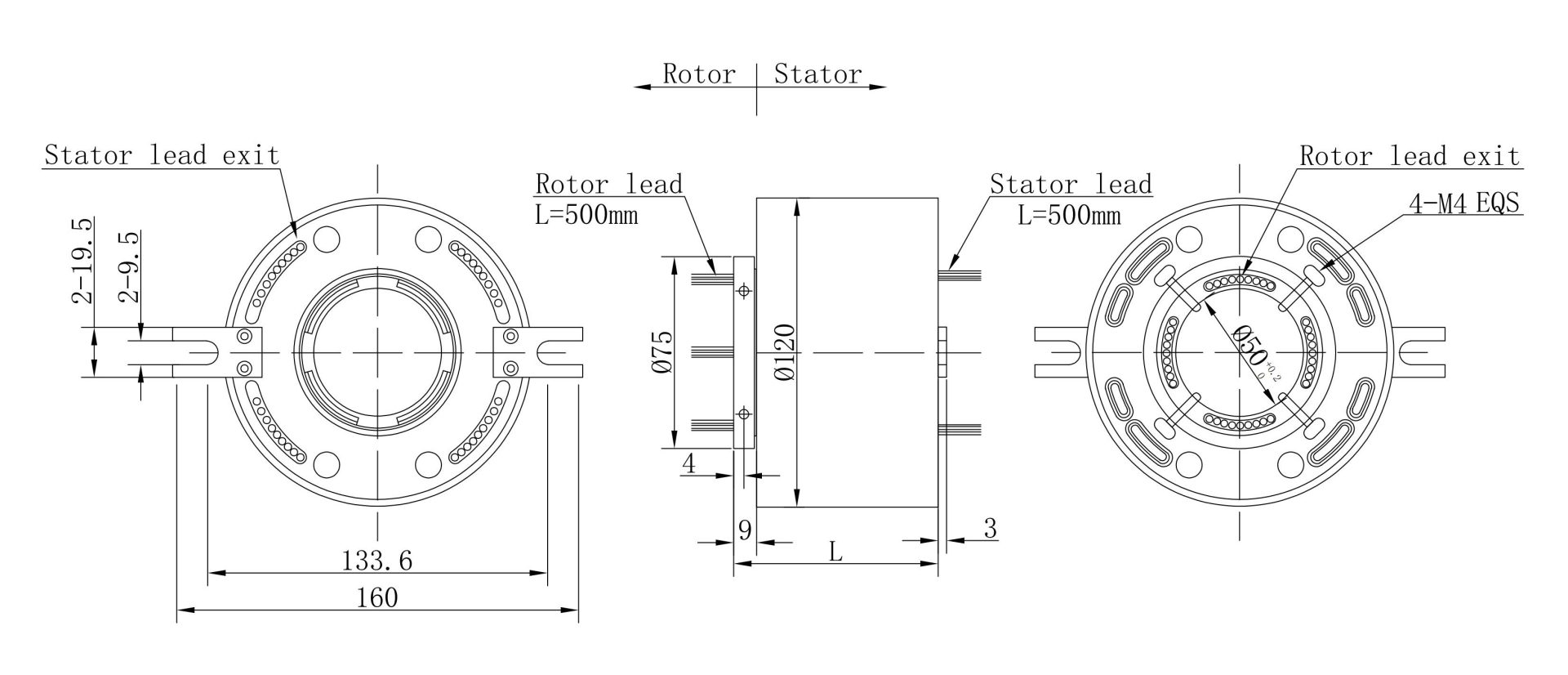

BST50120 Model BST50120 is a hollow slip ring provides 50mm through hole with OD 120 mm, suitable for rotating application which requires a through hole ≤50mm, color coded wires on both stator and rotor side, this model supports 1-72 rings,it can transmit power ring 10A~20A/ring and signal 5A/ring.

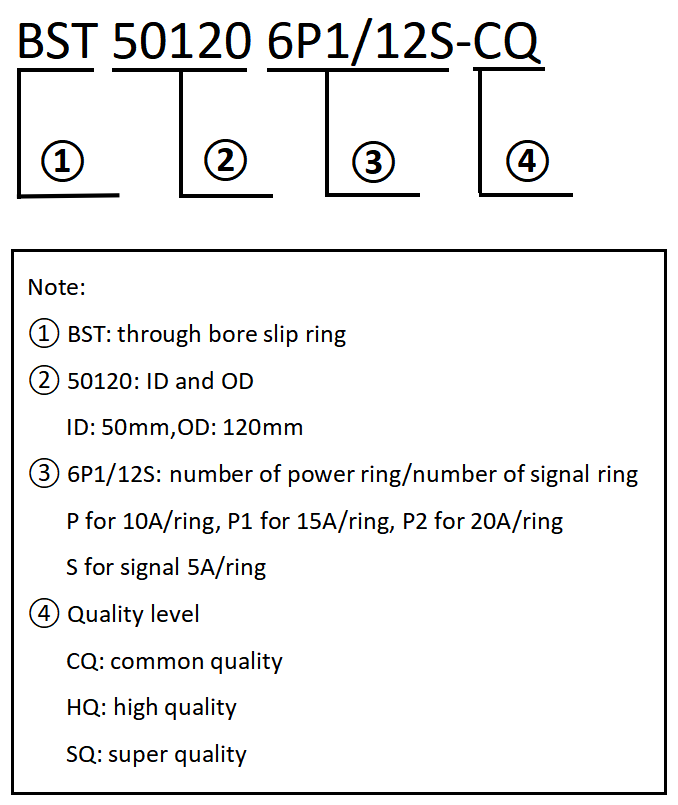

Quanlity level	Product level code	Lifespan
Common Quality	CQ	20 million revolutions
High Quality	HQ	50 million revolutions
Super Quality	SQ	80 million revolutions

Number of rings, support up to 300 rings
Optional for flange mounting
Position of wire outlet, wire length
ID, OD, Height can be customized if structure limitation
Aviation plug, terminal and heat-shrink tube are optional.
High temperature can up to 500 degrees.
High pressure can up to 110KV
Rotating speed can up to 15,000RPM
High current up to 5000 amperes.
Protection level (dust and water)
Optional for housing or structure material
Support mixed high speed data transmission(including Ethernet, USB, Profibus, Ethercat, CANOPEN, CANBUS, RS232, RS485, etc.)
RF/FORJ/Hybrid Pneumatic rotary union/hydraulic rotary union and electric slip ring can be mixed.
