Electrical Data
	Power	Signal
Rated Current	10A/15A/20A/ring	5A/ring
Rated Voltage	0~380VAC/VDC	0~240VAC/VDC
Insulation Resistance	≥1000MΩ/500VDC	≥500MΩ/500VDC
Dielectric Strength	1000VAC@50Hz,60s	500VAC@50Hz,60s
Wire Size	Sliver plated Teflon AWG16 (10A) Sliver plated Teflon AWG14(15A/20A)	Sliver plated Teflon AWG22(5A)
Mechanical Data
Wire Length	Standard 500mm (adjustable)
Dynamic Resistance	＜0.01Ω
Max. Speed	0-250 rpm
Working Temperature	-20℃~+80℃
Working Humidity	0-85% RH
Structure Material	Engineering plastic
Contact material	Precious metal/silver plated/gold plated
Operating Torque	0.1N·m for 6 rings, 0.03 N·m increased for every 6 rings added
Protection level	IP51

  Model list

Model	Power 10A~20A	Signal5A	L(mm)	Model	Power 10A~20A	Signal 5A	L(mm)
BST60135-6P	6	–	77.5	BST60135-24P/24S	24	24	227.5
BST60135-12S	–	12	77.5	BST60135-18P/36S	18	36	227.5
BST60135-12P	12	–	107.5	BST60135-12P/48S	12	48	227.5
BST60135-6P/12S	6	12	107.5	BST60135-6P/60S	6	60	227.5
BST60135-24S	–	24	107.5	BST60135-72S	–	72	227.5
BST60135-18P	18	–	137.5	BST60135-42P	42	–	257.5
BST60135-12P/12S	12	12	137.5	BST60135-36P/12S	36	12	257.5
BST60135-6P/24S	6	24	137.5	BST60135-30P/24S	30	24	257.5
BST60135-36S	–	36	137.5	BST60135-24P/36S	24	36	257.5
BST60135-24P	24	–	167.5	BST60135-18P/48S	18	48	257.5
BST60135-18P/12S	18	12	167.5	BST60135-12P/60S	12	60	257.5
BST60135-12P/24S	12	24	167.5	BST60135-6P/72S	6	72	257.5
BST60135-6P/36S	6	36	167.5	BST60135-84S	–	84	257.5
BST60135-48S	–	48	167.5	BST60135-48P	48	–	287.5
BST60135-30P	30	–	197.5	BST60135-42P/12S	42	12	287.5
BST60135-24P/12S	24	12	197.5	BST60135-36P/24S	36	24	287.5
BST60135-18P/24S	18	24	197.5	BST60135-30P/36S	30	36	287.5
BST60135-12P/36S	12	36	197.5	BST60135-24P/48S	24	48	287.5
BST60135-6P/48S	6	48	197.5	BST60135-18P/60S	18	60	287.5
BST60135-60S	–	60	197.5	BST60135-12P/72S	12	72	287.5
BST60135-36P	36	–	227.5	BST60135-6P/84S	6	84	287.5
BST60135-30P/12S	30	12	227.5	BST60135-96S	–	96	287.5

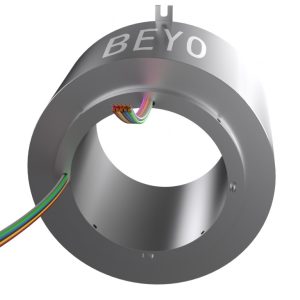

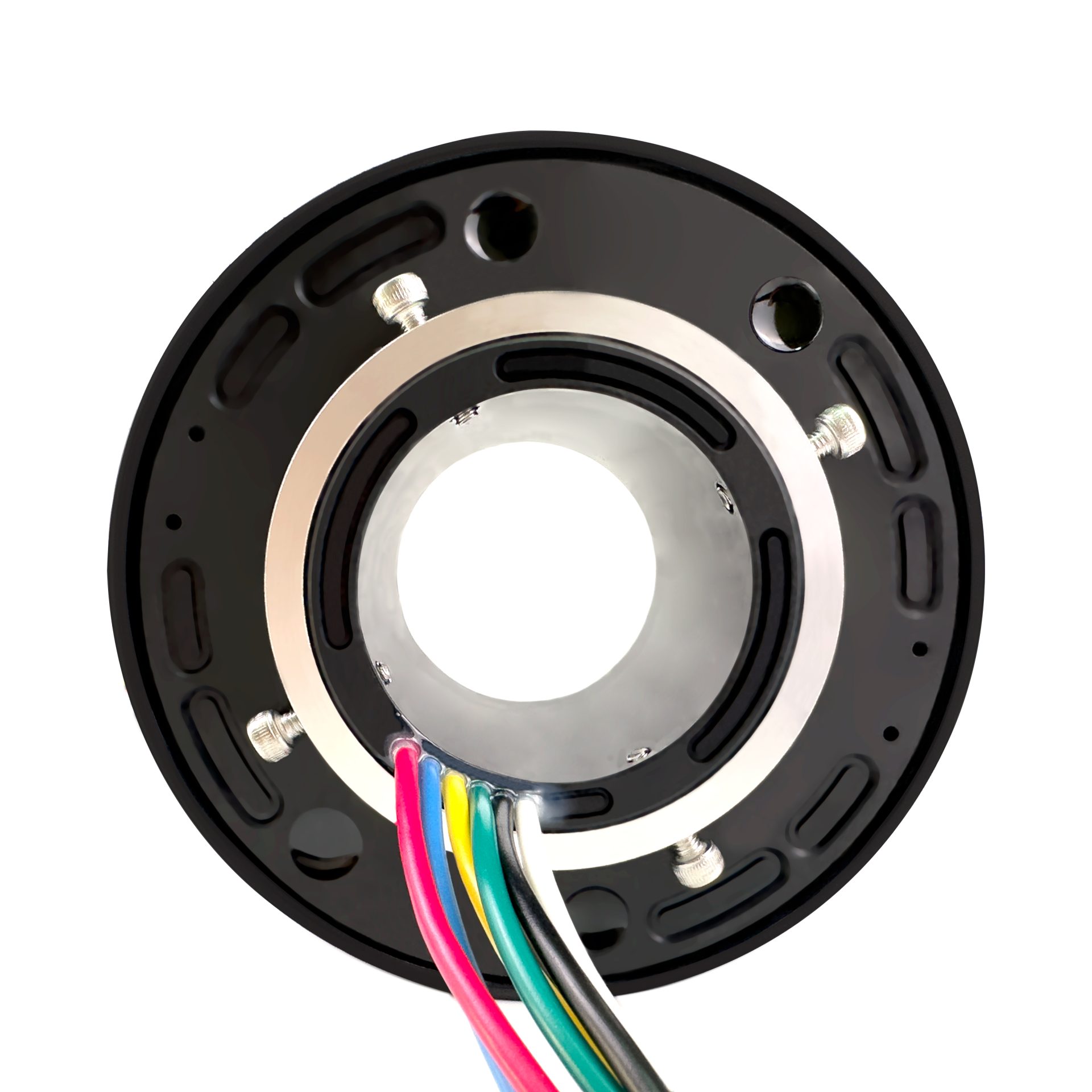

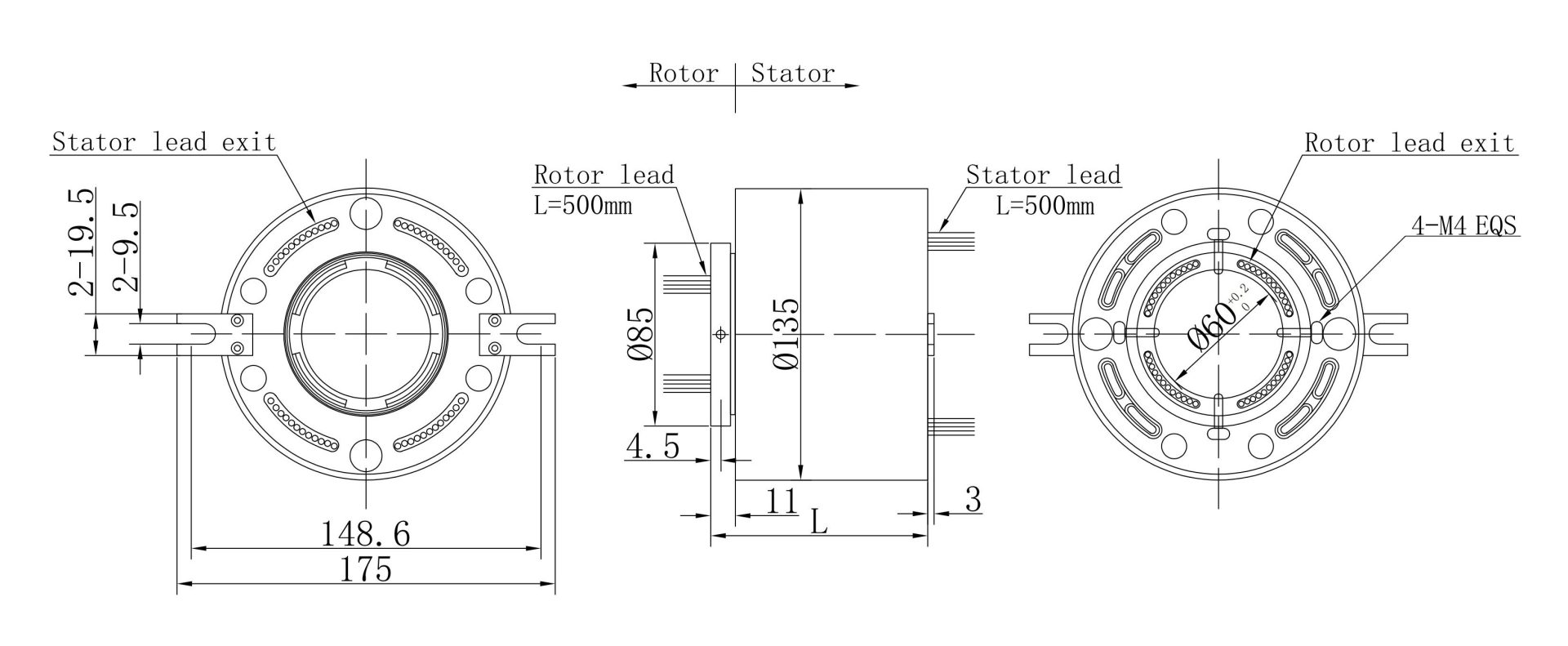

  BST60135 The through bore slip ring provides an economic readily available solution when a compact through hole configuration is required to be easily mounted on the shaft mechanics. Model BST60135 provides 60mm through hole with OD 135 mm, suitable for rotating application which requires a through hole ≤60mm, color coded wires on both stator and rotor side, this model supports 1-96 rings,it can transmit power ring 10A~20A/ring and signal 5A/ring.

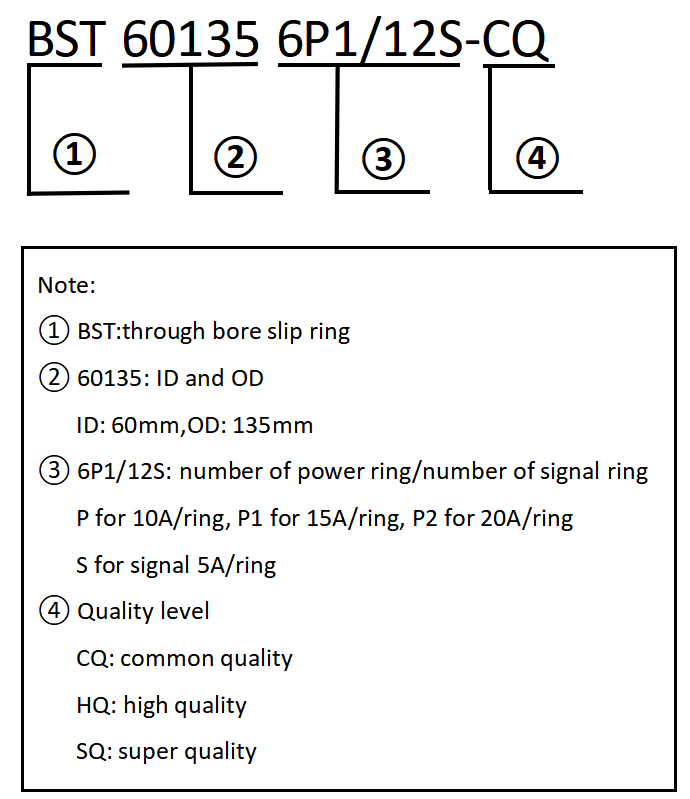

Quanlity level	Product level code	Lifespan
Common Quality	CQ	20 million revolutions
High Quality	HQ	50 million revolutions
Super Quality	SQ	80 million revolutions

• Number of rings, support up to 300 rings
• Optional for flange mounting
• Position of wire outlet, wire length
• ID, OD, Height can be customized if structure limitation
• Aviation plug, terminal and heat-shrink tube are optional.
• High temperature can up to 500 degrees.
• High pressure can up to 110KV
• Rotating speed can up to 15,000RPM
• High current up to 5000 amperes.
• Protection level (dust and water)
• Optional for housing or structure material
• Support mixed high speed data transmission(including Ethernet, USB, Profibus, Ethercat, CANOPEN, CANBUS, RS232, RS485, etc.)
• RF/FORJ/Hybrid Pneumatic rotary union/hydraulic rotary union and electric slip ring can be mixed.

• Cable reels
• Packaging
• Rotary table
• Wind turbine
• Machine tools
• Capping machines
• Labeling machines
• Automatic machines
• Converting machines
• Exhibit / display equipment
• Medical,Pharmaceutical equipment
• Robotics, rotary sensors, urgent illumination equipment

Rigns#	1	2	3	4	5	6	7	8	9	10	11	12
Color	RED	YEL	BLK	BLU	GRN	WHT	PUP	GRY	BRN	ORN	DBLU	KHK

Note: 12 wires for 1 group color, from 13-24, repeat the same color as 1 to 12, or indicated by number code pipe.
