BSW50120

BSW50120

  • Multi-point fiber brush contact material ensure long life and low friction
  • Integrated structure design for easy installation
  • Standard model supports 1-72 rings (0~20A/ring)
  • Cost-effective
  • IP65~IP68
  • Both the data bus agreement compatible
  • Combine with RF, FORJ and fluid rotary joints
Electrical Data
Power Signal
Rated Current 10A/15A/20A/ring 5A/ring
Rated Voltage 0~380VAC/VDC 0~240VAC/VDC
Insulation Resistance ≥1000MΩ/500VDC ≥500MΩ/500VDC
Dielectric Strength 1000VAC@50Hz,60s 500VAC@50Hz,60s
Wire Size Sliver plated Teflon AWG16 (10A) Sliver plated Teflon AWG14(15A/20A) Sliver plated Teflon AWG22(5A)
Mechanical Data
Wire Length Standard 500mm (adjustable)
Dynamic Resistance <0.01Ω
Max. Speed 0-250 rpm
Working Temperature -20℃~+80℃
Working Humidity 0-85% RH
Structure Material Metal
Contact material Precious metal/silver plated/gold plated
Protection level IP65~IP68
  Model list
Model Power(10A/15A/20A) Signal(5A) Length(mm)
BSW50120-6P 6 90
BSW50120-12S 12 90
BSW50120-12P 12 120
BSW50120-6P/12S 6 12 120
BSW50120-24S 24 120
BSW50120-18P 18 150
BSW50120-12P/12S 12 12 150
BSW50120-6P/24S 6 24 150
BSW50120-36S 36 150
BSW50120-24P 24 180
BSW50120-18P/12S 18 12 180
BSW50120-12P/24S 12 24 180
BSW50120-6P/36S 6 36 180
BSW50120-48S 48 180
BSW50120-30P 30 210
BSW50120-24P/12S 24 12 210
BSW50120-18P/24S 18 24 210
BSW50120-12P/36S 12 36 210
BSW50120-6P/48S 6 48 210
BSW50120-60S 60 210
BSW50120-36P 36 240
BSW50120-30P/12S 30 12 240
BSW50120-24P/24S 24 24 240
BSW50120-18P/36S 18 36 240
BSW50120-12P/48S 12 48 240
BSW50120-6P/60S 6 60 240
BSW50120-72S 72 240

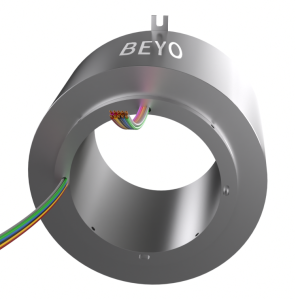

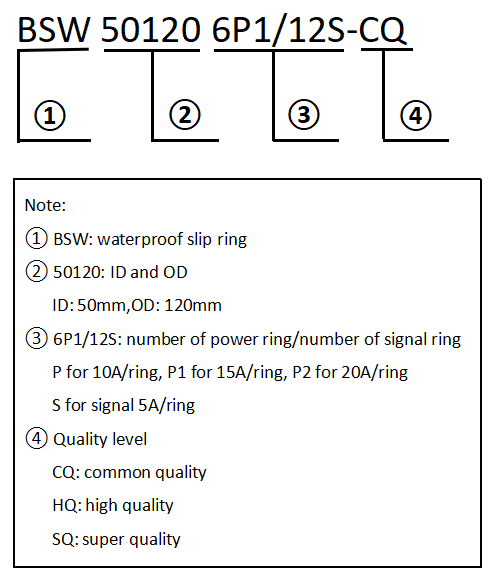

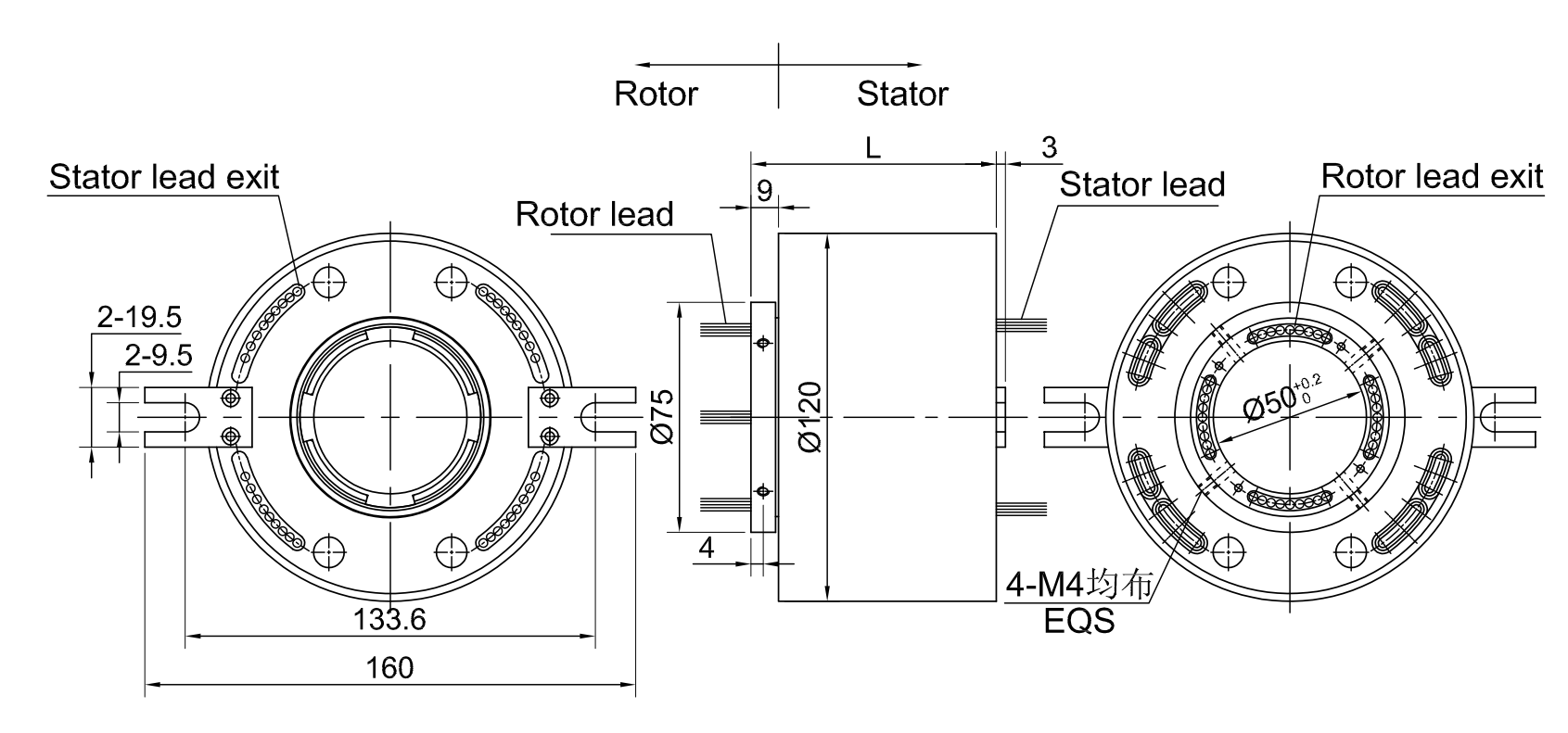

BSW Series is designed for specialized waterproof slip rings. Model BSW50120 is a hollow slip ring provides 50mm through hole with OD 120 mm, suitable for rotating application which requires a through hole ≤50mm, it’s required to be easily mounted on the shaft, this model supports 1-72 rings, it can transmit power ring 10A ~20A/ring and signal 5A/ring, IP rating can be to IP68.   We understand that every sealed application is unique, if standard models can not meet your demand, a tailored solutions will be offered according to your specific needs to ensure that our slip rings perfectly fit your system, please send your requirements on line or contact us at info@beyotrans.com for assistance.

Quanlity level Product level code Lifespan
Common Quality CQ 20 million revolutions
High Quality HQ 50 million revolutions
Super Quality SQ 80 million revolutions
  • Number of rings, support up to 300 rings
  • Optional for flange mounting
  • Position of wire outlet, wire length
  • ID, OD, Height can be customized if structure limitation
  • Aviation plug, terminal and heat-shrink tube are optional.
  • High temperature can up to 500 degrees.
  • High voltage can up to 110KV
  • Rotating speed can up to 15,000RPM
  • High current up to 5000 amperes.
  • Protection level (dust and water)
  • Optional for housing or structure material
  • Support mixed high speed data transmission(including Ethernet, USB, Profibus, Ethercat, CANOPEN, CANBUS, RS232, RS485, etc.)
  • RF/FORJ/Hybrid Pneumatic rotary union/hydraulic rotary union and electric slip ring can be mixed.
  • Cable reels
  • Packaging
  • Rotary table
  • Wind turbine
  • Machine tools
  • Capping machines
  • Labeling machines
  • Automatic machines
  • Converting machines
  • Exhibit / display equipment
  • Medical,Pharmaceutical equipment
  • Robotics, rotary sensors, urgent illumination equipment
Rigns# 1 2 3 4 5 6 7 8 9 10 11 12
Color RED YEL BLK BLU GRN WHT PUP GRY BRN ORN DBLU KHK

Note: 12 wires for 1 group color, from 13-24, repeat the same color as 1 to 12, or indicated by number code pipe.
