Electrical Data
	Power	Signal
Rated Current	10A/15A/20A/ring	5A/ring
Rated Voltage	0~380VAC/VDC	0~240VAC/VDC
Insulation Resistance	≥1000MΩ/500VDC	≥500MΩ/500VDC
Dielectric Strength	1000VAC@50Hz,60s	500VAC@50Hz,60s
Wire Size	Sliver plated Teflon AWG16 (10A) Sliver plated Teflon AWG14(15A/20A)	Sliver plated Teflon AWG22(5A)
Mechanical Data
Wire Length	Standard 500mm (adjustable)
Dynamic Resistance	＜0.01Ω
Max. Speed	0-250 rpm
Working Temperature	-20℃~+80℃
Working Humidity	0-85% RH
Structure Material	Metal
Contact material	Precious metal/silver plated/gold plated
Protection level	IP65~IP68

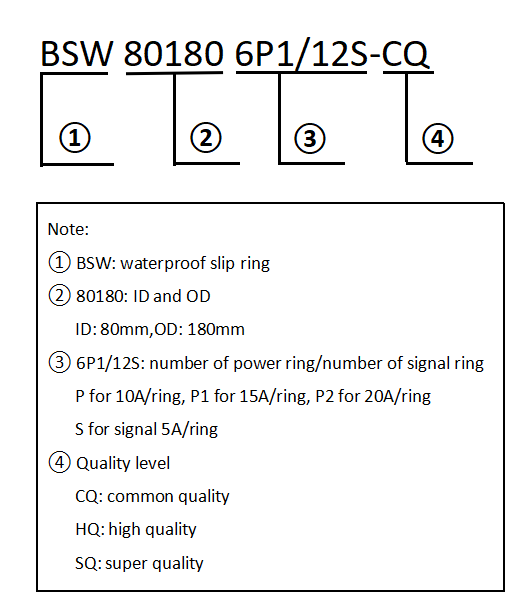

  Model list

Model	Power 10A~20A	Signal5A	L(mm)	Model	Power 10A~20A	Signal 5A	L(mm)
BSW80180-6P	6	–	105	BSW80180-24P/24S	24	24	255
BSW80180-12S	–	12	105	BSW80180-18P/36S	18	36	255
BSW80180-12P	12	–	135	BSW80180-12P/48S	12	48	255
BSW80180-6P/12S	6	12	135	BSW80180-6P/60S	6	60	255
BSW80180-24S	–	24	135	BSW80180-72S	–	72	255
BSW80180-18P	18	–	165	BSW80180-42P	42	–	285
BSW80180-12P/12S	12	12	165	BSW80180-36P/12S	36	12	285
BSW80180-6P/24S	6	24	165	BSW80180-30P/24S	30	24	285
BSW80180-36S	–	36	165	BSW80180-24P/36S	24	36	285
BSW80180-24P	24	–	195	BSW80180-18P/48S	18	48	285
BSW80180-18P/12S	18	12	195	BSW80180-12P/60S	12	60	285
BSW80180-12P/24S	12	24	195	BSW80180-6P/72S	6	72	285
BSW80180-6P/36S	6	36	195	BSW80180-84S	–	84	285
BSW80180-48S	–	48	195	BSW80180-48P	48	–	315
BSW80180-30P	30	–	225	BSW80180-42P/12S	42	12	315
BSW80180-24P/12S	24	12	225	BSW80180-36P/24S	36	24	315
BSW80180-18P/24S	18	24	225	BSW80180-30P/36S	30	36	315
BSW80180-12P/36S	12	36	225	BSW80180-24P/48S	24	48	315
BSW80180-6P/48S	6	48	225	BSW80180-18P/60S	18	60	315
BSW80180-60S	–	60	225	BSW80180-12P/72S	12	72	315
BSW80180-36P	36	–	255	BSW80180-6P/84S	6	84	315
BSW80180-30P/12S	30	12	255	BSW80180-96S	–	96	315

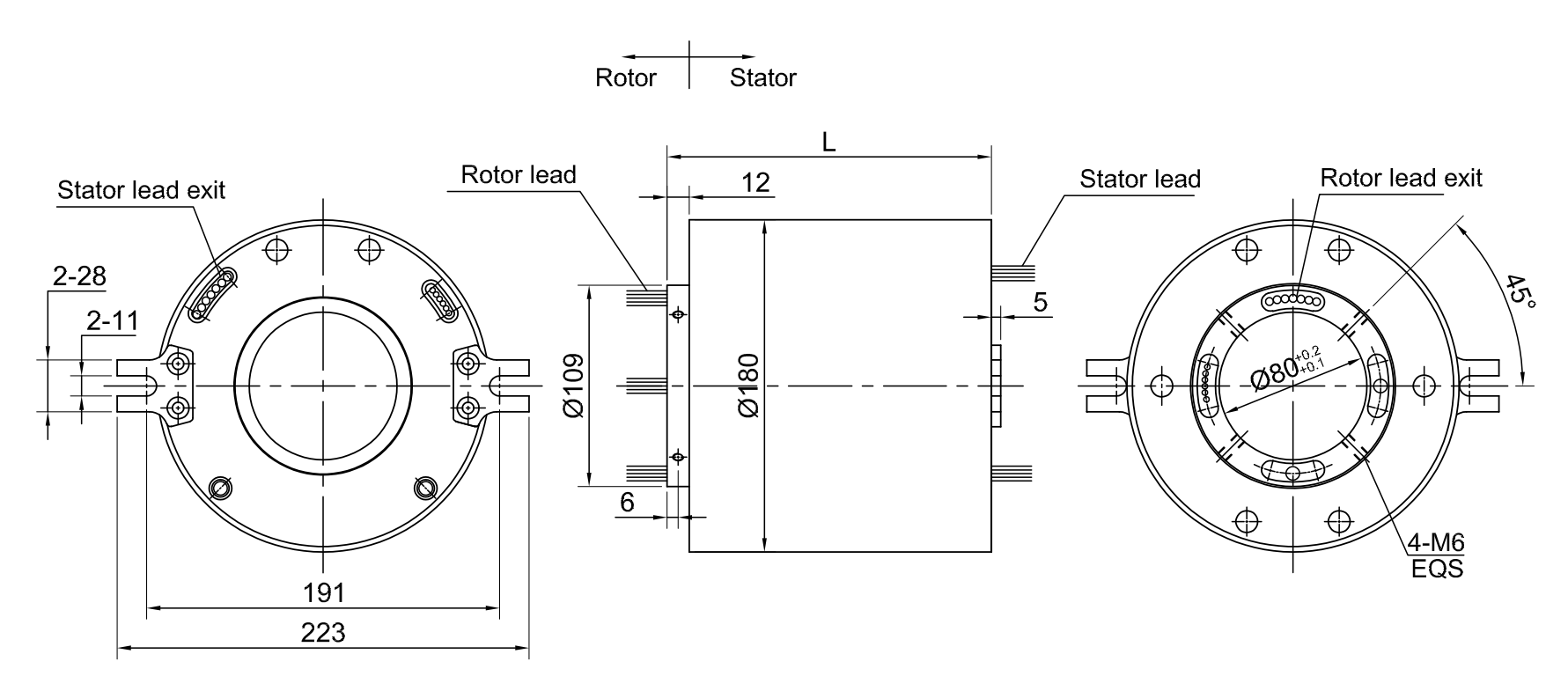

BSW Series is designed for specialized waterproof slip rings. Model BSW80180 is a hollow slip ring provides 80mm through hole with OD 180 mm, suitable for rotating application which requires a through hole ≤80mm, it’s required to be easily mounted on the shaft, this model supports 1-96 rings, it can transmit power ring 10A ~20A/ring and signal 5A/ring, IP rating can be to IP68. We understand that every sealed application is unique, if standard models can not meet your demand, a tailored solutions will be offered according to your specific needs to ensure that our slip rings perfectly fit your system, please send your requirements on line or contact us at info@beyotrans.com for assistance.

Quanlity level	Product level code	Lifespan
Common Quality	CQ	20 million revolutions
High Quality	HQ	50 million revolutions
Super Quality	SQ	80 million revolutions

• Number of rings, support up to 300 rings
• Optional for flange mounting
• Position of wire outlet, wire length
• ID, OD, Height can be customized if structure limitation
• Aviation plug, terminal and heat-shrink tube are optional.
• High temperature can up to 500 degrees.
• High voltage can up to 110KV
• Rotating speed can up to 15,000RPM
• High current up to 5000 amperes.
• Protection level (dust and water)
• Optional for housing or structure material
• Support mixed high speed data transmission(including Ethernet, USB, Profibus, Ethercat, CANOPEN, CANBUS, RS232, RS485, etc.)
• RF/FORJ/Hybrid Pneumatic rotary union/hydraulic rotary union and electric slip ring can be mixed.

• Cable reels
• Packaging
• Rotary table
• Wind turbine
• Machine tools
• Capping machines
• Labeling machines
• Automatic machines
• Converting machines
• Exhibit / display equipment
• Medical,Pharmaceutical equipment
• Robotics, rotary sensors, urgent illumination equipment

Rigns#	1	2	3	4	5	6	7	8	9	10	11	12
Color	RED	YEL	BLK	BLU	GRN	WHT	PUP	GRY	BRN	ORN	DBLU	KHK

Note: 12 wires for 1 group color, from 13-24, repeat the same color as 1 to 12, or indicated by number code
