Electrical Data			Mechanical Data
	Power	Signal	Inner Diameter	50mm
Rated Current	10A	5A	Max. Speed	0-100 rpm
Rated Voltage	0~440VAC/VDC	0~440VAC/VDC	Working Temperature	-30℃~+80℃
Insulation Resistance	≥1000MΩ/500VDC	≥1000MΩ/500VDC	Working Humidity	0-85% RH
Dielectric Strength	500VAC@50Hz,60s	500VAC@50Hz,60s	Structure Material	Insulating plate
Wire Length	Standard 250mm(adjustable)		Contact material	Precious metal
Dynamic Resistance	＜0.01Ω		Protection level	IP00

  Model list

Model	Power 10A/ring	Signal 5A/ring	ID(mm)	OD(mm)	Height(mm)
PCB050A-6S	0	6	50	110	6
PCB050A-2P/4S	2	4	50	110	6
PCB050A-3P/3S	3	3	50	110	6
PCB050A-4P/2S	4	2	50	110	6
PCB050A-6P	6	0	50	110	6
PCB050A-12S	0	12	50	110	6
PCB050B-2P/10S	2	10	50	150	6
PCB050B-4P/8S	4	8	50	150	6
PCB050B-6P/6S	6	6	50	150	6
PCB050B-8P/4S	8	4	50	150	6
PCB050B-10P/2S	10	2	50	150	6
PCB050B-12P	12	0	50	150	6

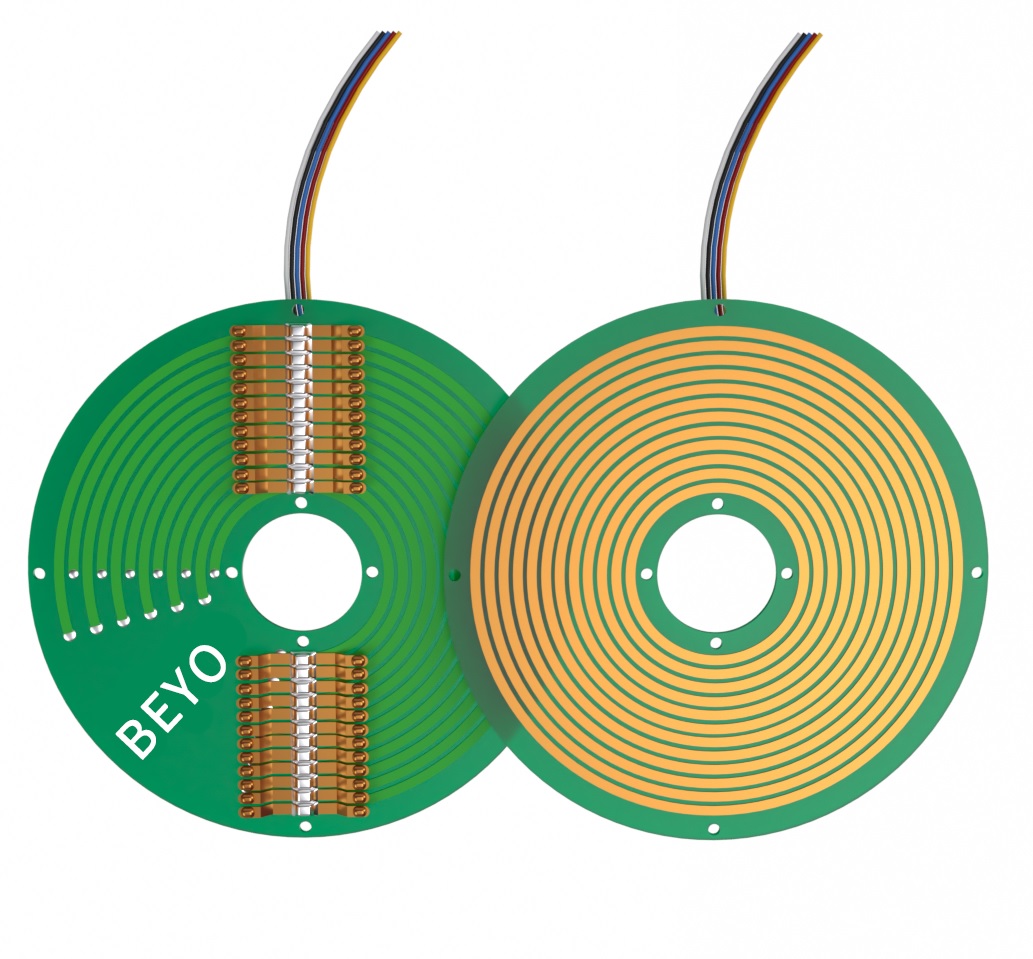

The model of PCB050 is a PCB slip ring with through hole 50mm and 6mm thickness, suitable for rotating application which requires power ans signal transmission through a hole ≤50mm. BEYO TRANSFER applies noble precious metal reduced noises and interference between rings, low friction torque assures long life-span, our standard model supports 1-12rings signal(0~10A/ring),color coded wires on both stator and rotor side.

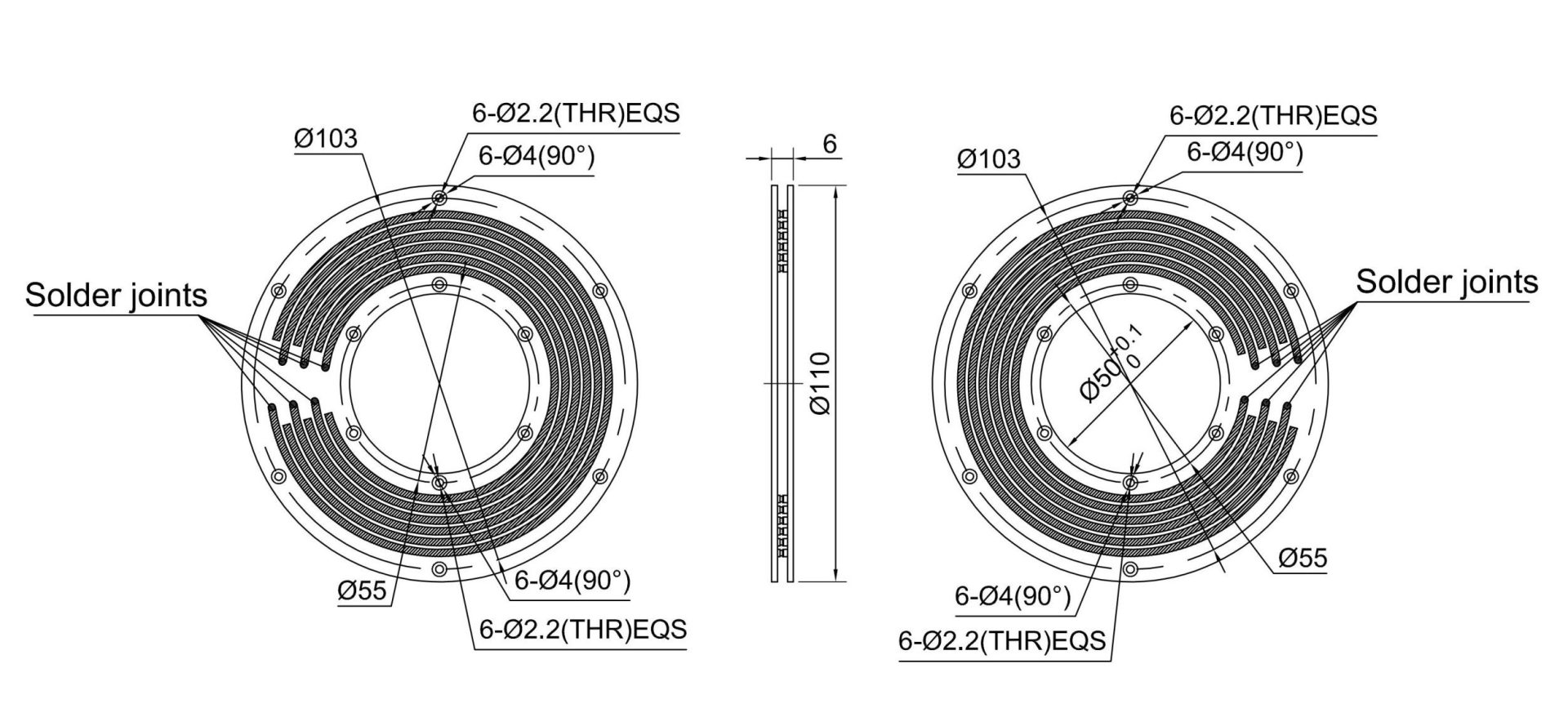

Drawing for PCB050A:

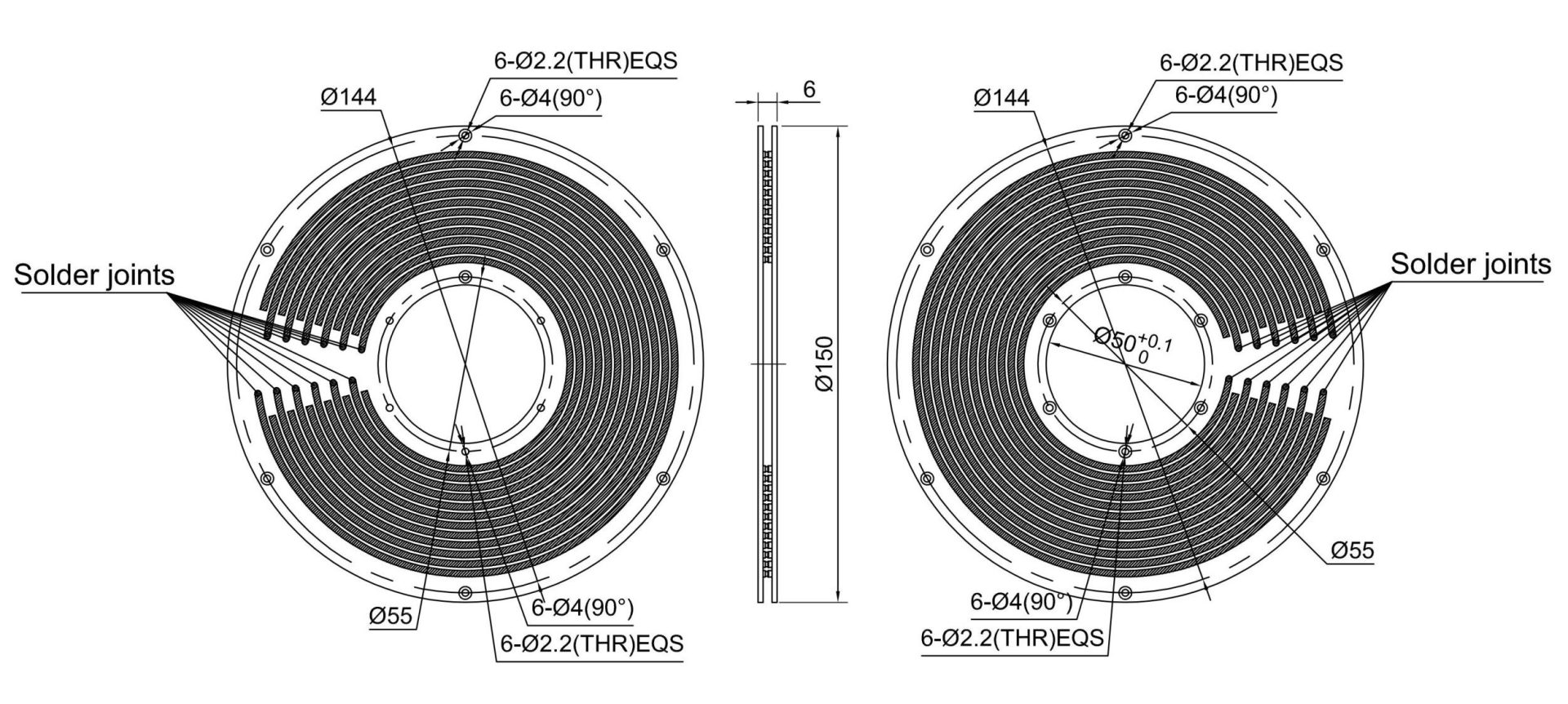

Drawing for PCB050B:

• Number of rings, support up to 300 rings
• Optional for flange mounting
• Position of wire outlet, wire length
• ID, OD, Height can be customized if structure limitation
• Aviation plug, terminal and heat-shrink tube are optional.
• High temperature can up to 500 degrees.
• High pressure can up to 110KV
• Rotating speed can up to 15,000RPM
• High current up to 5000 amperes.
• Protection level (dust and water)
• Optional for housing or structure material
• Support mixed high speed data transmission(including Ethernet, USB, Profibus, Ethercat, CANOPEN, CANBUS, RS232, RS485, etc.)
• RF/FORJ/Hybrid Pneumatic rotary union/hydraulic rotary union and electric slip ring can be mixed.

• Crane
• Cable reels
• Packaging
• Rotary table
• Wind turbine
• Machine tools
• Filling machine
• Capping machines
• Labeling machines
• Automatic machines
• Converting machines
• Exhibit / display equipment
• Medical,Pharmaceutical equipment
• Robotics, rotary sensors, urgent illumination equipment

Rings#	1	2	3	4	5	6	7	8	9	10	11	12
Color	RED	YEL	BLK	BLU	GRN	WHT	PUP	GRY	BRN	ORN	DBLU	KHK

Note: 12 wires for 1 group color, from 13-24, repeat the same color as 1 to 12, or indicated by number code pipe.
