A separate slip ring is a device to transmit electrical signals and power from a across a rotating interface. It is commonly used in 360 degree rotating transmit power and signal from station part to rotating parts. The separate slip ring consists of a stationary and a rotating ring that contact each other with brushes or rollers connected to the stationary ring. The rotating ring conducts electrical signals and power from the stationary ring to the assembly mounted on it, thus ensuring uninterrupted connectivity between stationary and rotating parts.

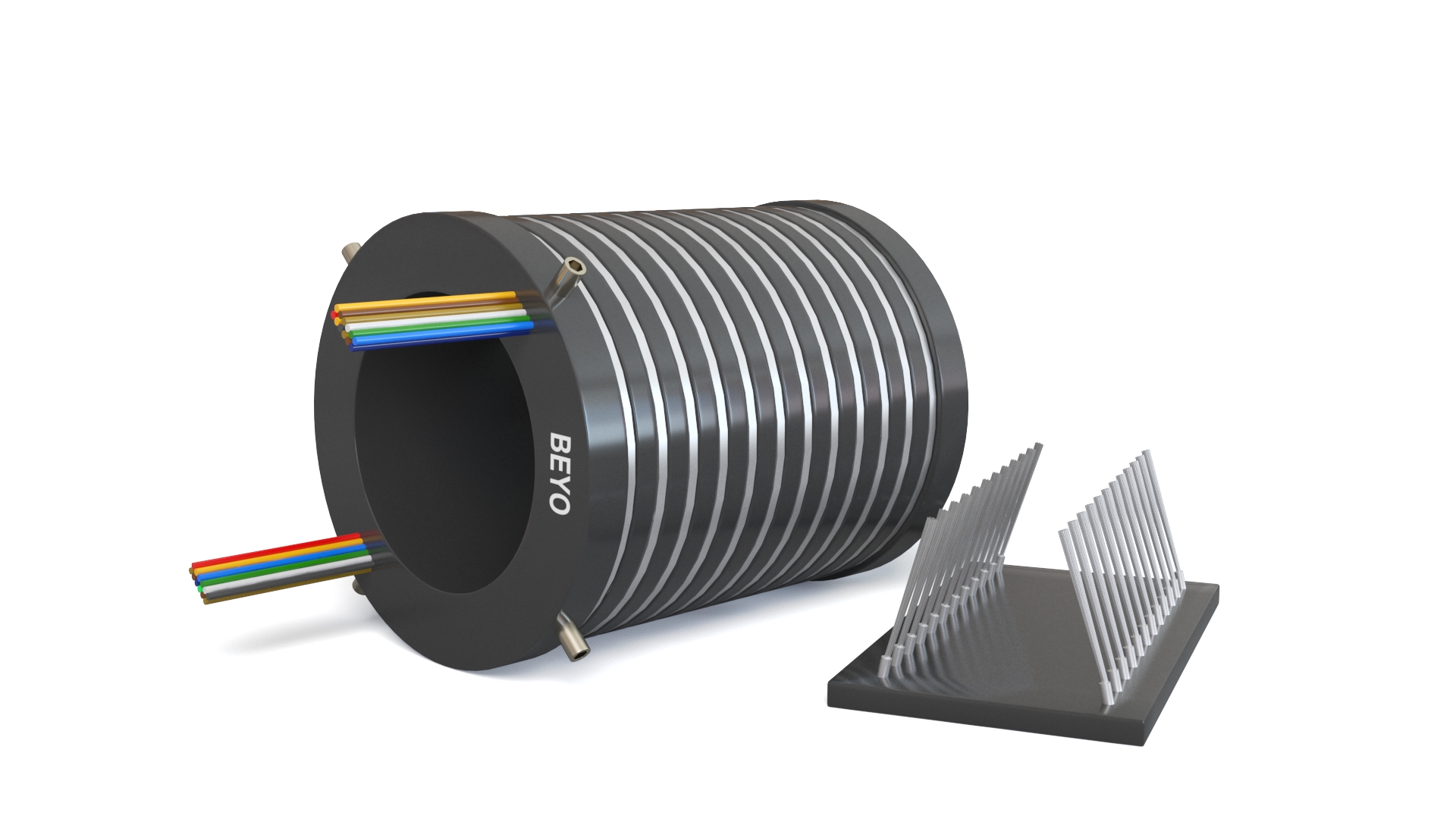

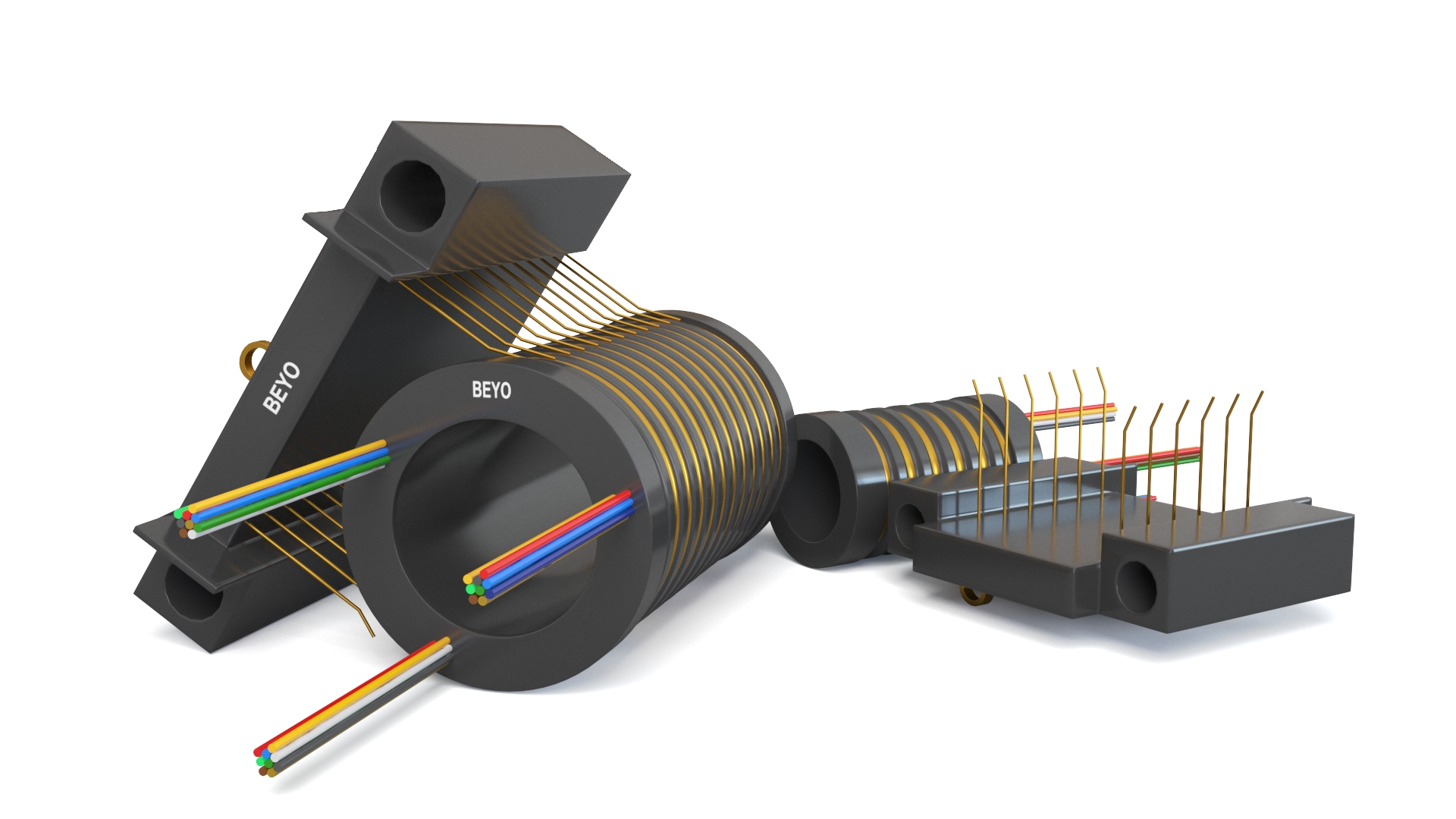

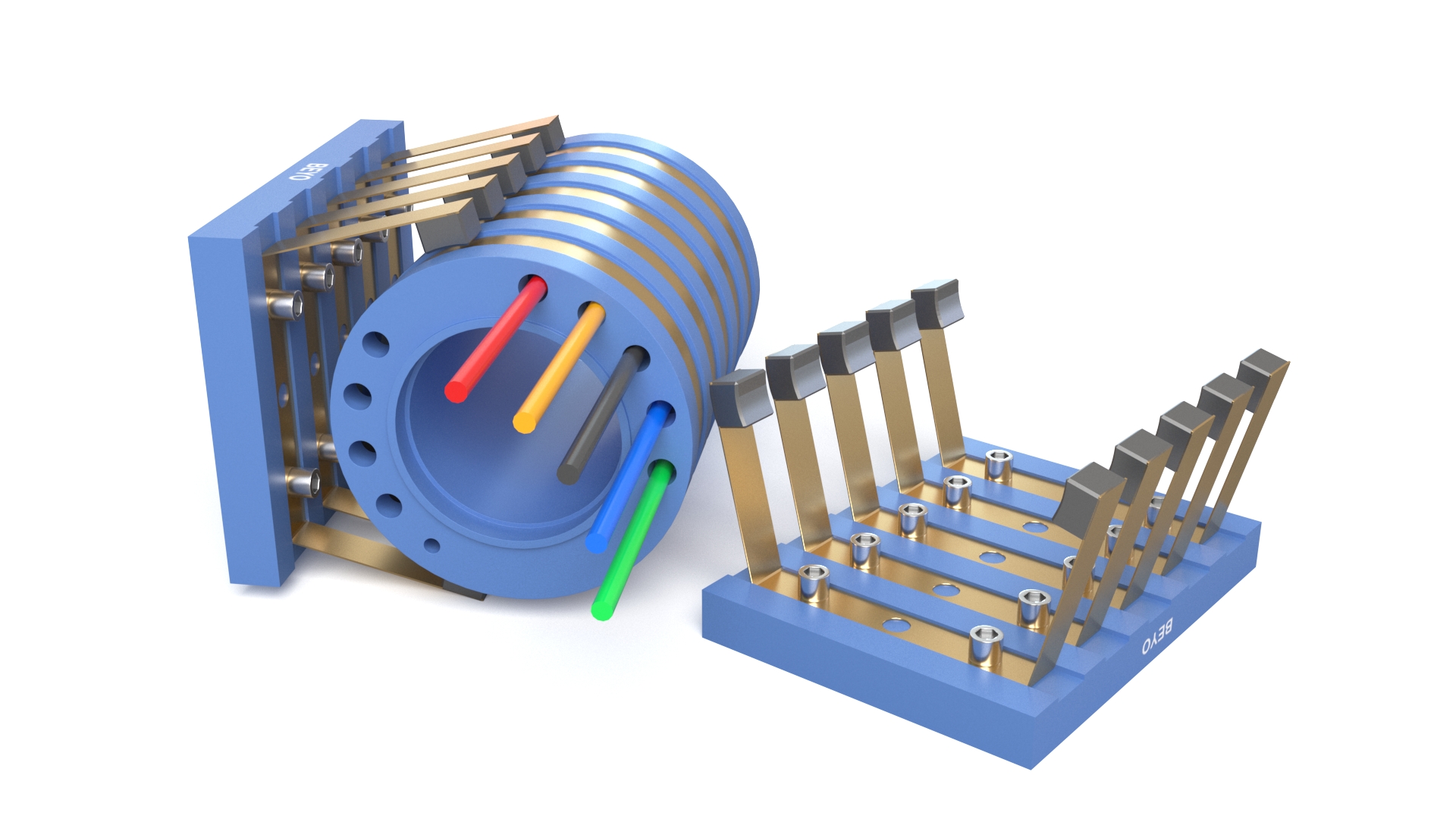

BEYO TRANSFER’S separate slip ring consists of a rotor and a brush stator. With a through hole in the rotor, this slip ring model is compatible with air rotary union,pneumatic rotary union, waveguide rotary joint and fiber optic rotary joint. Because of its separate design, separate slip ring is able to meet harsh requirements demanded by limited space and special installation in the customer’s application. To meet different applications BEYO TRANSFER offers gold to gold single pin contact material, silver plated to silver plated multi point fiber brushes contact material, gold to gold plated multi point fiber brushes contact material for optional.

• Easy to install
• Free maintenance
• Low contact resistance
• Transmit power and/or signal
• Separated stator and rotorfit in limited space
• Stable transmit 1~50channelpower and signal
• gold to goldsingle pin contact material, silver plated to silver plated multi point fiber brushes contact material, gold to gold plated multi point fiber brushes contact material for optional to meet different applications and lifespan.

• Working speed
• Position of wire outlet, wire length
• ID, OD, Height can be customized
• Number of rings, support up to 50 rings
• Support mixed high speed data transmission(including Ethernet, USB, Profibus, Ethercat, CANOPEN, CANBUS, RS232, RS485, etc.)
• RF/FORJ/Hybrid Pneumatic rotary union/hydraulic rotary union and electric slip ring can be mixed

• Instruments
• private UAV
• Aerial camera platform
• Defense and Aerospace
• Communication Systems
• Medical Imaging Systems
• Robotics and Automation
• Testing and Measurement Equipment
• Broadcasting and Audio/Video Equipment
