what is a slip ring?
slip ring is essential component that enable 360 degree continuous rotating transmission of electrical signals and power between stationary and rotating parts, it consists of a stationary and a rotating ring that contact each other with brushes or rollers connected to the stationary ring. The rotating ring conducts electrical signals and power from the stationary ring to the assembly mounted on it, thus ensuring uninterrupted connectivity between stationary and rotating parts.
The primary function of electric slip rings is to transfer electrical signals and power between two or more rotating parts without tangling or damaging wires that run from stationary to rotational parts. The method or mechanism of energy transfer depends on the application of slip rings. For instance, in complex equipment such as robotics, electrical slip rings need to be designed to work with specific voltage, current, frequency, and temperature requirements.

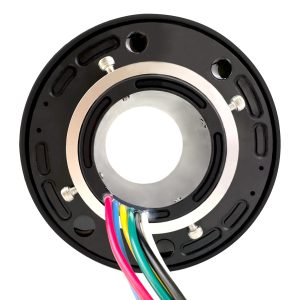

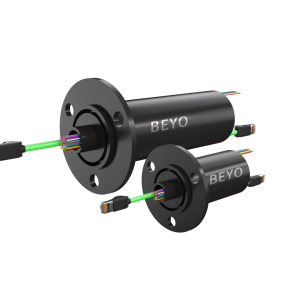

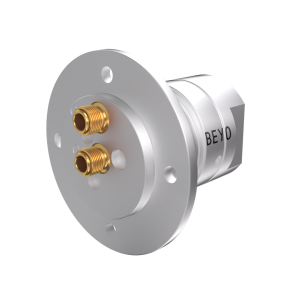

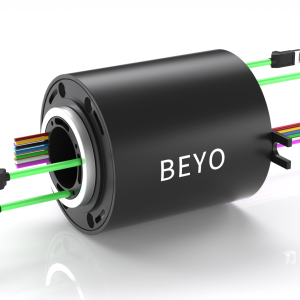

Slip rings are available in various configurations to meet varied application requirements. Some of the common configurations include capsule slip rings, through hole slip rings, pancake slip rings,separate slip rings, fiber optic slip rings, and RF rotary joints. capsule slip rings are ideal where limited space is available because they are tiny but efficient. Pancake or flat slip rings are used where low height is necessary, and also they are some of the most commonly used slip rings. Fiber optic slip rings are used where the transfer of non-electric signals is necessary, while RF rotary joints are used where high-frequency data transmission is a requirement.
The benefits of using slip ring are numerous. Besides delivering uninterrupted power and signal transmission, slip rings eliminate wire tangling, reduce friction, and wear between rotating contacts. Additionally, electric slip rings are easy to install, maintain, and replace when need be.
In conclusion, Electric slip rings play a critical role in various applications, By choosing a right slip ring configuration, Beyo Transfer’s sliprings can improve your system efficiency and prolong your equipment’s lifespan.
